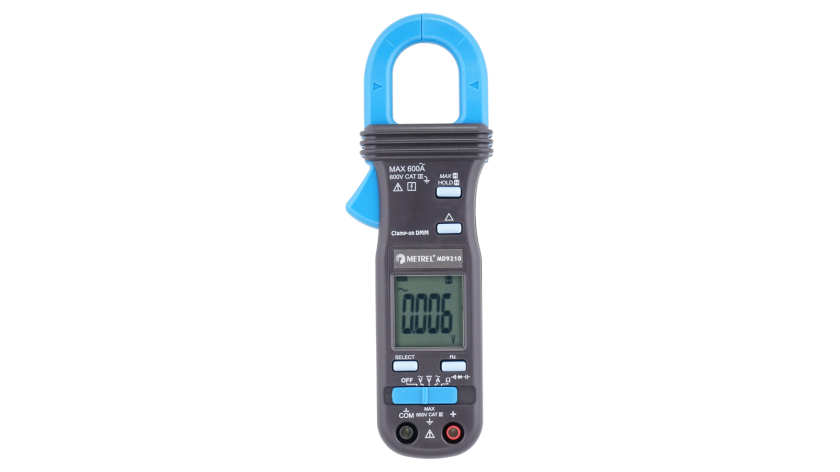

MD 9210 Mini Clamp Meter
Clamp meters
Versatility, sturdy case, high accuracy and lots of measurement functions are key features of the current clamp MD 9210. This universal current clamp offers good value for money.
Do you own this product?
Which is the best for you?

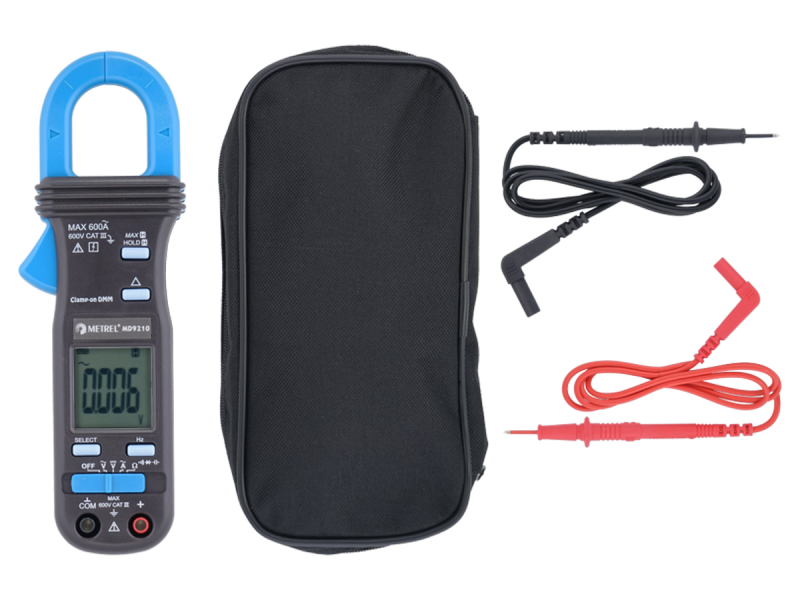

Select a set
- Current clamp MD 9210
- Test lead with probe, 2 pcs
- 3 V battery
- Pouch
- Instruction manual
- Warranty
Standards applied
Instrument safety towards user
- EN 55032 Electromagnetic compatibility of multimedia equipment - Emission requirements
- IEC/EN 61000-3-3 Electromagnetic compatibility (EMC) - Part 3-3 - Limits - Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current ≤ 16 A per phase and not subject to conditional connection
- IEC/EN 61000-4-2 Electromagnetic compatibility (EMC)- Part 4-2: Testing and measurement techniques - Electrostatic discharge immunity test
- IEC 61000-6-5:2015 Electromagnetic compatibility (EMC) - Part 6-5: Generic standards - Immunity for equipment used in power station and substation environment
- The Low Voltage Directive LVD 73/23/EEC Electrical equipment designed for use within certain voltage limits
- Directive EMC 89/336/EE on electromagnetic compatibility
- IEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use - series
- IEC/EN 61010-1 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements
- IEC/EN 61010-2-030 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-030: Particular requirements for equipment having testing or measuring circuits
- IEC/EN 61010-2-032 Safety requirements for electrical equipment for measurement, control and laboratory use - Part 2-032: Particular requirements for hand-held and hand-manipulated current sensors for electrical test and measurement
- IEC/EN 61010-2-033 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-033: Particular requirements for hand-held multimeters and other meters for domestic and professional use, capable of measuring mains voltage
EMC safety
- IEC/EN 61326 Electrical equipment for measurement, control and laboratory use - EMC requirements - series
Properties
Measuring functions
- AC, DC voltage measurement;
- AC current measurement;
- Frequency measurement;
- Resistance measurement;
- Continuity testing;
- Capacitance measurement;
- Diode test.
Key features
- Jaw size: 26 mm.
- Lightweight: 139 g only.
- High specification: readings up to 600 A with excellent accuracy.
- Auto-ranging: no need of manual ranging.
- Relative zero mode: relative function for comparing the difference between signals or removing background noise.
- Data Hold: data hold feature freezes the display for later view.
- MAX Hold: MAX hold feature freezes the maximum measured value.
- Easy to read: large bright 3-3/4 digits 4000 counts LCD display.
Technical data
- Dimensions (w x h x l): 63 x 32 x 190 mm
- Mass (without accessories): 139 g
Applications
Preventative maintenance
- Voltage measurements
- Current measurements
- Frequency measurements
Troubleshooting
- Voltage detection
- Field service
- Electronics
General purpose
- Home maintenance
- Hobby work
Specifications
Downloads
| Datasheet | Language | Version | Release | Notes | Type | Size | Download |
|---|---|---|---|---|---|---|---|
| MD 9210 Mini Clamp Meter | en | 1.0 | 19.01.2011 | 199.69 KB |
|
| Manual | Language | Version | Release | Notes | Type | Size | Download |
|---|---|---|---|---|---|---|---|
| MD 9210 Mini Clamp Meter | Multi-Language | 1.3.4 | 09.09.2022 | 20 751 290 | 2.14 MB |
Login
|
| DoC | Language | Version | Release | Notes | Type | Size | Download |
|---|---|---|---|---|---|---|---|
| EU Declaration of Conformity | Multi-Language | 06.07.2023 | QR code | External link | Unknown |
|
