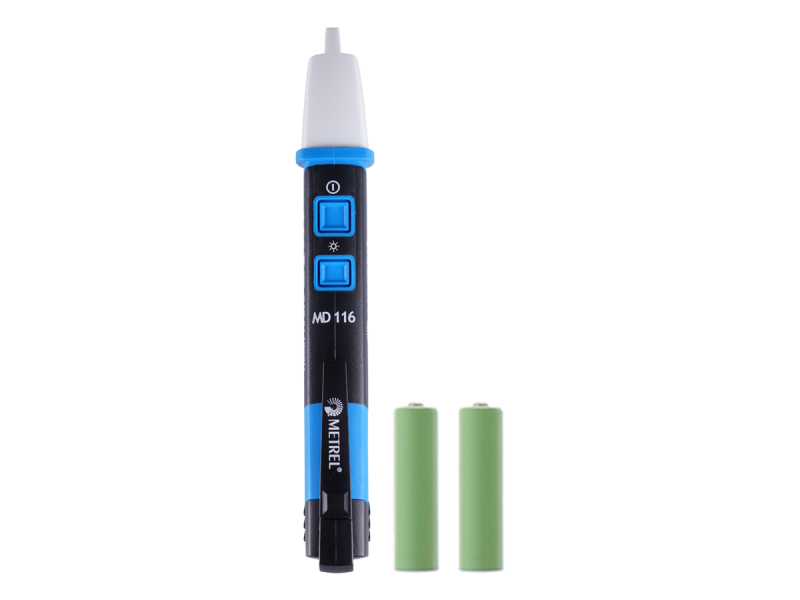

MD 116 Non Contact Voltage Detector Featured
Non contact voltage detectors
The MD 116 is a non-contact voltage tester that features an optical, acoustical and a vibrating indicator. It comes complete with a pocket clip. It is easy to operate and is an essential tool for both home handymen and professionals. The MD 116 can detect live-voltage wires in splices, cable plugs, cable drums, sockets, switches and junction boxes. The operation of the MD 116 is self-tested automatically after power up. No extra button required. It supports switching between low and high sensitivity (12 / 90 V AC) and has an integrated LED flashlight for working in dark conditions. The Metrel MD 116 uses a capacitive measuring process. In contrast to inductive measurements, no flow of current is required.
Sets
Applications
Troubleshooting
- Installation troubleshooting
- Voltage detection
- Field service
Specifications
Downloads
Download | File | Language | Version | Release | Notes | Type | Size | View | Download |
---|---|---|---|---|---|---|---|---|---|
Datasheet | MD 116 Non Contact Voltage Detector | en | 1.0 | 09.09.2015 | 132.99 KB | ||||
Manual | MD 116 Non Contact Voltage Detector | Multi-Language | 1.0 | 09.09.2015 | 20 752 486 | 448.98 KB | Login |
