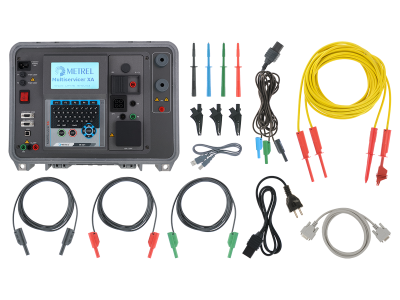

MI 3321 MultiservicerXA

Machine and switchboard testers

Multifunctional portable test instrument MI 3321 MultiServicerXA is intended to perform all necessary measurements for testing the electrical safety of portable electrical equipment, machines and switchgears. It is the first machine tester covering all necessary tests according to new IEC/EN 60204 ed.5 including Loop impedance, RCD and HV tests. MultiServicerXA enables measurement of discharge time, power and current consumption and resistance to excessive voltages which are the main parameters in the safety testing of hard wired appliances and large machinery. With an easy to use user interface, large graphic LCD, QWERTY keyboard, help menus with connection diagrams and extra ports for testing fixed installations the MI 3321 is the best solution for safety testing.

Sets

Standards applied

Building LV Installation

  • IEC/EN 61008-1 Residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs)
  • IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
  • IEC/EN 61557-1 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 1: General requirements
  • IEC/EN 61557-2 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 2: Insulation resistance
  • IEC/EN 61557-3 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 3: Loop impedance
  • IEC/EN 61557-6 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 6: Effectiveness of residual current devices (RCD) in TT, TN and IT systems
  • IEC/EN 61557-7 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 7: Phase sequence

Earthing and lightning protection

  • IEC/EN 61557-4 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 4: Resistance of earth connection and equipotential bonding

Electrical switchboards safety

  • ESB Competences: Electrical Switchboards Safety Testing
  • IEC/EN 61439-1 Low-voltage switchgear and controlgear assemblies - Part 1: General rules

Machine safety

  • MST Competences: Machines Electrical Safety Testing
  • IEC/EN 50191 Erection and operation of electrical test equipment
  • IEC/EN 60204-1 Safety of machinery - Electrical equipment of machines - Part 1: General requirements
  • IEC/EN 60950 Information technology equipment – Safety

Portable appliances safety

  • PAT Competences: Portable Appliances Safety Testing
  • AWE Competences: Arc Welding Equipment Safety Testing
  • IEC/EN 50144-1 Safety of hand-held electric motor operated tools - Part 1: General requirements
  • IEC/EN 60335-1 Household and similar electrical appliances - Safety
  • IEC/EN 60598-1 Luminaires - Part 1: General requirements and tests
  • VDE 0404-1 Testing and measuring equipment for checking the electric safety of electric devices - Part 1: General requirements
  • VDE 0404-2 Testing and measuring equipment for checking the electric safety of electric devices - Part 2: testing equipment for tests after repair, change or in the case of repeat tests
  • VDE 0701 Inspection after repair, modification of electrical appliances - periodic
  • VDE 0702 Inspection on electrical appliances - general requirements for electrical safety

Instrument safety towards user

  • IEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use - series
  • IEC/EN 61010-2-030 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-030: Particular requirements for equipment having testing or measuring circuits

Properties

Measuring functions

  • Continuity tests (200 mA, 10 A);
  • Insulation resistance;
  • Withstanding voltage tests (1000 V, 1890 V, 2200 V);
  • Substitute leakage current;
  • Differential leakage current;
  • Touch leakage current;
  • IEC cord polarity test;
  • Leakage and load TRMS current measurement with current clamp;
  • Portable RCD testing;
  • RCD testing;
  • Line and loop impedance;
  • High resolution line / loop impedance (mΩ).
  • Discharge time;
  • Three phase voltage / rotary field;
  • Functional test.

Key features

  • 3 in 1: instrument performs testing of portable appliances (acc. to VDE 0701 0702), machines (acc. to IEC/EN 60204 Ed.5) and switchgears (acc. to IEC/ EN 60439 and the new IEC 61439) including functional and leakage tests for DUTs with nominal power up to 3.5 kW.
  • Multi-tasking: up to 18 different measurements can be performed either as a single test or pre-programmed test sequences (PAT mode).
  • Automated: automatic testing and PASS / FAIL evaluation of test results according to appropriate standard.
  • Project uploading: previous test data can be uploaded for fast retesting of the object.
  • Scan and test: optional barcoding system and PASS / FAIL barcode label printing make retesting quick and simple.
  • RFID: support for advanced RFID identification system.
  • User friendly: large LCD screen, full QWERTY keyboard, help screens and warnings make the instrument an extremely easy to use.
  • Fixed appliance tests: ports, leads and optional accessories fully support the testing of fixed machines and appliances while normal socket supports plug-in machines and appliances testing.
  • RCD testing: instrument enables testing of parameters of RCDs and portable RCDs.
  • Clamp leakage current measurement: quick measurement of leakage current with current clamps directly on power supply cable without disconnection of appliance from mains.
  • Discharge time test: testing of how long it takes for the machine discharge after power is removed.
  • Withstanding voltage test: instrument performs 2500 VAC, 1890 VAC and 1000 VAC withstanding voltage tests with settable current limit.
  • Trend functionality: test results can be uploaded from PC to the instrument for comparison between old and new test results onsite.
  • Downloadable: up to 6000 test results with measuring parameters can be stored in two level memory and downloaded to the PC with the help of PC SW PATLink PRO.
  • PC SW PATLink PRO included in the standard set enables downloading, viewing, printing of test results and exporting of data to spreadsheet applications.
  • PC SW PATLink PRO Plus enables advanced analysis of test results, upload of structures and data upload to the instrument for on-site comparison of old and new results, upload of pre-programmed custom autosequences and creation of professional test reports.

Technical data

  • Dimensions (w x h x l): 345 x 160 x 335 mm
  • Mass (without accessories): 8.4 kg

Applications

Low voltage electrical installation safety

  • Switchboards and automatic trip-out protection

Appliance and machine safety

  • Machines and fixed connected loads safety

Preventative maintenance

  • Safety of portable appliances
