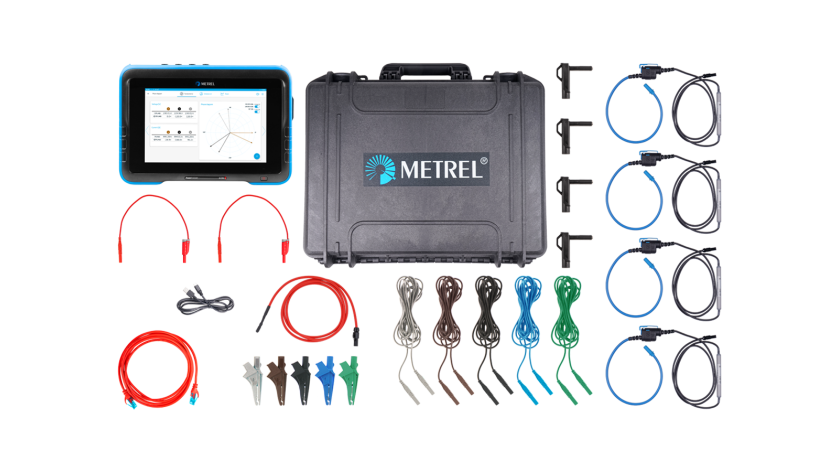

MI 2992 Advanced set
Sets
- Instrument MI 2992 Power Analyser
- 4x A 1502 Mini current clamp-flexible 30/300/3000 A, Dia=140 mm
- 4x A 1778 Test probe, Black - Magnet tip
- A 1297 Crocodile clip, Brown
- A 1013 Crocodile clip, Black
- A 1547 Crocodile clip, Grey
- A 1309 Crocodile clip, Green
- A 1310 Crocodile clip, Blue
- A 1459 2M Test lead, BLK/BLU/GRN/BRN/GRY, 2m, 0.75mm2
- A 1354 Temperature probe
- 2x A 1811 Test lead, Red, 0.4m, 0.75mm2 - CAT IV
- A 1851 Power cable, Type C/2x banana connector
- A 1812 USB cable type C/A
- A 1767 UTP CAT5 ethernet cable
- A 1776 Hard case, Size M for MI 2992
- PC SW 0803 MPVision
- Instruction manual
- Calibration certificate
Do you own this product?
Optional accessories

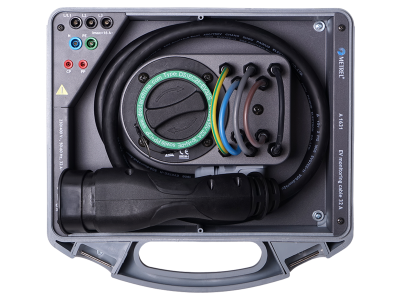

A 1631 EV monitoring cable
The A 1631 EV monitoring cable is a special accessory designed for CP signal, current and voltage monitoring during Electric Vehicle (EV) charging process in conjunction with supported Metrel testers and adapters. It is equipped with a Type 2 female plug connector to connect to an EV and a Type 2 male socket outlet for connecting to Electrical Vehicle Supply Equipment (EVSE).
A 1037 Current transformer 5 A / 1 V
3-phase transformer for power measurements on distribution panels with 5 A nominal output current.
A 1281 Current clamp 0,5/5/100/1000 A / 1 V
Four ranges current clamp for measuring alternating currents in low and medium power installations. Current clamp is automatically recognized by the instrument. Clamp does not require external power supply as it is powered by the instrument.
A 1355 GPS receiver
GPS Synchronization unit for ensuring exact date & time, which guaranties that the time clock uncertainty of the Metrel power quality analyzers does not exceed ±10 ms for 50 Hz signals, according to IEC 61000-4-30.
S 2015 Safety flat clamp, 4 pcs
Safety flat clamps assure good contact when connecting the test leads on busbars and other larger flat surfaces.
A 1227 1-phase flexible current clamp 3000/300/30 A / 1 V
Single phase smart flexible current clamp (Rogowski coil) with three selectable measuring ranges Sensor length: 48 cm; max. conductor size: 140 mm. Current clamp is automatically recognized by the instrument. Clamp does not require external power supply as it is powered by the measuring instrument.
A 1446 1-phase flexible current clamp 6000/600/60 A / 1 V
Single phase smart flexible current clamp (Rogowski coil) with three selectable measuring ranges Sensor length: 90 cm; max. conductor size: 270 mm. Current clamp is automatically recognized by the instrument. Clamp does not require external power supply as it is powered by the measuring instrument.
A 1354 Temperature probe
Temperature probe can be used for monitoring and recording of temperature trend at measuring objects, such as capacitors, motors, transformers, etc.
A 1501 1-phase mini flexible current clamp (Rogowski coil) 3000/300/30 A / 1V
Single phase flexible current clamp (Rogowski coil) with three selectable measuring ranges (sensor length - 25 cm, max. conductor diameter - 7 cm). Does not require external power supply as it is powered by the measuring instrument.
A 1502 1-phase mini flexible current clamp 3000/300/30 A / 1V
Single phase flexible current clamp (Rogowski coil) with three selectable measuring ranges (sensor length - 48 cm, max. conductor diameter - 14 cm). Does not require external power supply as it is powered by the measuring instrument.
A 1503 1-phase mini flexible current clamp 6000/600/60 A / 1V
Single phase flexible current clamp (Rogowski coil) with three selectable measuring ranges (sensor length - 90 cm, max. conductor diameter - 27 cm). Does not require external power supply as it is powered by the measuring instrument.
A 1636 Current clamp AC/DC 1500 A
DC current clamp 1500 A; AC current clamp 1500 A with jaw opening 73 mm (ɸ 68 mm) for power measurements (photo voltaic).
A 1717 Current clamp AC/DC 100/1000A / 1V
AC+DC current clamp 100/1000A / 1V with jaw opening 51mm, max. conductor size 52 mm for power measurements (photo voltaic). Battery operated 9V, battery life with 500 mAh approx. 75 hours, 1200mAh approx. 6 1/2 days. Requires A 1561 connection cable.
A 1398 PQA Current clamp 10A / 1V
Highly accurate iron current clamp for current (including leakage current) and power measurements with smart clamp technology (automatic recognition by the analyser), powered by the connected PQA, and designed for measuring alternating currents in low-power installations (up to 20 A).
A 1783 Mini AC current clamps 20/200 A
High accuracy current clamp for precise current and power measurements.
Can be used together with
