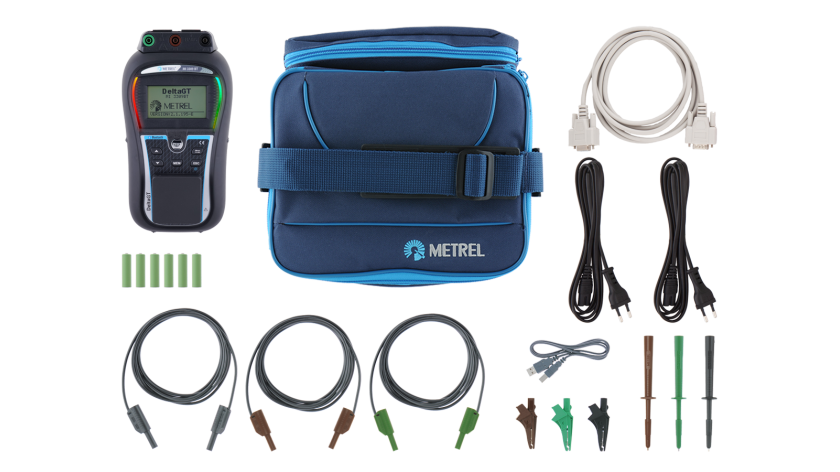

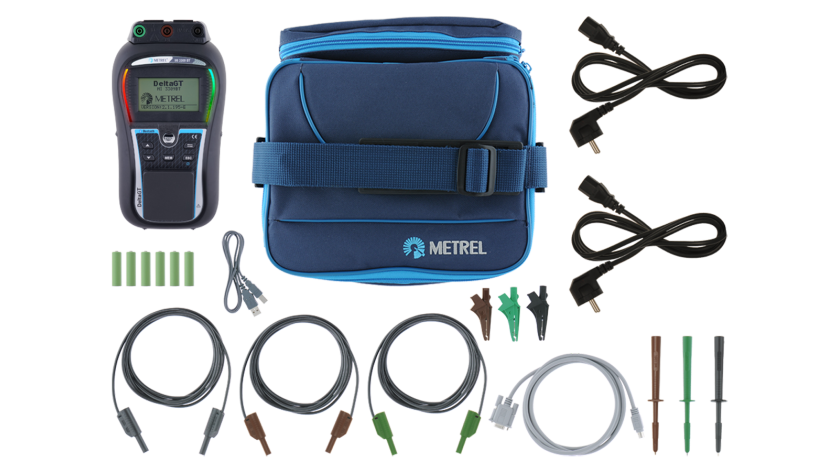

MI 3309 BT Standard set
Sets
- Instrument MI 3309 BT DeltaGT
- 1x A 1289 Soft padded carrying bag Size: M

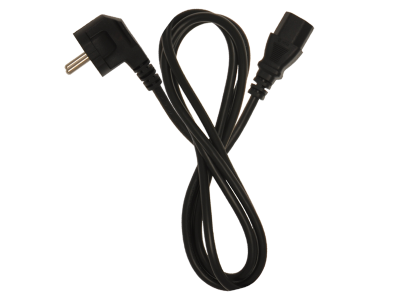

- 2x A 1728 Power cable, 2m, 3x0.75mm2
- 1x A 1327 Test lead, Black, 1.5m, 1.5mm2, NEU
- 1x A 1341 Test lead, Green, 1.5m, 2.5mm2
- 1x A 1342 Test lead, Brown, 1.5m, 2.5mm2
- 1x A 1013 Crocodile clip, Black
- 1x A 1309 Crocodile clip, Green
- 1x A 1297 Crocodile clip, Brown
- 1x A 1014 Test probe, Black
- 1x A 1062 Test probe, Green
- 1x A 1298 Test probe, Brown
- 1x A 1726 RS232/PS-2 adapter
- 1x A 1727 USB cable Type A/B
- 1x S 2080 Battery set, Type AA, 2100mAh - 6 pcs
- Calibration certificate
- Short instruction manual
- Instruction manual*
- Metrel ES Manager BASIC Licence*
- SW 1201 Metrel ES Manager (program installation)*
Do you own this product?
Optional accessories
A 1436 Bluetooth dongle
External Bluetooth adapter for wireless connection between Metrel’s instruments and Smart phones, tablets and PCs.
A 1160 Fast charger for 8 AA batteries with a set of 6 NiMH bat., type AA
Fast battery charger for up to 8 pieces of AA rechargeable batteries, and a set of 6 pcs NiMH rechargeable batteries, type AA.
P 1101 Metrel MESM BASIC to PRO (Licence)
Licence key for upgrading the Metrel ES Manager to advanced version with professional report creation and Excel PRO export functionality.
Please contact your local dealer for more information on how to order the licence key.
A 1169 Fast charger for AA, C, D and 9 V block batteries
Fast battery charger for up to 12 pcs AA, 6 pcs C or D rechargeable batteries, 4 pcs 9 V block batteries.
A 1289 Soft padded carrying bag, Size: M
Large soft carrying bag for transport and storage of test instrument and belonging accessories.
Technical data
- Dimensions: 170 x 250 x 240 mm
A 1298 Test probe, brown
Test probe with fi 4 mm connection is suitable for performing measurements both in mains outlets and in situations when no schuko outlet is present.
A 1062 Test probe, green
Test probe with fi 4 mm connection is suitable for performing measurements both in mains outlets and in situations when no schuko outlet is present.
A 1014 Test probe, black
Test probe with fi 4 mm connection is suitable for performing measurements both in mains outlets and in situations when no schuko outlet is present.
A 1297 Crocodile clip, brown
Crocodile clip assures secure and permanent contact during the measurement on bus bars, fixing screws, etc.
A 1309 Crocodile clip, green
Crocodile clip assures secure and permanent contact during the measurement on bus bars, fixing screws, etc.
A 1013 Crocodile clip, black
Crocodile clip assures secure and permanent contact during the measurement on bus bars, fixing screws, etc.
A 1271 Soft carrying bag, Size: S
Small soft carrying bag for transport and storage of test instrument or accessories.
A 1207 Three phase adapter
The 3-phase adapter for substitute leakage current, insulation resistance and continuity measurements on electric loads equipped with 16A and 32A CEE 3P sockets.
A 1108 RFID tags, self-stick, 25 pcs RFID tags, key tag, 25 pcs
RFID tags sufficient memory space to store test results and tested appliance information.
S 2062 BT label printer set, (mains operated)
Printer supports printing of bar-codes which contain a complete appliance information and PASS or FAIL status of result, or QR codes which contain information of the previous results, the test status, and the previously used test sequence. Printer supports printing of simple labels including PASS or FAIL status of result, Appliance name, ID number, User information and test date.
A 1268 Test probe, brush type, 4 mm
Test probe, brush type, assures good galvanic contact when measuring on revolving parts, flat surfaces, screw connections and similar. Equipped with standard 4 mm connector.
A 1106 Barcode labels, 1000 pcs
Appliances can be marked with barcode labels for easier identification.
A 1305 PC SW PATLink PRO with USB and RS232-PS/2 cable
PC Software PATLink PRO enables downloading, data management and printing of test reports. Comes delivered with RS232-PS/2 and USB communication cables.
A 1337 RFID tags, self-stich 50 pcs
RFID tags have sufficient memory space to store test results and tested appliance information.
A 1434 aPATLink Android (Licence)
Enables fast and simple data management of tested appliances, as well as a quick overview of already performed tests by simply scanning a QR code.
A 1488 BT Able printer, (battery or mains operated)
Printer supports printing of bar-codes which contain a complete appliance information and PASS or FAIL status of result, or QR codes which contain information of the previous results, the test status, and the previously used test sequence.
A 1520 Labels for ABLE printer, (250 labels per roll)
Spare label roll for printer A 1488 and 1489, (250 labels per roll)
A 1306 PC SW PATLink PRO Plus with USB and RS232-PS/2 cable
PATLink PRO Plus is an advanced PC SW which enables downloading, test results analysis, data upload to the instrument and professional test report creation. Delivered with RS232 and USB COM cables.
A 1472 Leakage current clamp
Current clamp with high resolution for accurate leakage current measurements.
A 1737 Carrying case
Case with foam inserts with slots for a Eurotest multifunctional electrical installation safety tester and MI 3309 BT DeltaGT. Multiple possible instrument & accessory combinations. We recommend the MI 3110 EurotestIT, MI 3309 DeltaPAT, MD 9231 AC/DC current clamp and A 1207 three phase adapter combination.
Technical data
- Dimensions: 590 x 470 x 270 mm
- Mass: 6.0 kg
S 2138 Set of wheels for carrying cases A 1736, A 1737, A 1738
Wheels and trolley that can be added to carrying cases for easier transport.
