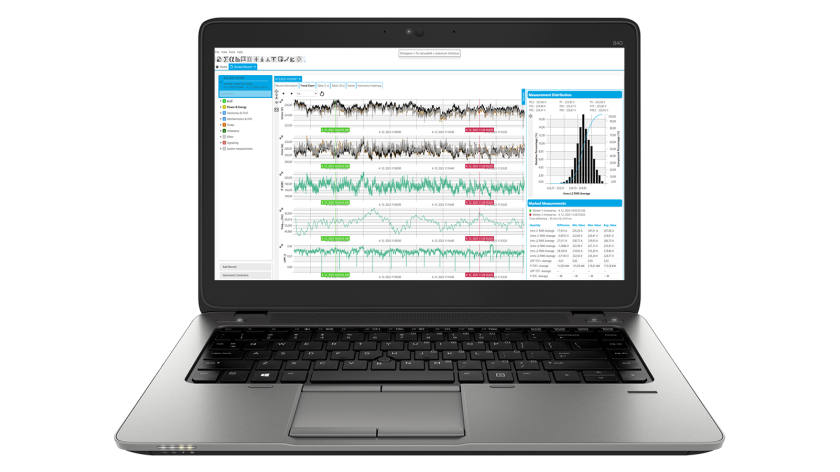

MPVision PC software is a versatile platform for downloading, analyzing recorded data, and generating detailed power quality test reports. It offers a full suite of functionalities for in-depth evaluation of power quality phenomena, data comparison, and creation of complex reports. Designed to work seamlessly with Metrel’s new-generation power quality analyzers, it enables both local and remote data transfer, as well as remote instrument control for maximum flexibility and efficiency.
Properties
Key features
- User-friendly interface: wide range of quick buttons, ability to customize the environment by dragging, docking and resizing the window tabs.
- Structure: downloaded data is organized into a Windows Explorer-like tree structure.
- Views: depending on the selected record type, different views are available (Record Information view, Trend Chart view, Table view, Events view, Harmonics Heatmap view, Reports view etc.)
- EN 50160 analysis: automatic voltage quality analysis in compliance with custom or predefined EN 50160 Power Quality criteria, with quick report printing.
- Chart zoom: charts can be zoomed based on the value range selected in a table.
- Remote control: the instrument and its data can be managed remotely.
- GPS synchronization: simultaneous measurement at different network points by using two or more synchronized instruments.
- On-line monitoring: real-time observation of signals and parameters while the instrument is measuring / recording in the background.
- Export of test results: test results can be filtered and exported to other programs (MS Excel, MS Word, .csv, .txt).
- Reports: automatic generation of test reports from the selected views and data with attached graphs in accordance with specific standards/national specifications, like: EN 50160, IEEE 519, Energy report, Energy demand report, Codigo de RED.
Compatibility
Downloads
| Datasheet | Language | Version | Release | Notes | Type | Size | Download |
|---|---|---|---|---|---|---|---|
| SW 0803 MPVision | en | 2025 | 04.12.2025 | 371.51 KB |
|
| PC Software | Language | Version | Release | Notes | Type | Size | Download |
|---|---|---|---|---|---|---|---|
| SW 0803 MPVision | Multi-Language | 1.0.16.0 | 16.01.2026 | appinstaller | 0.76 KB |
|
