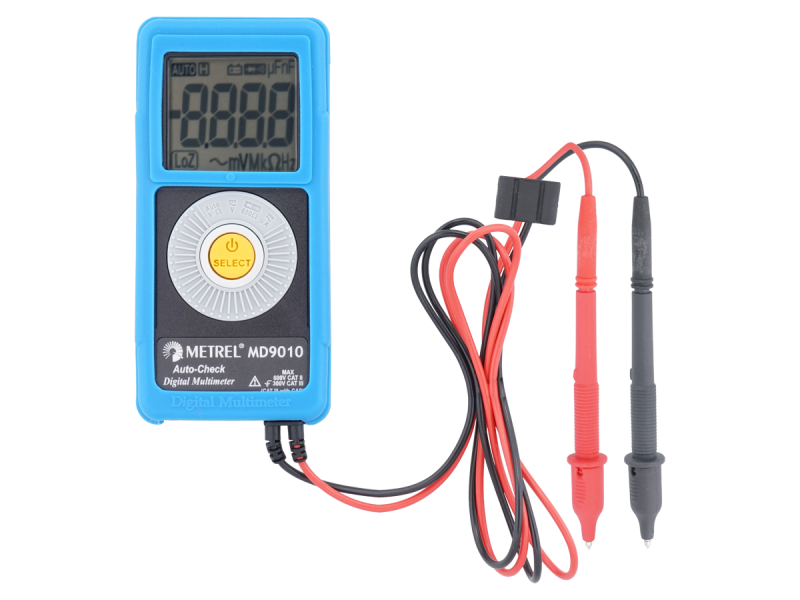

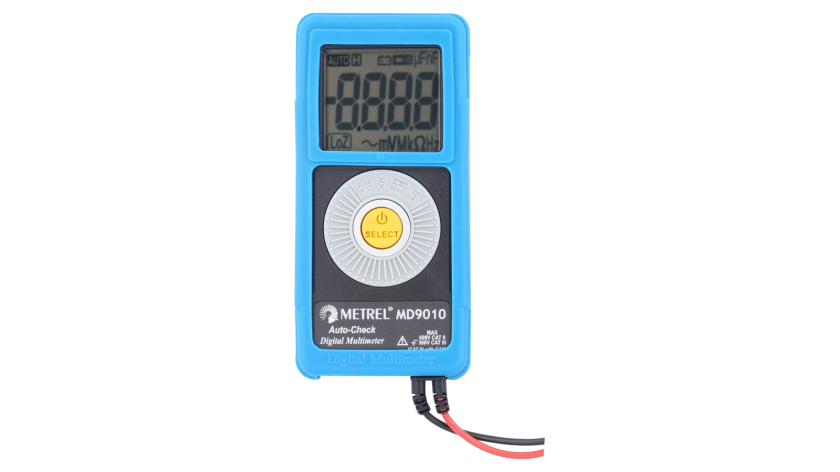

MD 9010 General Purpose Autocheck Digital Multimeter

Digitalni multimetri

Digitalni multimeter MD 9010 je eden naših najmanjših in najlažjih multimetrov ter je uporaben za množico aplikacij. Ponaša se z izjemnim razmerjem med ceno in funkcionalnostjo, ki med drugim vključuje LCD prikazovalnik, autocheck funkcijo ter podporo za brezstično zaznavanje električnega polja.

Seti

Podprti standardi

Instrument safety towards user

  • EN 55032 Electromagnetic compatibility of multimedia equipment - Emission requirements
  • IEC/EN 61000-3-3 Electromagnetic compatibility (EMC) - Part 3-3 - Limits - Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current ≤ 16 A per phase and not subject to conditional connection
  • IEC/EN 61000-4-2 Electromagnetic compatibility (EMC)- Part 4-2: Testing and measurement techniques - Electrostatic discharge immunity test
  • IEC 61000-6-5:2015 Electromagnetic compatibility (EMC) - Part 6-5: Generic standards - Immunity for equipment used in power station and substation environment
  • The Low Voltage Directive LVD 73/23/EEC Electrical equipment designed for use within certain voltage limits
  • Directive EMC 89/336/EE on electromagnetic compatibility
  • IEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use - series
  • IEC/EN 61010-1 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements
  • IEC/EN 61010-031 Amendment 1 - Safety requirements for electrical equipment for measurement, control and laboratory use - Part 031: Safety requirements for hand-held and hand-manipulated probe assemblies for electrical test and measurement
  • IEC/EN 61010-2-032 Safety requirements for electrical equipment for measurement, control and laboratory use - Part 2-032: Particular requirements for hand-held and hand-manipulated current sensors for electrical test and measurement
  • IEC/EN 61010-2-033 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-033: Particular requirements for hand-held multimeters and other meters for domestic and professional use, capable of measuring mains voltage

EMC safety

  • IEC/EN 61326 Electrical equipment for measurement, control and laboratory use - EMC requirements - series

Lastnosti

Merilne funkcije

  • DC in AC merjenje napetosti
  • DC in AC merjenje toka
  • Preskušanje diod
  • Merjenje upornosti
  • Preizkušanje povezav
  • Merjenje frekvence
  • Merjenje kapacitivnosti
  • Zaznavanje napetosti in elektromagnetnega polja brez dotika

Ostale lastnosti

  • Samodejno natavljanje merilnega območja za vse merilne funkcije
  • LCD prikazalnik,3-5/6 znaki, štetje do 6000
  • Samopreverjanje (Autocheck) - samodejno zaznavanje merjenja enosmerne napetosti, izmenične napetosti ali upornosti
  • Brezkontaktno zaznavanje elektromagnetnega polja
  • Zvočni signal pri preizkušanju povezav
  • Zaščita pred napačno priključitvijo
  • Prenapetostna kategorija CAT III/300 V, CAT II/600 V

Tehnični podatki

  • Velikost (Š x V x D): 87 x 35.5 x 186 mm
  • Masa (vključno z gumijastim oprijemalom): 396 g

Specifikacije

Prenosi

Datasheet Jezik Verzija Datum Zapiski Datoteka Velikost Prenos
MD 9010 Digitalni multimeter sl 2019 14.11.2019 pdf 276.57 KB
Manual Jezik Verzija Datum Zapiski Datoteka Velikost Prenos
MD 9010 Digitalmultimeter Multi-Language 2.1.6 09.09.2022 20 751 285 pdf 1.11 MB Prijava
DoC Jezik Verzija Datum Zapiski Datoteka Velikost Prenos
EU Declaration of Conformity Multi-Language 06.07.2023 QR code Zunanja povezava Neznano
