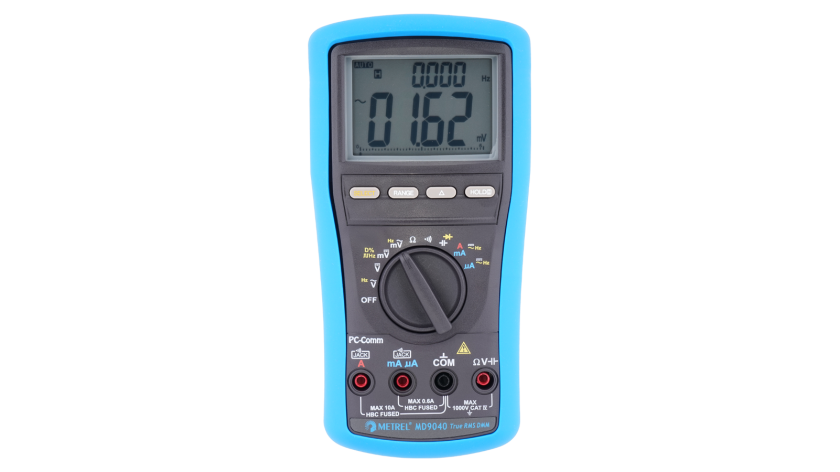

MD 9040 TRMS Industrial Digital Multimeter

Digitalni multimetri

Prenapetostna kategorija CAT IV/1000 V in merjenje efektivne vrednosti izmeničnih tokov ter napetosti so ključne odlike instrumenta MD 9040. Zaradi njih je instrument še posebej primeren za meritve na izvorih električne energije in za najzahtevnejšo uporabo v industrijskem okolju.

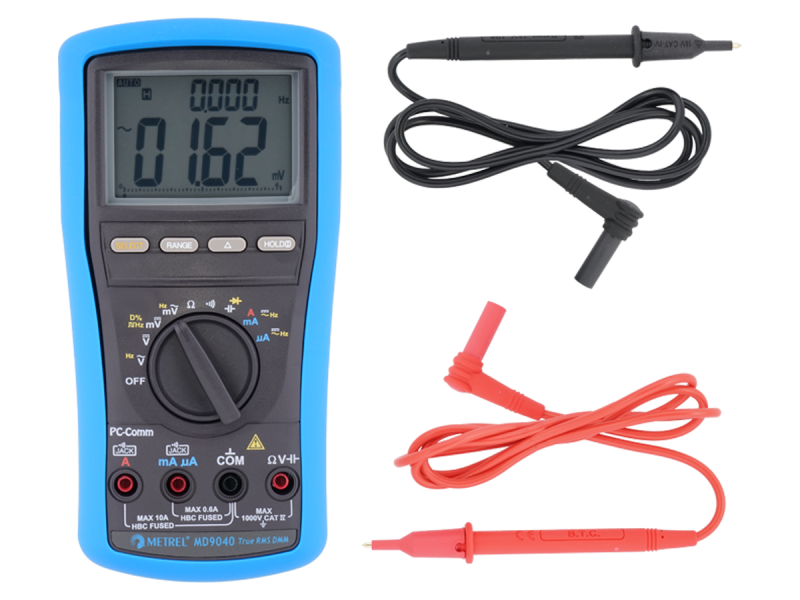

Seti

Podprti standardi

Instrument safety towards user

  • IEC/EN 55022 Information technology equipment - Radio disturbance characteristics
  • IEC/EN 61000 Electromagnetic compatibility (EMC) series
  • IEC/EN 61000-3-2 Electromagnetic compatibility (EMC) - Part 3-2 - Limits - Limits for harmonic current emissions (equipment input current ≤ 16 A per phase)
  • IEC/EN 61000-3-3 Electromagnetic compatibility (EMC) - Part 3-3 - Limits - Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current ≤ 16 A per phase and not subject to conditional connection
  • IEC/EN 61000-4-2 Electromagnetic compatibility (EMC)- Part 4-2: Testing and measurement techniques - Electrostatic discharge immunity test
  • IEC/EN 61000-4-3 Electromagnetic compatibility (EMC)- Part 4-3: Testing and measurement techniques - Radiated, radio-frequency, electromagnetic field immunity test
  • IEC/EN 61000-4-4 Electromagnetic compatibility (EMC) - Part 4-4: Testing and measurement techniques - Electrical fast transient/burst immunity test
  • IEC/EN 61000-4-5 Electromagnetic compatibility (EMC) - Part 4-5: Testing and measurement techniques - Surge immunity test
  • IEC/EN 61000-4-6 Electromagnetic compatibility (EMC) - Part 4-6: Testing and measurement techniques - Immunity to conducted disturbances, induced by radio-frequency fields
  • IEC/EN 61000-4-8 Electromagnetic compatibility (EMC) - Part 4-8: Testing and measurement techniques - Power frequency magnetic field immunity test
  • IEC/EN 61000-4-11 Electromagnetic compatibility (EMC) - Part 4-11: Testing and measurement techniques - Voltage dips, short interruptions and voltage variations immunity tests
  • The Low Voltage Directive LVD 2006/95/EC Electrical equipment designed for use within certain voltage limits
  • Directive EMC 2004/108/EC on electromagnetic compatibility
  • IEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use - series
  • IEC/EN 61010-1 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements
  • IEC/EN 61010-031 Amendment 1 - Safety requirements for electrical equipment for measurement, control and laboratory use - Part 031: Safety requirements for hand-held and hand-manipulated probe assemblies for electrical test and measurement
  • IEC/EN 61010-2-030 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-030: Particular requirements for equipment having testing or measuring circuits
  • IEC/EN 61010-2-033 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-033: Particular requirements for hand-held multimeters and other meters for domestic and professional use, capable of measuring mains voltage

EMC safety

  • IEC/EN 61326 Electrical equipment for measurement, control and laboratory use - EMC requirements - series
  • IEC/EN 61326-1 Electrical equipment for measurement, control and laboratory use - EMC requirements - Part 1: General requirements

Lastnosti

Merilne funkcije

  • TRMS AC in DC, merjenje napetosti do 1000 V
  • TRMS AC in DC, merjenje toka do 10 A
  • Preskušanje diod
  • Merjenje upornosti
  • Preizkušanje povezav
  • Merjenje omrežne frekvence
  • Merjenje frekvence frekvenčnih pretvornikov  do 1 MHz
  • Merjenje kapacitivnosti

Ostale lastnosti

  • Samodejno natavljanje merilnega območja za vse merilne funkcije
  • Dvovrstični LCD prikazalnik z osvetlitvijo, 3-3/10 digitov, štetje do 9999 (Izmenična napetost, enosmerna napetost, Hz, nS)
  • 3-5/6 digitov, štetje do 6000 (mV, uA, A, Ω, F)
  • Zadržanje prikaza na prikazalniku - Data hold
  • Kompenzacija upornosti merilnih vezi
  • Zvočni signal pri preizkušanju povezav
  • Zaščita pred napačno priključitvijo
  • Prenapetostna kategorija CAT IV/1000 V

Tehnični podatki

  • Velikost (Š x V x D): 103 x 64.5 x 208 mm
  • Masa (vključno z gumijastim oprijemalom): 635 g

Specifikacije

Prenosi

Vrsta Ime datoteke Jezik Verzija Datum Zapiski Datoteka Velikost Online Prenos
Datasheet MD 9040 Digitalni multimeter sl 2019 14.11.2019 pdf 314.51 KB
Manual MD 9040 and MD 9050 Digitalmultimeter Multi-Language 2.2.2 29.09.2021 20 751 353 pdf 7.12 MB Prijava
DoC EU Declaration of Conformity Multi-Language 10.08.2021 QR code Zunanja povezava Neznano
PC Software SW 1311 Data Recording Multi-Language 1.1.1 23.03.2021 zip 13.75 MB Prijava
USB driver USB driver (DMM) en 1.1.1 23.03.2021 zip 13.62 MB
