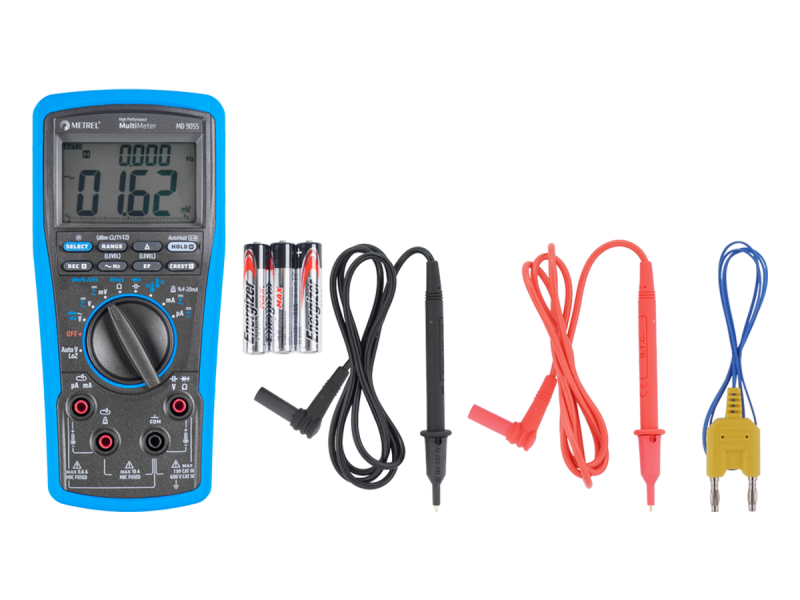

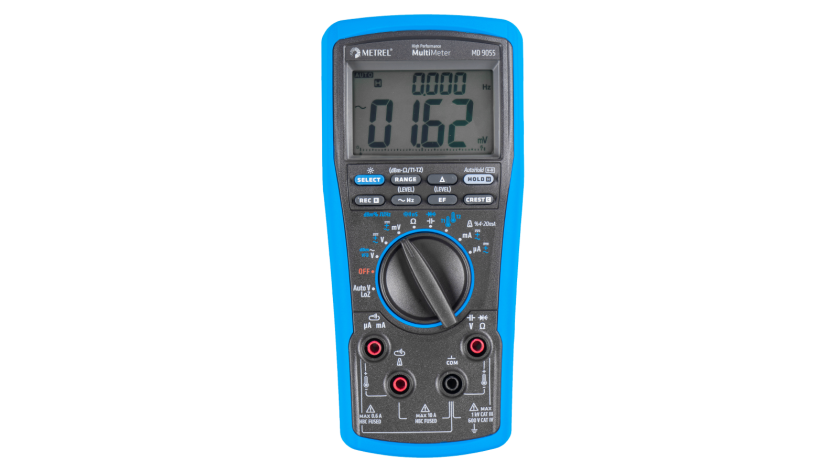

MD 9055 Multimeter Novo

Digitalni multimetri

Zmogljivost v majhnem paketu je najboljši opis za MD 9055 Multimeter z množico merilnih in testnih funkcij. Ima velik, dobro osvetljen zaslon za delo v pogojih zmanjšane vidljivosti in trpežno ohišje ter podpira meritve kot so dBm, VFD in meritve temperature.

Seti

Podprti standardi

Instrument safety towards user

  • IEC/EN 61000 Electromagnetic compatibility (EMC) series
  • IEC/EN 61000-3-2 Electromagnetic compatibility (EMC) - Part 3-2 - Limits - Limits for harmonic current emissions (equipment input current ≤ 16 A per phase)
  • IEC/EN 61000-3-3 Electromagnetic compatibility (EMC) - Part 3-3 - Limits - Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current ≤ 16 A per phase and not subject to conditional connection
  • IEC/EN 61000-4-2 Electromagnetic compatibility (EMC)- Part 4-2: Testing and measurement techniques - Electrostatic discharge immunity test
  • IEC/EN 61000-4-3 Electromagnetic compatibility (EMC)- Part 4-3: Testing and measurement techniques - Radiated, radio-frequency, electromagnetic field immunity test
  • IEC/EN 61000-4-4 Electromagnetic compatibility (EMC) - Part 4-4: Testing and measurement techniques - Electrical fast transient/burst immunity test
  • IEC/EN 61000-4-5 Electromagnetic compatibility (EMC) - Part 4-5: Testing and measurement techniques - Surge immunity test
  • IEC/EN 61000-4-6 Electromagnetic compatibility (EMC) - Part 4-6: Testing and measurement techniques - Immunity to conducted disturbances, induced by radio-frequency fields
  • IEC/EN 61000-4-8 Electromagnetic compatibility (EMC) - Part 4-8: Testing and measurement techniques - Power frequency magnetic field immunity test
  • IEC/EN 61000-4-11 Electromagnetic compatibility (EMC) - Part 4-11: Testing and measurement techniques - Voltage dips, short interruptions and voltage variations immunity tests
  • The Low Voltage Directive LVD 2006/95/EC Electrical equipment designed for use within certain voltage limits
  • Directive EMC 2004/108/EC on electromagnetic compatibility
  • IEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use - series
  • IEC/EN 61010-1 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements
  • IEC/EN 61010-031 Amendment 1 - Safety requirements for electrical equipment for measurement, control and laboratory use - Part 031: Safety requirements for hand-held and hand-manipulated probe assemblies for electrical test and measurement
  • IEC/EN 61010-2-030 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-030: Particular requirements for equipment having testing or measuring circuits
  • IEC/EN 61010-2-033 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-033: Particular requirements for hand-held multimeters and other meters for domestic and professional use, capable of measuring mains voltage

EMC safety

  • IEC/EN 61326 Electrical equipment for measurement, control and laboratory use - EMC requirements - series
  • IEC/EN 61326-1 Electrical equipment for measurement, control and laboratory use - EMC requirements - Part 1: General requirements

Lastnosti

Merilne funkcije

  • TRMS AC, DC meritev napetosti;
  • TRMS AC, DC meritev toka;
  • Meritev upornosti;
  • Meritev kapacitivnosti;
  • Preizkušanje diod;
  • Meritev frekvence digitalnih signalov;
  • Meritev frekvence omrežne napetosti;
  • Meritev zveznosti ozemljitve (zvočno signaliziranje);
  • Meritev konduktance;
  • Meritev temperature;
  • Testiranje zanke z 4-20 mA;
  • Brezstično zaznavanje prisotnosti električnega polja.
  • Digitalni multimetri

Ostale lastnosti

  • TRMS: za natančne odčitke sinusnih in ne-sinusnih signalov.
  • Samodejen izbor merilnega območja: uporabnik lahko izbira med ročnim ali samodejnim izborom merilnega območja.
  • Meritev temperature: meritev T1, T2 in T1+T2 temperature v stopinjah Celzija in Fahrenheita.
  • Opozorilo o priključitvi: opozorilo o nepravilni priključitvi merilnih vezi.
  • dBm meritev: rezultati z nastavljivimi referenčnimi vrednostmi.
  • Zadržanje prikaza: funkcija zamrznitve prikazane informacije za poznejši ogled.
  • Relativna ničla: funkcionalnost za primerjavo med signali ali odstranitev šuma ozadja.
  • VFD: možnost meritev resničnih vrednosti v skladu s frekvenco.
  • MIN/MAX/AVG funkcija: snemanje minimalnih, maksimalnih in povprečnih vrednosti.
  • Zadržanje najvišje vrednosti: zajem vršnih vrednosti (dolžine 5 ms).
  • Varnost: CAT IV / 1000 V prenapetostna zaščita.
  • Osvetlitev ozadja: velik štirimestni in 60 000 točkovni LCD prikazovalnik z osvetljenim ozadjem za delo v pogojih zmanjšane vidljivosti.

Tehnični podatki

Dimenzije: 193 x 89 x 51 mm
Teža: 420 g

Specifikacije

Prenosi

Vrsta Ime datoteke Jezik Verzija Datum Zapiski Datoteka Velikost Online Prenos
Datasheet MD 9055 Multimeter sl 2022 09.05.2022 pdf 367.05 KB
Manual MD 9055 TRMS Advanced Multimeter Multi-Language 1.1.10. 07.06.2022 20753237 pdf 13.92 MB Prijava
