Podprti standardi

Nizkonapetostne inštalacije v zgradbah

EISinsp kompetence: Pregledi nizkonapetostnih inštalacij
EISc kompetence: Varnost nizkonapetostnih inštalacij za izvajalce in vzdrževalce
IEC/EN 60364 Electrical Installations for Buildings series
IEC/EN 60364-6 Electrical Installations for Buildings - Verification
IEC/EN 60364-4-41 Electrical Installations for Buildings - Protection against electric shock
IEC/EN 60755 General safety requirements for residual current operated protective devices
IEC/EN 61008-1 Residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs)
IEC/EN 61009 Residual current operated circuit-breakers with integral overcurrent protection for household and similar uses (RCBOs)
IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
IEC/EN 61557-1 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 1: General requirements
IEC/EN 61557-2 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 2: Insulation resistance
IEC/EN 61557-3 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 3: Loop impedance
IEC/EN 61557-6 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 6: Effectiveness of residual current devices (RCD) in TT, TN and IT systems
IEC/EN 61557-7 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 7: Phase sequence
IEC/EN 61557-10 Electrical safety in low voltage distribution systems up to 1 000 v a.c. and 1 500 v d.c. - Equipment for testing, measuring or monitoring of protective measures - Part 10: Combined measuring equipment for testing, measuring and monitoring of protective measures
VDE 0413 (IEC 61557) Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
AS / NZ 3017 Electrical installations – Verification guidelines
AS / NZ 3018 Electrical installations - Domestic installations
BS 7671 IEE Wiring Regulations (18th edition)
CEI 64.8 V4 rated electrical equipment not exceeding 1,000 VAC and 1,500V DC current

Ozemljitev in strelovodna zaščita

LPSinsp komeptence: Pregled strelovodne zaščite zgradb
LPSc kompetence: Strelovodna zaščita za izvajalce in vzdrževalce
IEC 62305 Zaščita pred delovanjem strele
IEC/EN 61557-5 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 5: Resistance to earth
IEC/EN 61557-4 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 4: Resistance of earth connection and equipotential bonding

Kakovost električne energije

IEC/EN 61557-12 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 12: Power metering and monitoring devices (PMD)

Električna varnost mobilnih enot

eMOB kompetence: Električne nizkonapetostne inštalacije v mobilnih enotah
IEC/EN/HD 60364-7-717 Nizkonapetostne električne inštalacije - 7-717. del: Zahteve za posebne inštalacije ali lokacije - Premične ali prenosne enote
ISO 6469-3 - Electrically propelled road vehicles Safety specification Part 3: Electrical safety

Oprema za polnjenje električnih vozil

EVSE kompetence: Varnost opreme za polnjenje električnih vozil
IEC/EN 61851 Electric vehicle conductive charging system
IEC/EN 62752 In-cable control and protection device for mode 2 charging of electric road vehicles (IC-CPD)

Medicinska električna oprema

AS/NZS 3551 Management programs for medical devices

Inštalacije v operacijskih sobah

MEDi kompetence: Električna varnost bolnišničnih in kirurških prostorov

Varnost instrumenta proti uporabniku

Directive EMC 89/336/EE on electromagnetic compatibility
IEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use - series
IEC/EN 61010-2-033 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-033: Particular requirements for hand-held multimeters and other meters for domestic and professional use, capable of measuring mains voltage

EMC varnost

IEC/EN 61326 Electrical equipment for measurement, control and laboratory use - EMC requirements - series

Lastnosti

Glavne lastnosti

Litij‑ionska baterija 5,2 Ah;
Priključek USB Type‑C za hitro polnjenje (15 V, 3 A, 45 W) in komunikacijo z osebnimi računalniki;

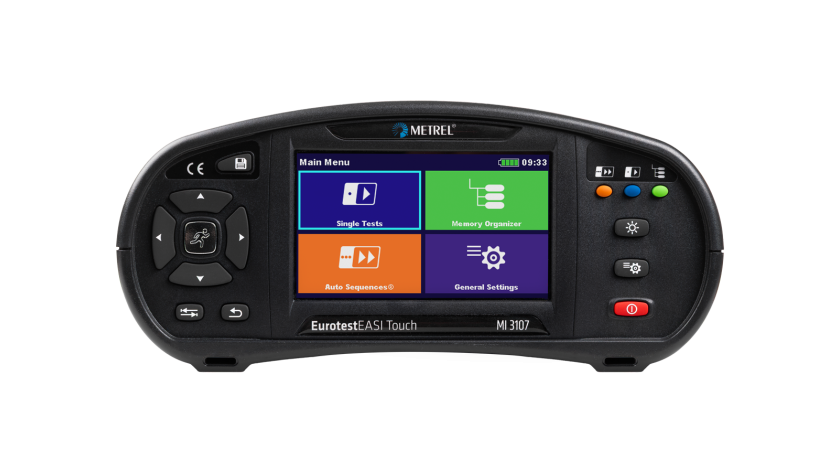

Hitro upravljanje preko 4,3‑palčnega TFT barvnega zaslona z visoko ločljivostjo za pripravo testov in shranjevanje podatkov;
Ločena izbira tipa RCD in oblike toka pri meritvah RCD;
Avtomatiziran postopek testiranja RCD (RCD AUTO);
Vnaprej definirani avtomatski testi:
- Auto TT;
- Auto TT RCD;
- Auto TN;
- Auto TN RCD.
Vnaprej pripravljene AUTO SEQUENCE;
Vgrajeni zasloni s pomočjo za referenco na terenu;
Vgrajene tabele varovalk za samodejno ovrednotenje rezultata impedance linije/zanke;
Spremljanje L-N, L-PE, N-PE napetosti v realnem času;
Samodejna zamenjava polaritete pri meritvi kontinuitete;
Filtriranje meritev glede na izbrano skupino območja.
Povezljivost Wi‑Fi in Bluetooth® za hitro komunikacijo z aplikacijo Metrel Cloud za načrtovanje meritev, upravljanje podatkov in pripravo poročil.*
Združljivo z Metrel Cloud Storage.
Združljivo z Metrel Cloud App.
PC programska oprema Metrel ES Manager: omogoča ustvarjanje testnih struktur, profesionalnih poročil o testiranju in prenos podatkov za arhiviranje.

* Na voljo z licencama MESM PRO in Metrel Cloud.

Uporablja za

Začetno in periodično testiranje ter inšpekcijski pregledi nizkonapetostnih inštalacij v gospodinjstvih in manjših pisarnah;
Testiranje sistemov TT in TN;
Preizkušanje požarne varnosti in požarnih tveganj;
Odpravljanje napak na inštalacijah;
Testiranje opreme za napajanje električnih vozil (EVSE);
Vzdrževanje (npr. po popravilu);
Nizkonapetostna ozemljitev in strelovodna zaščita.
