MI 3125 BT EurotestCOMBO

Večfunkcijski testerji

Instrument MI 3125 BT EurotestCOMBO je namenjen testiranju električne varnosti v TT in TN sistemih ter lahko izvaja meritve v skladu z EN 61557 standardom: zveznost, izolacija, RCD, okvarna/kratkostična zanka, napetost, frekvenca, upornost zemlje in fazna sekvenca. Ponaša se, med drugim, z velikim grafičnim prikazovalnikom in dvema LED indikatorjema na vsaki strani le-tega, ki služita za enostavno indikacijo PASS/FAIL stanja meritve. Poleg tega ima vgrajene tabele karakteristik varovalk in RCD-jev (vključno z B tipom) za samodejno vrednotenje rezultatov. Uporabniku so v pomoč tudi namenski meniji s prikazom priklopa za izbrano meritev. Po končanem delu je mogoče zbrane meritve prenesti na PC s pomočjo EuroLink PRO programske opreme za vrednotenje in pripravo poročila.

Seti

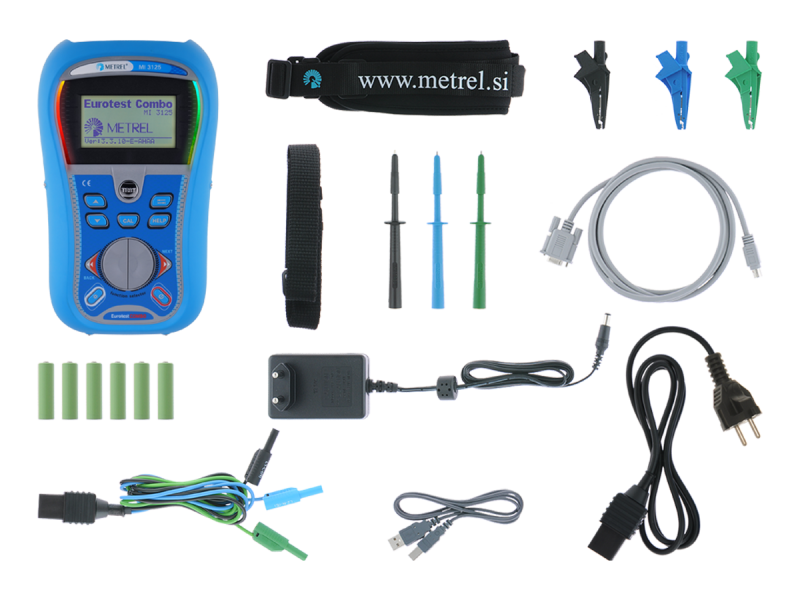

MI 3125 BT Standardni set

  • Instrument MI 3125 BT EurotestCOMBO
  • Komplet prenosnih pasov
  • Merilna vez, 3 x 1.5 m
  • Šuko merilni kabel, 1.5 m
  • Merilna tipalka, 3 kos (modra, črna, zelena)
  • Krokodil sponka, 3 kos (modra, črna, zelena)
  • Napajalni adapter + 6 NiMH akumulatorskih baterij, tip AA
  • USB-kabel
  • RS-232 in PS/2-kabel
  • PC SW EuroLink PRO
  • Kratko navodilo za uporabo
  • Navodilo za uporabo in priročnik na CD-ju
  • Akreditiran certifikat o kalibraciji
V košarico
€ 1.496,70
Opcijski pribor

Podprti standardi

Building LV Installation

  • EISinsp Competences: Low Voltage Electrical Installation Safety Inspection
  • EISc Competences: Low Voltage Electrical Installation Safety for Contractors and Maintainers
  • IEC/EN 60364 Electrical Installations for Buildings series
  • IEC/EN 60364-6 Electrical Installations for Buildings - Verification
  • IEC/EN 60364-4-41 Electrical Installations for Buildings - Protection against electric shock
  • IEC/EN 60755 General safety requirements for residual current operated protective devices
  • IEC/EN 61008-1 Residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs)
  • IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
  • IEC/EN 61557-1 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 1: General requirements
  • IEC/EN 61557-2 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 2: Insulation resistance
  • IEC/EN 61557-3 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 3: Loop impedance
  • IEC/EN 61557-6 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 6: Effectiveness of residual current devices (RCD) in TT, TN and IT systems
  • IEC/EN 61557-7 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 7: Phase sequence
  • IEC/EN 61557-10 Electrical safety in low voltage distribution systems up to 1 000 v a.c. and 1 500 v d.c. - Equipment for testing, measuring or monitoring of protective measures - Part 10: Combined measuring equipment for testing, measuring and monitoring of protective measures
  • VDE 0413 (IEC 61557) Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
  • AS / NZ 3017 Electrical installations – Verification guidelines
  • AS / NZ 3018 Electrical installations - Domestic installations
  • BS 7671 IEE Wiring Regulations (18th edition)
  • CEI 64.8 V4 rated electrical equipment not exceeding 1,000 VAC and 1,500V DC current

Earthing and lightning protection

  • LPSinsp Competences: Lightning Protection of Buildings Inspection
  • LPSc Competences: Lightning Protection of Buildings for Contractors and Maintainers
  • IEC 62305 Protection against lightning - series
  • IEC/EN 61557-5 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 5: Resistance to earth
  • IEC/EN 61557-4 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 4: Resistance of earth connection and equipotential bonding

Instrument safety towards user

  • IEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use - series
  • IEC/EN 61010-1 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements

EMC safety

  • IEC/EN 61326 Electrical equipment for measurement, control and laboratory use - EMC requirements - series
  • IEC/EN 61326-1 Electrical equipment for measurement, control and laboratory use - EMC requirements - Part 1: General requirements

Lastnosti

Merilne funkcije

  • Merjenje DC izolacijske upornosti.
  • PE preizkus zveznosti vodnika, izenačitev potenciala, 200 mA.
  • PE preizkus zveznosti vodnika s 7 mA tokom z možnostjo blokade odklopa RCD.
  • Impedanca kratkostične in okvarne zanke.
  • Meritev impedance zanke z Trip Lock RCD funkcijo.
  • Ugotavljanje zaporedja faz v trifaznih sistemih.
  • TRMS meritev napetosti in frekvence.
  • Testiranje RCD-jev (splošno in selektivno, tip AC, A in B).
  • Meritev upornost zemlje (3-žična metoda).

Ostale lastnosti

  • LED PASS / FAIL indikatorji: dva LED indikatorja za prikaz PASS / FAIL statusa meritve na vsaki strani LCD prikazovalnika.
  • Vgrajeni meniji za pomoč.
  • Meritev upornosti zemlje: instrument omogoča izvedbo 3-žične meritve upornosti zemlje z dvema dodatnima ozemljitvenima sondama.
  • Baza karakteristik varovalk za hitro ovrednotenje merilnih rezultatov pri merjenju impedance kratkostične in okvarne zanke.
  • Stalen prikaz vrednosti napetosti za L-L, L-N in L-PE na zaslonu.
  • Nadgradljiv: nadgradnja firmwarea po potrebi.
  • Zamenjava polaritete: samodejna zamenjava polaritete pri testu neprekinjenosti.
  • Meritev izolacije: širok razpon testnih napetosti od 50 V do 1000 V, merilni razpon do 1000 MΩ.
  • Trip Lock funkcija: Zs (RCD) funkcija omogoča izvedbo meritve impedance zanke brez proženja (EV) RCD.
  • Testiranje na več sistemih: testiranje na eno in večfaznih TT ter TN sistemih.
  • Vgrajen polnilnik in komplet akumulatorskih baterij, vključenih v „standard set“.
  • Samodejni preizkus zaščitnih stikal na diferenčni tok (RCD).
  • Testiranje B tip RCD-jev.
  • Bluetooth komunikacija z Android tablicami in pametnimi telefoni preko Bluetooth vtičnika.

Programska oprema

  • PC SW EuroLink PRO programska oprema za snemanje rezultatov meritev in izdelavo poročila.

Tehnični podatki

  • Dimenzije: 140 x 80 x 230 mm
  • Teža (brez pribora): 1.3 kg

Specifikacije
