MI 3152H EurotestXC 2,5 kV

Večfunkcijski testerji

MI 3152 EurotestXC je predstavnik nove generacije Metrelovih večfunkcijskih merilnih inštrumentov s popolnoma novim uporabniškim vmesnikom. Ta omogoča izboljšano uporabniško izkušnjo, predvsem pri upravljanju obsežnega nabora merilnih funkcij: od popolnega testiranja varnosti električnih inštalacij v skladu s standardom IEC/EN/SIST 61557, do predpripravljenih testnih sekvenc (AUTO SEQUENCE®) za testiranje električnih inštalacij s TN, TT ali IT ozemljitvenim sistemom. Merilne funkcije med drugim vključujejo: stalen prikaz napetosti, ugotavljanje zaporedja faz, merjenje zemeljske upornosti, merjenje osvetljenosti (z opcijsko LUX sondo), merjenje efektivne vrednosti (TRMS) toka, testiranje različnih tipov RCD-jev, merjenje impedance kratkostične in okvarne zanke, meritev ISFL toka ter testiranje IMD-jev.

Seti

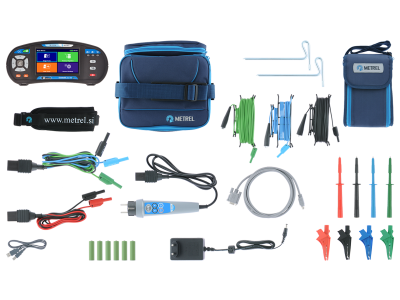

MI 3152H Standardni set

  • Instrument MI 3152H EurotestXC 2,5 kV
  • Šuko upravljalec, 1,5 m
  • 2,5 kV testna vez, 2 x 1,5 m
  • Univerzalni merilni kabel 3 x 1,5 m
  • Tipalka, 4 kosi (črna, modra, zelena, rdeča)
  • Krokodil, 4 kosi (črna, modra, zelena, rdeča)
  • Pribor za merjenje ozemljitvene upornosti 20 m
  • Polnilec in 6 NiMH akumulatorskih baterij tipa AA
  • RS232 – PS/2 kabel
  • USB kabel
  • Trak za nošenje
  • Torba
  • Programska oprema Metrel ES Manager z BASIC licenco*
  • Navodilo za uporabo – kratko


* Metrel ES Manager se lahko (zastonj) sname z Metrelove spletne strani.

V košarico
€ 2.524,91
Opcijski pribor

Podprti standardi

Building LV Installation

  • EISinsp Competences: Low Voltage Electrical Installation Safety Inspection
  • EISc Competences: Low Voltage Electrical Installation Safety for Contractors and Maintainers
  • IEC/EN 60364 Electrical Installations for Buildings series
  • IEC/EN 60364-6 Electrical Installations for Buildings - Verification
  • IEC/EN 60364-4-41 Electrical Installations for Buildings - Protection against electric shock
  • IEC/EN 60755 General safety requirements for residual current operated protective devices
  • IEC/EN 61008-1 Residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs)
  • IEC/EN 61009 Residual current operated circuit-breakers with integral overcurrent protection for household and similar uses (RCBOs)
  • IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
  • IEC/EN 61557-1 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 1: General requirements
  • IEC/EN 61557-2 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 2: Insulation resistance
  • IEC/EN 61557-3 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 3: Loop impedance
  • IEC/EN 61557-6 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 6: Effectiveness of residual current devices (RCD) in TT, TN and IT systems
  • IEC/EN 61557-7 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 7: Phase sequence
  • IEC/EN 61557-10 Electrical safety in low voltage distribution systems up to 1 000 v a.c. and 1 500 v d.c. - Equipment for testing, measuring or monitoring of protective measures - Part 10: Combined measuring equipment for testing, measuring and monitoring of protective measures
  • VDE 0413 (IEC 61557) Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
  • AS / NZ 3017 Electrical installations – Verification guidelines
  • AS / NZ 3018 Electrical installations - Domestic installations
  • BS 7671 IEE Wiring Regulations (18th edition)
  • CEI 64.8 V4 rated electrical equipment not exceeding 1,000 VAC and 1,500V DC current

Earthing and lightning protection

  • LPSinsp Competences: Lightning Protection of Buildings Inspection
  • LPSc Competences: Lightning Protection of Buildings for Contractors and Maintainers
  • IEC 62305 Protection against lightning - series
  • IEC/EN 61557-5 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 5: Resistance to earth
  • IEC/EN 61557-4 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 4: Resistance of earth connection and equipotential bonding

Power quality

  • PQA Competences: Power Quality Analyzing & Reporting
  • IEC/EN 61557-12 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 12: Power metering and monitoring devices (PMD)

Electrical switchboards safety

  • ESB Competences: Electrical Switchboards Safety Testing
  • IEC/EN 62271 High-voltage switchgear and controlgear - series
  • IEC/EN 62271-1 High-voltage switchgear and controlgear - Part 1: Common specifications for alternating current switchgear and controlgear
  • IEC/EN 62271-100 High-voltage switchgear and controlgear - Part 100: Alternating current circuit-breakers

Mobile Units Electrical Safety

  • eMOB Competences: Electrical LV Installations in Mobile Units Safety
  • IEC/EN/HD 60364-7-717 Low-voltage electrical installations: Requirements for special installations or locations – Supplies for Electrical Vehicles

Electrical Vehicle Supply Equipment

  • EVSE Competences: Electrical Vehicle Supply Equipment Safety
  • IEC/EN 61851 Electric vehicle conductive charging system
  • IEC/EN 62752 In-cable control and protection device for mode 2 charging of electric road vehicles (IC-CPD)
  • IEC/EN 62955 Residual direct current detecting device (RDC-DD) to be used for mode 3 charging of electric vehicles

Medical and surgery rooms' installations

  • MEDi Competences: Medical and Surgery Rooms Electrical Installations Safety
  • IEC/EN 60364-7-710 Requirements for special installations or locations – Medical Location

Instrument safety towards user

  • IEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use - series
  • IEC/EN 61010-1 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements

EMC safety

  • IEC/EN 61326 Electrical equipment for measurement, control and laboratory use - EMC requirements - series
  • IEC/EN 61326-1 Electrical equipment for measurement, control and laboratory use - EMC requirements - Part 1: General requirements

Lastnosti

Merilne funkcije

  • Merjenje DC izolacijske upornosti od 50 V do 1000 V
  • Izenačitev potenciala s preizkusom zveznosti zaščitnega PE vodnika z 200 mA preizkusnim tokom
  • Preizkus zveznosti PE vodnika s 7 mA tokom brez proženja RCD zaščite
  • Impedanca kratostične in okvarne zanke
  • Merjenje impedance okvarne zanke brez izklopa RCD stikala
  • Merjenje frekvence in efektivne vrednosti (TRMS) napetosti
  • Ugotavljanje zaporedja faz v trifaznih sistemih
  • Merjenje moči in harmonikov
  • RCD preskus (splošen in selektiven, tip AC, A, F, B, B+)
  • Merjenje ozemljitvene upornosti po 3-vodni in 2-kleščni metodi
  • Merjenje specifične zemeljske upornosti z Ro-adapterjem (opcijsko)
  • Merjenje efektivne vrednosti (TRMS) uhajavnih in bremenskih tokov (opcijsko)
  • Merjenje ISFL toka
  • Testiranje naprav za nadzor izolacije IMD
  • Merjenje osvetljenosti (opcijsko)
  • Merjenje impedance okvarne zanke z visoko ločljivostjo (mΩ) (opcijsko)

Ostale lastnosti

  • Prednastavljene avtomatske meritve:
    - Auto TT (U, Zln, Zs, Uc)
    - Auto TN/RCD (U, Zln, Zs, Rpe)
    - Auto TN (U, Zln, Zlpe, Rpe)
    - Auto IT (U, Zln, Isc, Isfl, IMD)
  • Vgrajeni meniji za pomoč
  • Baza karakteristik varovalk za hitro ovrednotenje merilnih rezultatov pri merjenju impedance kratkostične in okvarne zanke
  • Stalen prikaz vrednosti napetosti na zaslonu
  • Samodejna zamenjava polaritet pri preizkusu zveznosti vodnika
  • Samodejni preizkus zaščitnih stikal na diferenčni tok (RCD)
  • Vgrajen polnilnik in komplet akumulatorskih baterij sta vključena v "standard set"
  • Brezžična komunikacija z osebnimi računalniki, Android tablicami in pametnimi telefoni preko vgrajenega Bluetooth modula
  • Programska oprema Metrel ES Manager za izdelavo testnih struktur, nalaganje in snemanje rezultatov testiranj ter izdelavo poročil
  • EuroLink Android APP, aplikacija za delo s podatki (opcijsko)
  • Podpora za aMESM Android APP, aplikacijo za delo s podatki (opcijsko)

Programska oprema

Metrel Electrical Safety Manager je program za delo s široko paleto Metrelovih inštrumentov za testiranje inštalacij, naprav in izdelkov ter industrijskih postrojev. Ima poenoten uporabniški vmesnik, kar pomeni, da imajo posamezni elementi isti pomen tako v menijih na inštrumentih, kot v samem programu. Omogoča obdelavo meritev, pregledovanje merilnih rezultatov in izdelavo profesionalnih poročil. Uporabnik lahko, odvisno od modela in vrste inštrumenta, izdela predpripravljene testne sekvence (AUTO SEQUENCE®), prikrojene ali posamične teste. Le-ti so nato lahko integrirani v prikrojene testne strukture in preneseni neposredno na inštrument.

Tehnični podatki

Dimenzije (š x v x d): 230 x 103 x 115 mm

Teža (brez pribora): 1.3 kg

Rešitve

Low voltage electrical installation safety

  • Substation electrical safety
  • Mains bonding and touch voltages during fault
  • Switchboards and automatic trip-out protection
  • Public places electrical safety

Low voltage earthing and lightning protection

  • Earthing measurement with fall of potential method
  • 2-clamps method for measuring lightning and earth protection
  • Surge protection devices

Hospital earthing and lightning protection

  • Two clamps method for measuring lightning and earth protection
  • Hospital earthing measurement with fall of potential method
  • Mains bonding and touch voltages during fault current
  • Surge protection devices in hospitals

Power supply and power distribution

  • Hospital switchboards and automatic trip-out protection

Patient recovery rooms and hospital wards

  • Public and workspace electrical safety in healthcare
  • Electrical safety in hospital wet areas

Secondary power sources in healthcare

  • Generator safety

Specifikacije


Natisni

Prenosi

Vrsta Ime datoteke Jezik Verzija Datum Zapiski Datoteka Velikost Online Prenos
Datasheet MI 3152H EurotestXC 2,5 kV sl 2019 07.05.2019 pdf 801.12 KB
Manual MI 3152H EurotestXC 2,5 kV sl 1.3.6. 20.06.2019 20 752 470 pdf 6.22 MB Prijava
PC Software SW 1201 Metrel Electrical Safety Manager (MESM) Multi-Language 1.17.0.6962 02.07.2021 Readme zip 307.51 MB Prijava
Android SW 1304 aMESM Android en 04.01.2021 QR code Zunanja povezava Neznano
