MI 3155 EurotestXD Priporočamo
Večfunkcijski testerji
MI 3155 EurotestXD je najnovejši predstavnik Eurotest družine večfunkcijskih testerjev in nosilec celotne produktne skupine testerjev električne varnosti inštalacij ter zasnovan posebej za delo v zahtevnejših pogojih in industriji. Od ostalih primerljivih naprav se razlikuje tudi po svoji ergonomski obliki, barvnemu na dotik občutljivemu zaslonu in intuitivnemu uporabniškemu vmesniku, ki omogoča uporabniku enostavno delo z podatki in popolnoma programirljivimi AUTO SEQUENCE® testnimi sekvencami. Podpira TRMS meritve toka, RCD testiranje, testiranje impedance okvarne in kratkostične zanke z 3 (ali 4) žicami in meritve ozemljitvene upornosti, vse v skladu s standardom za funkcionalnost (IEC/EN 61557) oziroma ostalimi referenčnimi standardi za testiranje (npr. IEC/EN/HD 60364-4-41, ...). Poleg teh so med podprtimi funkcijami še stalen prikaz napetosti, ugotavljanje zaporedja faz v trifaznih sistemih, testiranje varistorjev, izračun PI/DAR faktorjev, merjenje osvetljenosti, merjenje časa praznenja in ISFL toka, testiranje IMD naprav ter še funkcionalna in vizualna preverjanja.

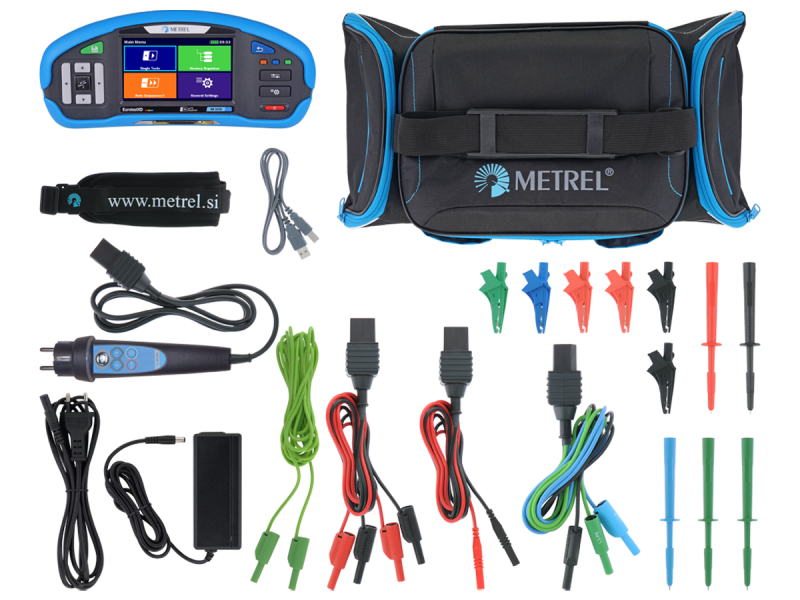

Seti
- Instrument MI 3155 EurotestXD
- Napajalni adapter 12 V / 3 A
- Šuko upravljalec, 1.5 m
- Testna vez, 4-žična, 1.5 m
- Testna vez, 3-žična, 1.5 m
- Testna vez, 2-žična, 2.5 kV, 1.5 m
- Tipalka, 4 kosi (črna, modra, zelena, rdeča)
- Krokodil, 6 kosov (2 kosa črna, 2 kosa rdeča, 1 kos modra, 1 kos zelena)
- USB kabel
- Prenosna torba
- Trak za nošenje
- Metrel ES Manager BASIC licenca*
- Kratka navodila za uporabo (CD)
- Navodila za uporabo (CD)
- Priročnik za pregledovanje nizkonapetostnih električnih inštalacij (CD)
- Kalibracijski certifikat
- Programska oprema Metrel ES Manager A 1481 (CD)
*Metrel ES Manager se lahko brezplačno prenese z Metrelovega spletnega strežnika
- Instrument MI 3155 EurotestXD
- 4400 mAh baterija (vgrajena v tester)
- Napajalni adapter 12 V / 3 A
- Šuko upravljalec, 1.5 m
- Testna vez, 4-žična, 1.5 m
- Testna vez, 3-žična, 1.5 m
- Testna vez, 2-žična, 2.5 kV, 1.5 m
- Tipalka, 4 kosi (črna, modra, zelena, rdeča)
- Krokodil, 6 kosov (2 kosa črna, 2 kosa rdeča, 1 kos modra, 1 kos zelena)
- Set za meritve ozemljitvene upornosti, 20 m
- USB kabel
- Prenosna torba
- Trak za nošenje
- Metrel ES Manager BASIC licenca*
- Kratka navodila za uporabo (CD)
- Navodila za uporabo (CD)
- Priročnik za pregledovanje nizkonapetostnih električnih inštalacij (CD)
- Kalibracijski certifikat
- Programska oprema Metrel ES Manager A 1481 (CD)
*Metrel ES Manager se lahko brezplačno prenese z Metrelovega spletnega strežnika
Priporočamo
- Instrument MI 3155 EurotestXD
- 8800 mAh baterija (vgrajena v tester)
- Napajalni adapter 12 V / 3 A
- Šuko upravljalec, 1.5 m
- Testna vez, 4-žična, 1.5 m
- Testna vez, 3-žična, 1.5 m
- Testna vez, 2-žična, 2.5 kV, 1.5 m
- Tipalka, 4 kosi (črna, modra, zelena, rdeča)
- Krokodil, 6 kosov (2 kosa črna, 2 kosa rdeča, 1 kos modra, 1 kos zelena)
- Set za meritve ozemljitvene upornosti, 20 m
- USB kabel
- Prenosna torba
- Trak za nošenje
- Metrel ES Manager PRO licenca*
- Kratka navodila za uporabo (CD)
- Navodila za uporabo (CD)
- Priročnik za pregledovanje nizkonapetostnih električnih inštalacij (CD)
- Kalibracijski certifikat
- Programska oprema Metrel ES Manager A 1481 (CD)
- Tokovne klešče A 1018 (manjši merilni razpon, uhajavni tok)
- Tokovne klešče A 1019
- Metrel aMESM Android aplikacija
*Metrel ES Manager se lahko brezplačno prenese z Metrelovega spletnega strežnika
Podprti standardi
Building LV Installation
- EISinsp Competences: Low Voltage Electrical Installation Safety Inspection
- EISc Competences: Low Voltage Electrical Installation Safety for Contractors and Maintainers
- IEC/EN 60364 Electrical Installations for Buildings series
- IEC/EN 60364-6 Electrical Installations for Buildings - Verification
- IEC/EN 60364-4-41 Electrical Installations for Buildings - Protection against electric shock
- IEC/EN 60755 General safety requirements for residual current operated protective devices
- IEC/EN 61008-1 Residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs)
- IEC/EN 61009 Residual current operated circuit-breakers with integral overcurrent protection for household and similar uses (RCBOs)
- IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
- IEC/EN 61557-1 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 1: General requirements
- IEC/EN 61557-2 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 2: Insulation resistance
- IEC/EN 61557-3 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 3: Loop impedance
- IEC/EN 61557-6 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 6: Effectiveness of residual current devices (RCD) in TT, TN and IT systems
- IEC/EN 61557-7 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 7: Phase sequence
- IEC/EN 61557-10 Electrical safety in low voltage distribution systems up to 1 000 v a.c. and 1 500 v d.c. - Equipment for testing, measuring or monitoring of protective measures - Part 10: Combined measuring equipment for testing, measuring and monitoring of protective measures
- IEC/EN 61557-11 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 11: Effectiveness of residual current monitors (RCM) in TT, TN and IT systems
- IEC/EN 60364-7 Electrical Installations for Buildings - Requirements for special installations or locations
- VDE 0413 (IEC 61557) Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
- AS / NZ 3017 Electrical installations – Verification guidelines
- AS / NZ 3018 Electrical installations - Domestic installations
- BS 7671 IEE Wiring Regulations (18th edition)
- CEI 64.8 V4 rated electrical equipment not exceeding 1,000 VAC and 1,500V DC current
Earthing and lightning protection
- LPSinsp Competences: Lightning Protection of Buildings Inspection
- LPSc Competences: Lightning Protection of Buildings for Contractors and Maintainers
- IEC 62305 Protection against lightning - series
- IEC/EN 61557-5 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 5: Resistance to earth
- IEC/EN 61557-4 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 4: Resistance of earth connection and equipotential bonding
Electrical Energetics
- EEA Competences: Electrical Energetic Installations with Automatic Trip-Out Ability
- IEC/EN 60909-0 Short-circuit currents in three-phase a.c. systems - Part 0: Calculation of currents
- IEC / EN 60947-2 Low-voltage switchgear and controlgear – Part 2: Circuit-breakers
Earthing and Grounding
- EES Competences: Electrical Energetic Systems Earthing and Grounding Safety
- HD 637 S1 Power installations exceeding 1 kV a.c.
- IEEE Guide for Safety in AC Substation Grounding
- IEEE 81-2012 IEEE Guide for Measuring Earth Resistivity, Ground Impedance, and Earth Surface Potentials of a Grounding System
- IEEE 142 Recommended Practice for Grounding of Industrial and Commercial Power Systems
- IEEE 367-2012 - IEEE Recommended Practice for Determining the Electric Power Station Ground Potential Rise and Induced Voltage from a Power Fault
- EN 50522 Earthing of power installations exceeding 1 000 V a.c.
- RAT 2008 Spanish high-voltage regulation
Power quality
- PQA Competences: Power Quality Analyzing & Reporting
- IEC/EN 61557-12 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 12: Power metering and monitoring devices (PMD)
Electrical switchboards safety
- ESB Competences: Electrical Switchboards Safety Testing
- IEC/EN 62271 High-voltage switchgear and controlgear - series
- IEC/EN 62271-1 High-voltage switchgear and controlgear - Part 1: Common specifications for alternating current switchgear and controlgear
- IEC/EN 62271-100 High-voltage switchgear and controlgear - Part 100: Alternating current circuit-breakers
Machine safety
- MST Competences: Machines Electrical Safety Testing
- IEC/EN 50191 Erection and operation of electrical test equipment
- IEC/EN 61557-14 Electrical safety in low voltage distribution systems up to 1 000 V a.c and 1 500 V d.c - Equipment for testing,measuring or monitoring of protective measures - Part 14: Equipment for testing the safety of electrical equipment for machinery
Mobile Units Electrical Safety
- eMOB Competences: Electrical LV Installations in Mobile Units Safety
- IEC/EN/HD 60364-7-717 Low-voltage electrical installations: Requirements for special installations or locations – Supplies for Electrical Vehicles
Electrical Vehicle Supply Equipment
- EVSE Competences: Electrical Vehicle Supply Equipment Safety
- IEC/EN 61851 Electric vehicle conductive charging system
- IEC/EN 62752 In-cable control and protection device for mode 2 charging of electric road vehicles (IC-CPD)
- IEC/EN 62955 Residual direct current detecting device (RDC-DD) to be used for mode 3 charging of electric vehicles
Medical and surgery rooms' installations
- MEDi Competences: Medical and Surgery Rooms Electrical Installations Safety
- IEC/EN 60364-7-710 Requirements for special installations or locations – Medical Location
Instrument safety towards user
- IEC 61000-6-5:2015 Electromagnetic compatibility (EMC) - Part 6-5: Generic standards - Immunity for equipment used in power station and substation environment
- IEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use - series
- IEC/EN 61010-1 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements
EMC safety
- IEC/EN 61326 Electrical equipment for measurement, control and laboratory use - EMC requirements - series
- IEC/EN 61326-1 Electrical equipment for measurement, control and laboratory use - EMC requirements - Part 1: General requirements
Lastnosti
Merilne funkcije
- Merjenje impedance transformatorja (pod napetostjo) z 4-žično metodo;
- Visokonatančno merjenje kratkostičnega toka z izračunanim Hot faktorjem;
- 3-žični test PE (RPE funkcija) brez podaljšanega prevodnika;
- AUTOTEST funkcija merjenja izolacije med L-N, N-PE in L-PE (R ISO ALL funkcija);
- 4-žično testiranje zveznosti;
- Merjenje DC izolacijske upornosti od 50 V do 2500 V z izračunom PI, DAR;
- Testiranje varistorjev;
- Izenačitev potenciala s preizkusom zveznosti zaščitnega PE vodnika z 200 mA preizkusnim tokom;
- Preizkus zveznosti PE vodnika s 7 mA tokom brez proženja RCD zaščite;
- 2- in 3-žično merjenje impedance okvarne zanke z visokim tokom (L-PE);
- 3-žično merjenje impedance okvarne zanke (L-PE) z Trip Lock RCD funkcijo;
- Merjenje stične/kontaktne napetosti z zunanjo P/S sondo;
- 2- in 3-žično merjenje linijske impedance (L-L, L-N);
- Merjenje 1- in 3-fazne TRMS napetosti in frekvence;
- Merjenje impedance kratostične in okvarne zanke ter RCD-jev v frekvenčnem razponu 16...400 Hz;
- Merjenje impedance okvarne zanke brez izklopa RCD stikala;
- Merjenje frekvence in efektivne vrednosti (TRMS) napetosti;
- Ugotavljanje zaporedja faz v trifaznih sistemih;
- Merjenje moči in THD (do 12-tega harmonika);
- RCD preskus (splošen in selektiven, tip AC, A, F, B, B+, MI RCD, EV RCD, PRCD, PRCD-K, PRCD-S);
- Merjenje ozemljitvene upornosti po 3-žični in 2-kleščni metodi;
- Merjenje specifične zemeljske upornosti z Ro-adapterjem (opcijsko);
- Merjenje efektivne vrednosti (TRMS) uhajavnih in bremenskih tokov (opcijsko);
- Merjenje ISFL toka;
- Testiranje naprav za nadzor izolacije IMD;
- Podpora za testiranje strojev z merjenjem časa praznjenja;
- Merjenje osvetljenosti (opcijsko);
- Merjenje impedance okvarne zanke z visoko ločljivostjo (mΩ) (opcijsko);
- Podpora za testiranje EVSE postaj (opcijsko);
- Odkrivanje lokacij kablov (opcijsko);
- Podpora za QR in/ali čitalnik črtnih kod (opcijsko).
Ostale lastnosti
- Programirljive AUTO SEQUENCE®;
- Prednastavljene, profilno pogojene AUTO SEQUENCE®;
- Prednastavljene avtomatske meritve:
- Auto TT (U, Zln, Zs, Uc)
- Auto TN/RCD (U, Zln, Zs, Rpe)
- Auto TN (U, Zln, Zlpe, Rpe)
- Auto IT (U, Zln, Isc, Isfl, IMD) - Funkcionalno preverjanje;
- Vizualno preverjanje;
- Uporabniško nastavljeno preverjanje (funkcionalno in vizualno), ki je lahko integrirano v AUTO SEQUENCE®;
- EVSE AUTO SEQUENCE® in funkcionalno preverjanje;
- Funkcionalno in vizualno preverjanje strojev;
- Vgrajeni meniji za pomoč;
- Baza karakteristik varovalk za hitro ovrednotenje merilnih rezultatov pri merjenju impedance kratkostične in okvarne zanke;
- Stalen prikaz vrednosti napetosti na zaslonu;
- Samodejna zamenjava polaritet pri preizkusu zveznosti vodnika;
- Samodejni preizkus zaščitnih stikal na diferenčni tok (RCD AUTO);
- Samodejna meritev impedance (Z AUTO);
- Vgrajen polnilnik in komplet akumulatorskih baterij kot standardni pribor;
- Brezžična komunikacija z osebnimi računalniki, Android tablicami in pametnimi telefoni preko vgrajenega Bluetooth modula;
Programska oprema
- Programska oprema Metrel ES Manager za izdelavo testnih struktur, nalaganje in snemanje rezultatov testiranj ter izdelavo poročil;
- Podpora za aMESM Android APP, aplikacijo za izdelavo testnih struktur in poročil, snemanje/nalaganje podatkov (opcijsko).
Tehnični podatki
- Masa: 1.78 kg
- Dimenzije (d x v x š): 252 x 111 x 165 mm
Specifikacije
Programska oprema
Prenosi
| Vrsta | Ime datoteke | Jezik | Verzija | Datum | Zapiski | Datoteka | Velikost | Online | Prenos |
|---|---|---|---|---|---|---|---|---|---|
| Datasheet | MI 3155 EurotestXD | sl | 2022 | 26.05.2022 | 1.23 MB | ||||
| Manual | MI 3155 EurotestXD | sl | 1.1.1 | 18.01.2018 | 20 752 809 | 4.22 MB | Prijava | ||
| Manual | Fuse tables guide | en | 1.11.1 | 20.01.2023 | 350.79 KB | Prijava | |||
| DoC | EU Declaration of Conformity | Multi-Language | 10.08.2021 | QR code | Zunanja povezava | Neznano | |||
| PC Software | SW 1201 Metrel Electrical Safety Manager (MESM) | Multi-Language | 1.20.1.914 | 31.05.2023 | Readme | zip | 354.23 MB | Prijava | |
| Android | SW 1307 Eurolink Android | en | 04.01.2021 | QR code | Zunanja povezava | Neznano | |||
| Android | SW 1304 aMESM Android | en | 04.01.2021 | QR code | Zunanja povezava | Neznano | |||
