MI 3108 EurotestPV Priporočamo
Testerji fotovoltaičnih in električnih inštalacij

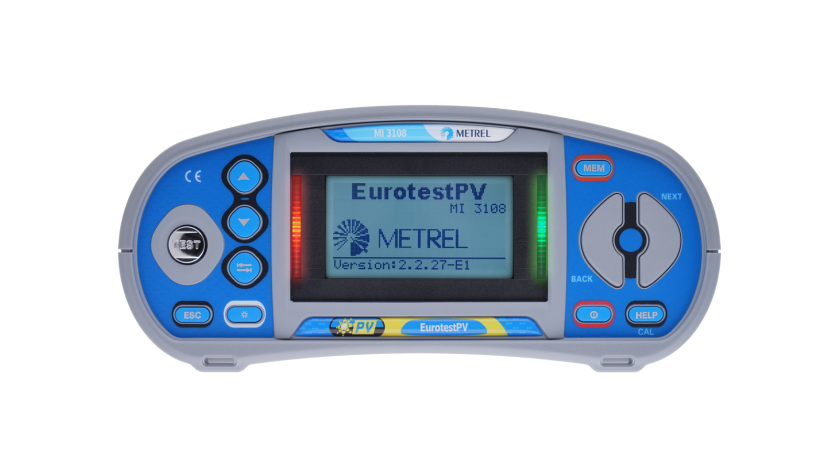

MI 3108 EurotestPV je kombiniran inštrument za testiranje fotovoltaičnih sistemov in nizkonapetostnih inštalacij. Omogoča izvedbo vseh inštalacijskih testov v skladu s standardi EN 61557, dodatno pa še izvedbo vseh potrebnih testov in meritev na fotovoltaičnih (PV) sistemih. To zajema vse teste tako kot je zahtevano v standardu EN 62446 kakor tudi meritve I – U karakteristike, preračun na STC vrednosti in meritve moči in energije na razsmernikovi DC in AC strani.

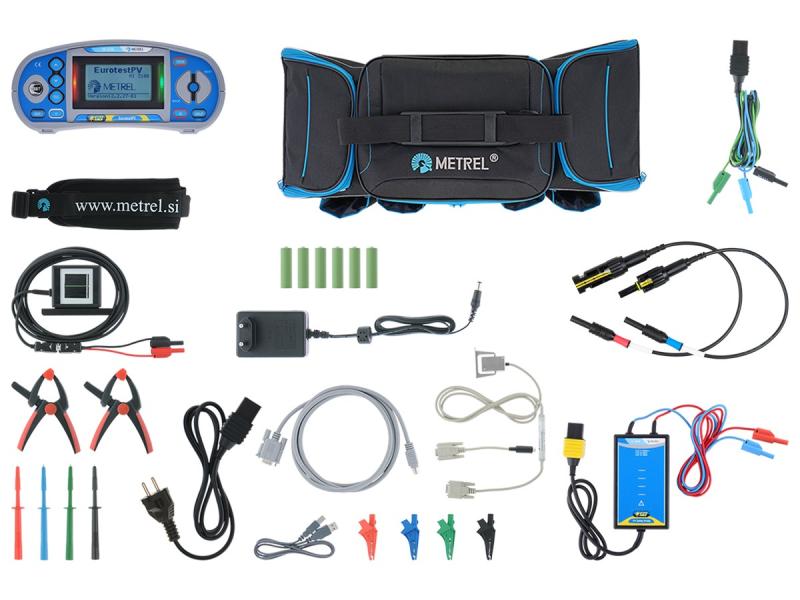

Seti
- Instrument EurotestPV
- Torba, 1 kos
- AC/DC Merilne klešče
- Upravljalec z merilno konico (3 žilni)
- Merilna vez, 3 x 1.5 m
- Merilna tipalka, 4 kosi (modra, črna, zelena, rdeča)
- Krokodil sponka, 4 kosi (modra, črna, zelena, rdeča)
- Pritrdilne klešče, 2 kosa
- FN Varnostna sonda (PV Safety Probe)
- FN MC3/4 adapteji
- PV merilna celica + adapter
- Temperaturni senzor + adapter
- Napajalni adapter + 6 NiMH akumulatorskih baterij, tip AA
- USB-kabel in RS232- in PS/2 kabla
- Komplet prenosnih pasov
- PC SW EuroLink PRO
- Kratko navodilo za uporabo
- Navodilo za uporabo in priročnik na CD-ju
- Akreditiran certifikat o kalibraciji

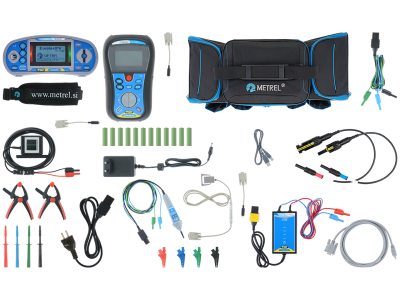

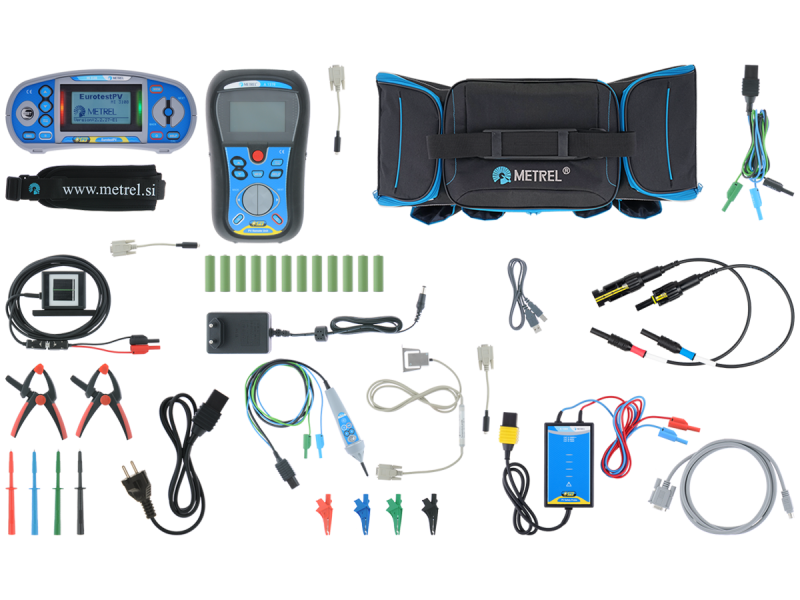

Priporočamo
- Instrument EurotestPV
- Torba, 1 kos
- FN Remote enota + adapter
- AC/DC Merilne klešče
- Upravljalec z merilno konico (3 žični)
- Merilna vez, 3 x 1.5 m
- Merilna tipalka, 4 kosi (modra, črna, zelena, rdeča)
- Krokodil sponka, 4 kosi (modra, črna, zelena, rdeča)
- Pritrdilne klešče, 2 kosa
- Varnostna sonda (PV Safety Probe)
- FN MC3/4 adapteji
- PV merilna celica + adapter
- Temperaturni senzor + adapter
- Napajalni adapter + 12 NiMH akumulatorskih baterij, tip AA
- USB-kabel in RS232- in PS/2 kabla
- Komplet prenosnih pasov, 2 kosa
- PC SW EuroLink PRO
- Kratko navodilo za uporabo, 2 kosa
- Navodilo za uporabo in priročnik na CD-ju
- Akreditiran certifikat o kalibraciji
Podprti standardi
Building LV Installation
- EISinsp Competences: Low Voltage Electrical Installation Safety Inspection
- EISc Competences: Low Voltage Electrical Installation Safety for Contractors and Maintainers
- IEC/EN 60364 Electrical Installations for Buildings series
- IEC/EN 60364-4-41 Electrical Installations for Buildings - Protection against electric shock
- IEC/EN 61008-1 Residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs)
- IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
- IEC/EN 61557-1 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 1: General requirements
- IEC/EN 61557-2 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 2: Insulation resistance
- IEC/EN 61557-3 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 3: Loop impedance
- IEC/EN 61557-6 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 6: Effectiveness of residual current devices (RCD) in TT, TN and IT systems
- IEC/EN 61557-7 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 7: Phase sequence
- IEC/EN 61557-10 Electrical safety in low voltage distribution systems up to 1 000 v a.c. and 1 500 v d.c. - Equipment for testing, measuring or monitoring of protective measures - Part 10: Combined measuring equipment for testing, measuring and monitoring of protective measures
- BS 7671 IEE Wiring Regulations (18th edition)
Earthing and lightning protection
- LPSinsp Competences: Lightning Protection of Buildings Inspection
- LPSc Competences: Lightning Protection of Buildings for Contractors and Maintainers
- IEC 62305 Protection against lightning - series
- IEC/EN 61557-5 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 5: Resistance to earth
- IEC/EN 61557-4 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 4: Resistance of earth connection and equipotential bonding
Photovoltaic systems
- PVV Competences: Photo Voltaic Installations Safety/Quality
- IEC / HD 60364-7-712 Low Voltage Electrical Installation Safety - Special installtions and locations
- IEC/EN 62446 Photovoltaic (PV) systems - Requirements for testing, documentation and maintenance
- IEC/EN 61829 Crystalline silicon photovoltaic (PV) array – On-site measurement of I / V characteristics
Power quality
- PQA Competences: Power Quality Analyzing & Reporting
- IEC/EN 61557-12 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 12: Power metering and monitoring devices (PMD)
Instrument safety towards user
- IEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use - series
- IEC/EN 61010-1 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements
EMC safety
- IEC/EN 61326 Electrical equipment for measurement, control and laboratory use - EMC requirements - series
- IEC/EN 61326-1 Electrical equipment for measurement, control and laboratory use - EMC requirements - Part 1: General requirements
Lastnosti
Merilne funkcije
Fotovoltaične inštalacije:
Meritve na DC strani PV inštalacij:
- Napetost, tok, moč
- Uoc (odprtozančna napetost) in Isc (kratkostični tok)
- I-U karakteristika PV modula in niza
- Osvetlitev in temperatura modula
Meritve na AC strani PV inštalacij:
- Napetost, tok, frekvenca, moč, PF, energija, harmoniki
- Izračun izkoristkov PV modulov, razsmernika in celotnega PV sistem
Električne inštalacije:
- Izolacijska upornost z DC napetostjo.
- Neprekinjenost zaščitnega vodnika PE.
- Impedanca inštalacije.
- Impedanca zanke.
- Impedanca zanke brez odklopa brez proženja RCD-ja.
- Testiranje RCD-jev (tip AC, A in B).
- Zemeljska upornost.• Meritev AC toka (breme, uhajavni tok).
- TRMS napetost, frekvenca in fazno zaporedje.
- Meritev moči, energije, harmonikov.
Ostale lastnosti
Fotonapetostne inštalacije:
- Izračun STC vrednosti: izmerjene tokovne in napetostne vrednosti so, skladno z okoljskimi pogoji, preračunane na vrednosti standardnih testnih pogojev (STC), kar omogoča primerjavo rezultatov več meritev tudi če so bile le-te narejene pod različnimi pogoji.
- Izračun izkoristka: 2 napetostna in 2 tokovna kanala za istočasno meritev AC in DC parametrov.
- FN remote enota: opcijska enota za istočasno meritev sončeve obsevanosti in temperature FN modula.
- Grafičen prikaz I-U krivulje modula na LCD prikazovalniku instrumenta.
Električne inštalacije:
- RCD Auto: samodejni RCD testni postopek, ki bistveno zmanjša čas testiranja.
- Trip Lock funkcija: testiranje impedance brez proženja RCD.
- Podpora za testiranje tip B RCD-jev.
- Meritev upornosti zemlje: instrument podpira 3-žično meritev upornosti zemlje.
- Vgrajene tabele varovalk za samodejno vrednotenje rezultatov meritev impedance kratkostične / okvarne zanke.
- Spremljanje napetosti: spremljanje vseh 3 napetosti v realnem času.
- Realno časovni U / I osciloskop.
- Analiza harmonikov: meritev 1-fazne moči in energije ter harmonska analiza do 11-tega harmonika.
- Spomin: možnost shranjevanja do 1800 testnih rezultatov in do 500 grafičnih rezultatov z v notranjem spominu.
- Bluetooth komunikacija: z Android mobilnimi napravami preko opcijskega Bluetooth vtičnika.
- Android aplikacija EuroLink PV za delo s podatki.
Programska oprema
- Programska oprema EuroLink PRO za snemanje, nalaganje, pregledovanje in analizo ter tiskanje testnih rezultatov.
Tehnični podatki
- Dimenzije (š x v x d): 230 x 103 x 115 mm.
- Masa (brez opcijskega pribora): 1.3 kg.
Specifikacije
Programska oprema
Prenosi
| Vrsta | Ime datoteke | Jezik | Verzija | Datum | Zapiski | Datoteka | Velikost | Online | Prenos |
|---|---|---|---|---|---|---|---|---|---|
| Datasheet | MI 3108 EurotestPV | sl | 2020 | 10.09.2020 | 789.85 KB | ||||
| Manual | MI 3108 EurotestPV | sl | 1.2.4 | 11.10.2022 | 20 752 084 | 3.86 MB | Prijava | ||
| DoC | EU Declaration of Conformity | Multi-Language | 10.08.2021 | QR code | Zunanja povezava | Neznano | |||
| PC Software | Photon Module DB | en | 2016 | 13.02.2017 | Readme | xls | 13.14 MB | Prijava | |
| PC Software | SW 0101 EuroLink PRO (EU) | en | 4.38 | 18.01.2022 | Readme | zip | 60.59 MB | Prijava | |
| Android | SW 1306 EurolinkPV Android | en | 04.01.2021 | QR code | Zunanja povezava | Neznano | |||
| Android | SW 1307 Eurolink Android | en | 04.01.2021 | QR code | Zunanja povezava | Neznano | |||
| Firmware | Firmware A 1378 | en | 2.09 | 28.08.2019 | zip | 345.49 KB | Prijava | ||
| Firmware | Firmware MI 3108 | en | 2.64 | 09.01.2023 | zip | 2.43 MB | Prijava | ||
