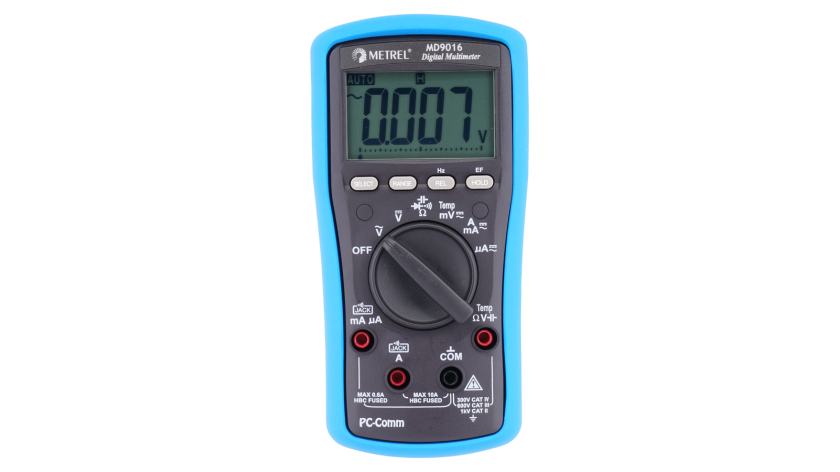

MD 9016 Electrical Field Service Multimeter

Digitalni multimetri

MD 9016 digitalni multimeter je popolna kombinacija velikosti, inovativnih funkcij za ugotavljanja večine električnih in elektrotehničnih problemov, ter vgrajene zmožnosti komuniciranja s osebnim računalnikom. Po zaslugi zaslona z velikimi, dobrimi berljivimi znaki in enoročnega upravljanja je MD 9016 tudi izredno enostaven za uporabo. Kompakten inštrument, ki združuje visoko raven funkcionalnosti in majhno velikost ter prenosnost.

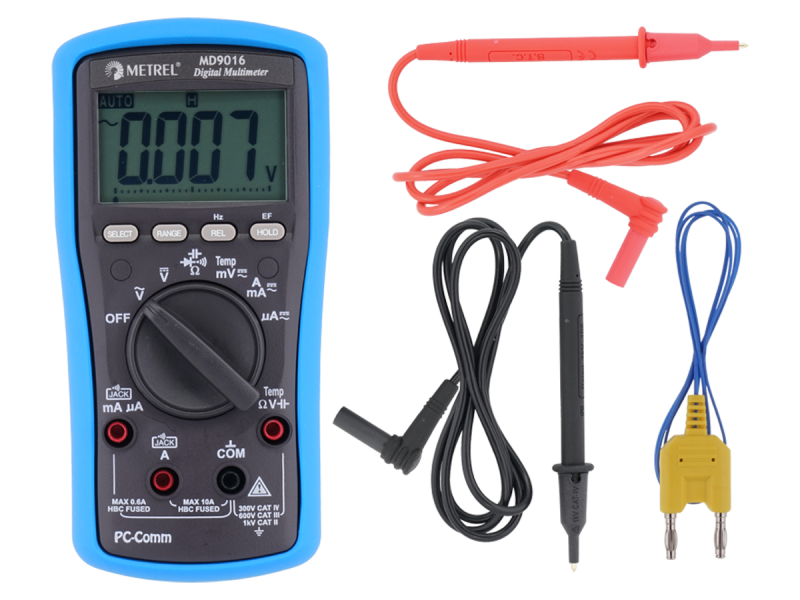

Seti

Podprti standardi

Instrument safety towards user

  • IEC/EN 55022 Information technology equipment - Radio disturbance characteristics
  • IEC/EN 61000 Electromagnetic compatibility (EMC) series
  • IEC/EN 61000-3-2 Electromagnetic compatibility (EMC) - Part 3-2 - Limits - Limits for harmonic current emissions (equipment input current ≤ 16 A per phase)
  • IEC/EN 61000-3-3 Electromagnetic compatibility (EMC) - Part 3-3 - Limits - Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current ≤ 16 A per phase and not subject to conditional connection
  • IEC/EN 61000-4-2 Electromagnetic compatibility (EMC)- Part 4-2: Testing and measurement techniques - Electrostatic discharge immunity test
  • IEC/EN 61000-4-3 Electromagnetic compatibility (EMC)- Part 4-3: Testing and measurement techniques - Radiated, radio-frequency, electromagnetic field immunity test
  • IEC/EN 61000-4-4 Electromagnetic compatibility (EMC) - Part 4-4: Testing and measurement techniques - Electrical fast transient/burst immunity test
  • IEC/EN 61000-4-5 Electromagnetic compatibility (EMC) - Part 4-5: Testing and measurement techniques - Surge immunity test
  • IEC/EN 61000-4-6 Electromagnetic compatibility (EMC) - Part 4-6: Testing and measurement techniques - Immunity to conducted disturbances, induced by radio-frequency fields
  • IEC/EN 61000-4-8 Electromagnetic compatibility (EMC) - Part 4-8: Testing and measurement techniques - Power frequency magnetic field immunity test
  • IEC/EN 61000-4-11 Electromagnetic compatibility (EMC) - Part 4-11: Testing and measurement techniques - Voltage dips, short interruptions and voltage variations immunity tests
  • The Low Voltage Directive LVD 2006/95/EC Electrical equipment designed for use within certain voltage limits
  • Directive EMC 2004/108/EC on electromagnetic compatibility
  • IEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use - series
  • IEC/EN 61010-1 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements
  • IEC/EN 61010-031 Amendment 1 - Safety requirements for electrical equipment for measurement, control and laboratory use - Part 031: Safety requirements for hand-held and hand-manipulated probe assemblies for electrical test and measurement
  • IEC/EN 61010-2-030 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-030: Particular requirements for equipment having testing or measuring circuits
  • IEC/EN 61010-2-033 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-033: Particular requirements for hand-held multimeters and other meters for domestic and professional use, capable of measuring mains voltage

EMC safety

  • IEC/EN 61326 Electrical equipment for measurement, control and laboratory use - EMC requirements - series
  • IEC/EN 61326-1 Electrical equipment for measurement, control and laboratory use - EMC requirements - Part 1: General requirements

Lastnosti

Merilne funkcije

  • Merjenje enosmerne in izmenične napetosti
  • Merjenje enosmernega in izmeničnega toka
  • Merjenje kapacitivnosti
  • Merjenje upornosti
  • Preizkušanje diod
  • Merjenje omrežne frekvence
  • Preizkušanje povezav
  • Zaznavanje napetosti in elektromagnetnega polja brez dotika
  • Merjenje temperature

Tehnični podatki

  • dimenzije (š x v x d): 80 x 50 x 161 mm
  • teža (brez pribora): 340 g

Specifikacije

Prenosi

Vrsta Ime datoteke Jezik Verzija Datum Zapiski Datoteka Velikost Online Prenos
Datasheet MD 9016 Digitalni multimeter sl 2019 14.11.2019 pdf 303.25 KB
DoC EU Declaration of Conformity Multi-Language 10.08.2021 QR code Zunanja povezava Neznano
PC Software SW 1310 Data Recording Multi-Language 1.1.1 23.03.2021 zip 4.98 MB Prijava
USB driver USB driver (DMM) en 1.1.1 23.03.2021 zip 13.62 MB
