MI 3325 MultiServicerXD Priporočamo

Testerji električnih strojev in stikališč

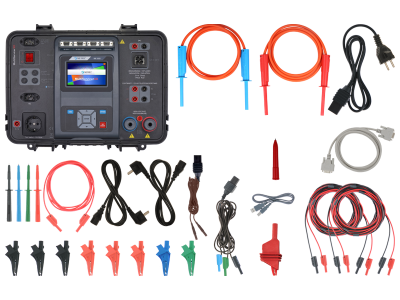

MI 3325 MultiServicerXD je vrhunski večfunkcijski instrument namenjen uporabi v širokem spektru industrijskih testnih in merilnih aplikacij, kjer ste potrebni izjemna zanesljivost in trpežnost. V Metrelovem produktnem portfelju je naslednik modela MI 3321 MultiServicerXA od katerega se razlikuje po bistveno širšemu naboru podprtih testnih in merilnih funkcij ter še večji enostavnosti uporabe. Novi MI 3325 MultiServicerXD je zasnovan na popolnoma novi strojni platformi, ki med drugim podpira na dotik občutljiv barvni zaslon, napredni sistem za organizacijo rezultatov meritev, SD kartico večje kapacitete za shranjevanje podatkov in AUTO SEQUENCE® samodejne testne sekvence.

Seti

Podprti standardi

Building LV Installation

  • EISinsp Competences: Low Voltage Electrical Installation Safety Inspection
  • EISc Competences: Low Voltage Electrical Installation Safety for Contractors and Maintainers
  • IEC/EN 60364 Electrical Installations for Buildings series
  • IEC/EN 60364-4-41 Electrical Installations for Buildings - Protection against electric shock
  • IEC/EN 61008-1 Residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs)
  • IEC/EN 61009 Residual current operated circuit-breakers with integral overcurrent protection for household and similar uses (RCBOs)
  • AS / NZ 3017 Electrical installations – Verification guidelines
  • BS 7671 IEE Wiring Regulations (18th edition)

Electrical switchboards safety

  • ESB Competences: Electrical Switchboards Safety Testing
  • IEC/EN 61439-1 Low-voltage switchgear and controlgear assemblies - Part 1: General rules
  • IEC/EN 62271 High-voltage switchgear and controlgear - series
  • IEC/EN 62271-1 High-voltage switchgear and controlgear - Part 1: Common specifications for alternating current switchgear and controlgear
  • IEC/EN 62271-100 High-voltage switchgear and controlgear - Part 100: Alternating current circuit-breakers

Machine safety

  • MST Competences: Machines Electrical Safety Testing
  • IEC/EN 50191 Erection and operation of electrical test equipment
  • IEC/EN 60204-1 Safety of machinery - Electrical equipment of machines - Part 1: General requirements
  • IEC/EN 62368-1 Audio/video, information and communication technology equipment - Part 1:Safety requirements
  • IEC/EN 60950 Information technology equipment – Safety
  • IEC/EN 61180 High-voltage test techniques for low-voltage equipment - Definitions, test and procedure requirements, test equipment
  • IEC/EN 61557-14 Electrical safety in low voltage distribution systems up to 1 000 V a.c and 1 500 V d.c - Equipment for testing,measuring or monitoring of protective measures - Part 14: Equipment for testing the safety of electrical equipment for machinery

Portable appliances safety

  • PAT Competences: Portable Appliances Safety Testing
  • AWE Competences: Arc Welding Equipment Safety Testing
  • EN 50699 Recurrent Test of Electrical Equipment
  • EN 50678 General procedure for verifying the effectiveness of the protective measures of electrical equipment after repair
  • IEC/EN 60335-1 Household and similar electrical appliances - Safety
  • IEC/EN 60598-1 Luminaires - Part 1: General requirements and tests
  • AS / NZ 3760 In-service safety inspection and testing of electrical equipment
  • VDE 0701 Inspection after repair, modification of electrical appliances - periodic
  • VDE 0702 Inspection on electrical appliances - general requirements for electrical safety
  • IEC/EN 60974-4 Arc welding equipment - Part 4: Periodic inspection and testing
  • IET COP 5th Ed., In-service Inspection and Testing of Electrical Equipment

Instrument safety towards user

  • IEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use - series
  • IEC/EN 61010-031 Amendment 1 - Safety requirements for electrical equipment for measurement, control and laboratory use - Part 031: Safety requirements for hand-held and hand-manipulated probe assemblies for electrical test and measurement
  • IEC/EN 61010-2-030 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-030: Particular requirements for equipment having testing or measuring circuits

EMC safety

  • IEC/EN 61326-1 Electrical equipment for measurement, control and laboratory use - EMC requirements - Part 1: General requirements
  • IEC/EN 61326-2 Electrical equipment for measurement, control and laboratory use - EMC requirements - Part 2-2: Particular requirements - Test configurations, operational conditions and performance criteria for portable testing, measuring and monitoring equipment used in low-voltage distribution systems

Lastnosti

Merilne funkcije

  • Meritve neprekinjenosti (2-žična, 4-žična) 0,2 A, 4 A, 10 A, 25 A + padec napetosti pri 10 A,
  • Meritve HV AC, HV AC programirljive 100 V – 5000 V,
  • Meritve izolacijske upornosti (Riso, Riso-S) 50 V, 100 V, 250 V, 500 V, 1000 V (DC),
  • Meritve pod-uhajavnega toka, (Isub, Isub-S) 110 V AC, 230 V AC,
  • Meritve Z loop impedance okvarne zanke in okvarnega toka (Ipsc, pe, Uc(P)),
  • Meritve Zs rcd impedance okvarne zanke in okvarnega toka v sistemih z RCD (Ipsc, pe, Uc(P)),
  • Meritve Z-line impedance in kratkostičnega toka (Ipsc, Uln),
  • Testiranje funkcionalnosti (moč P/S/Q, napetost, tok, cos fi, frekvenca, ThdU, ThdI, PF),
  • Meritve uhajavnega toka dotika,
  • Testiranje RCD (RCD Uc, RCD t, RCD I),
  • Meritve diferencialnega uhajavnega toka,
  • Meritve PE uhajavnega toka,
  • Meritve polaritete,
  • Meritve toka klešč,
  • Meritve napetosti, frekvence in faznega zamika,
  • Testiranje varistorjev,
  • Meritve padca napetosti,
  • Meritve časa praznjenja.

Ostale lastnosti

  • Barvni prikazovalnik: 3.4 inčni barvni LCD in na dotik občutljiv prikazovalnik,
  • Dvojno upravljanje: tipkovnica in na dotik občutljiv zaslon omogočata uporabniku upravljanje na način, ki mu je najlažji,
  • Prednastavljene AUTOSEQUENCE®: omogočajo uporabniku enostavno in hitro izvedbo testnih sekvenc za izbrano napravo,
  • Podpora za testiranje RCD-jev: A, AC, B, B+ in F,
  • Testiranje varilnih aparatov (samo v kombinaciji z A 1422 Active 3-phase adapter Plus) v skladu s standardom IEC/EN 60974-4,
  • Funkcionalni pregledi,
  • Vizualni pregledi,
  • Uporabniško ustvarjeni pregledi (vizualni in funkcionalni),
  • Vgrajeni meniji za pomoč na terenu,
  • Vgrajene tabele varovalk za samodejno vrednotenje line/loop rezultatov meritev impedance,
  • Spremljanje vseh 3 napetosti v realnem času,
  • Hi-pot: visokonapetostni AC (5 kV pri 250 VA) test,
  • Neprekinjenost: 4-vodni test neprekinjenosti s selektivnim testnim tokom (0,2 A, 4 A, 10 A, 25 A) za večjo natančnost meritev,
  • Komunikacija: 4 - RS-232, Ethernet, USB in
  • Bluetooth komunikacijski terminali za snemanje ter nalaganje podatkov in daljinsko upravljanje inštrumenta,
  • Testiranje na več sistemih: instrument se lahko uporablja za TT, TN in IT ter 115 V sisteme,
  • Samodejni postopek testiranja RCD-jev (RCD AUTO),
  • Samodejni postopek testiranja impedance (Z AUTO),
  • Filtriranje meritev na osnovi izbrane področne skupine,
  • Velik spomin: podpora za microSD kartice, 8 GB kartica je že vgrajena v instrument, vendar se lahko razširi na 32 GB,
  • Metrel ES Manager PC programska oprema: omogoča izdelavo testnih struktur, uporabniško zasnovanih AUTOSEQUENCE® samodejnih testnih sekvenc, profesionalnih testnih poročil.

Programska oprema

Metrel ES Manager programska oprema: omogoča izdelavo testnih struktur, uporabniško prikrojenih AUTOSEQUENCE® testnih sekvenc, profesionalnih poročil in prenos podatkov za arhiviranje.

Tehnični podatki

  • Dimenzije (š x v x d): 420 x 325 x 180 mm
  • Masa: 13,3 kg
