Class A power quality analysers

Power Quality Analysis

Power quality is a broad term that traditionally encompasses voltage, frequency and waveform of a power supply system and how well or poor they conform to established specifications. Poor power quality translates to inefficient and even dangerous operation of supplied electrical systems and may lead to damage to connected equipment and risk of fire or electrocution and loss of production.

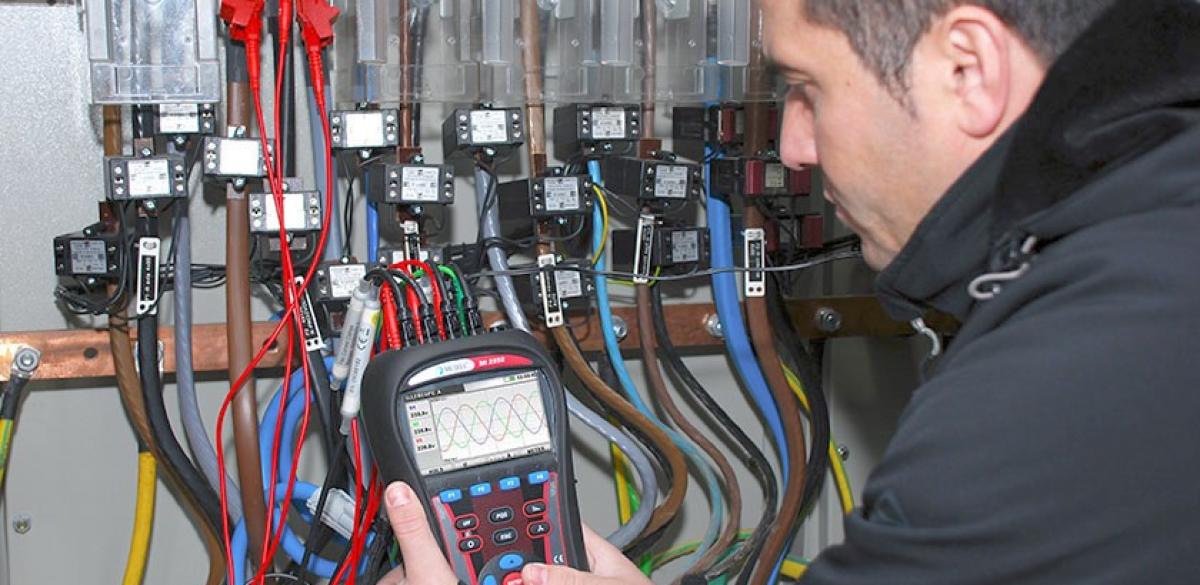

Metrel offers class A power quality analysers that are suitable for advanced troubleshooting of even the most complex electrical systems. Detect, record and analyse voltage dips, swells, sags, harmonic and interharmonic components and transients and other power quality events with ease.

Features*

  • Voltage TRMS, peak, crest factor (4-channel), 0 … 1000 Vrms measurement.
  • Current TRMS, peak, crest factor (4-channel), automatic clamp recognition measurement.
  • Power (fundamental, non-fundamental, combined, active, reactive, apparent), power factor, cos fi, unbalance measurement and analysis.
  • Power harmonic analysis.
  • Harmonic pollution analysis.
  • Energy (fundamental, non-fundamental, combined, active, reactive, apparent, generated, consumed) measurement.
  • Harmonic analysis up to the 50th harmonic, THD, TID, TDD measurement, K-factor.
  • VFD measurement.
  • Support for 50/60 Hz, 400 Hz systems.
  • Power measurement: IEEE 1459 / classic (vector, arithmetic).
  • Flicker measurement.
  • Waveform display and transient snapshotting.
  • Fast logging and inrush current recording.
  • Recording of fast transients.
  • Analysis of signalling.
  • Temperature measurement.
  • Fast troubleshooting due to on-screen displaying of trends and captured events.
  • Capture of voltage events and user defined alarms.
  • GPS time synchronization.
  • Internal memory for recording over one year period (exchangeable SD card).
  • The analyser, or a group of them, can be remotely controlled and programmed via GPRS/Wi-Fi modem.
  • Automatic voltage and power quality analysis according to EN 50160 with PASS / FAIL limit evaluation, including flickers and harmonics.
  • Creation of reports in accordance with IEEE-519 Recommended Practice and Requirements for Harmonics Control in Electric Power Systems.
  • Creation of energy demand reports.
  • Compliance with power quality standard IEC 61000-4-30 Class A. Predefined recorder profile for EN 50160 survey.
  • Useful for discovering voltage sags and swells, resonant states, high neutral conductor currents in 3-phase systems, asymmetry, transients.
  • Useful in design of filtering systems, power correction equipment, over voltage protection and UPS systems.
  • PC software Power3.0 for download, management and analysis of results and data.



*Note: Presented features, functionalities and other information on this page represent a compound list of all products’ capabilities and not capabilities of each separate product. Consult datasheets and user manuals of each specific product for detailed information about supported features and functionalities.

Applications*

  • Power generation.
  • Renewable powerplants.
  • Hydroelectric power.
  • Power distribution.
  • Recordnig transients of switching manoeuvers.
  • Uninterruptible power supply.
  • Power quality reports.
  • Effects of power quality issues on living and working environment.
  • Power quality.
  • Uninterruptible power supply in healthcare.



*Note: Presented features, functionalities and other information on this page represent a compound list of all products’ capabilities and not capabilities of each separate product. Consult datasheets and user manuals of each specific product for detailed information about supported features and functionalities.
