MI 3155 EurotestXD Featured

Multifunctional testers

MI 3155 EurotestXD is the newest flagship of Metrel’s most advanced line of multi-functional measuring instruments and is designed specifically for testing in industry. What differentiates this instrument from the rest is its ergonomic design and an intuitive user interface, encompassing a memory organizer and fully programmable AUTO SEQUENCEs, managed through a large colour touch screen display. It is fully compliant with functionality standards (e.g. IEC/EN 61557) and other reference standards for testing (e.g. IEC/EN/HD 60364-4-41,...) as is required for any instrument that performs TRMS current measurements, RCD tests, line and loop impedance tests with 3 (and 4) wires and earth resistance measurements. Besides those, the instrument supports a wide range of tests and measuring functions, including on-line voltage monitoring, phase sequence testing, varistor testing, PI/DAR calculation, luminance measurement, discharge time testing, ISFL measurements, IMD tests as well as functional and visual inspections.

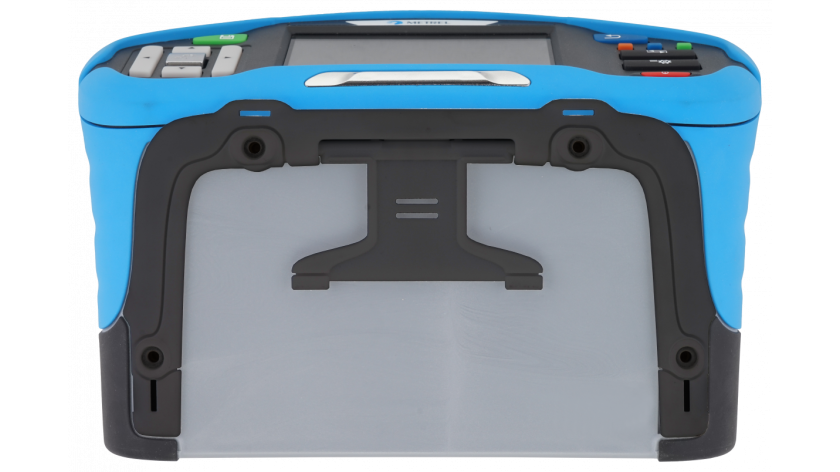

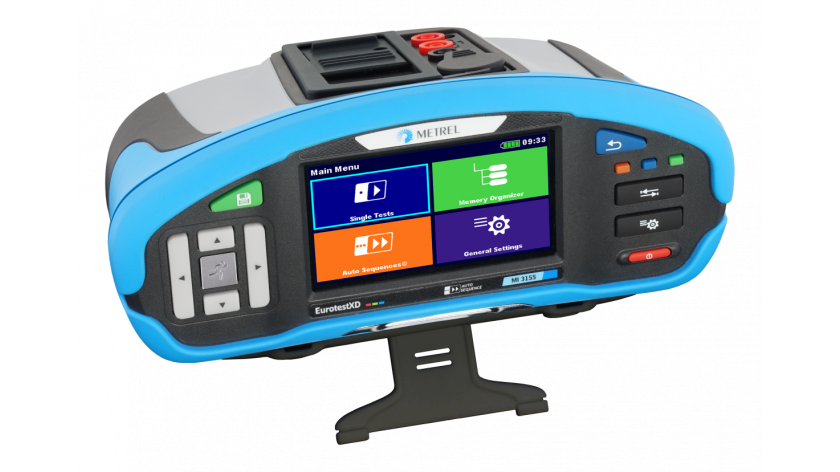

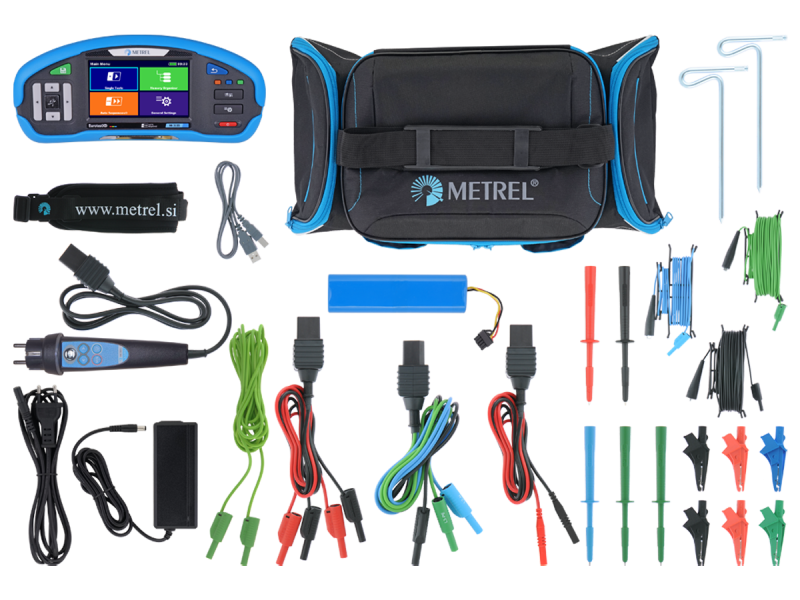

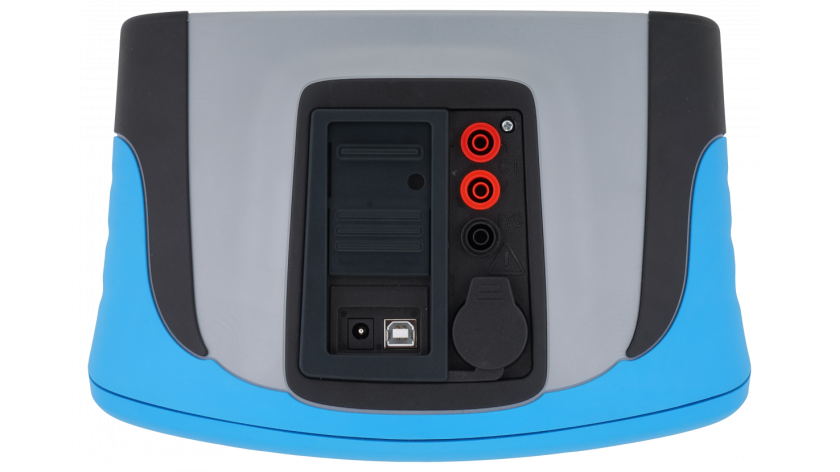

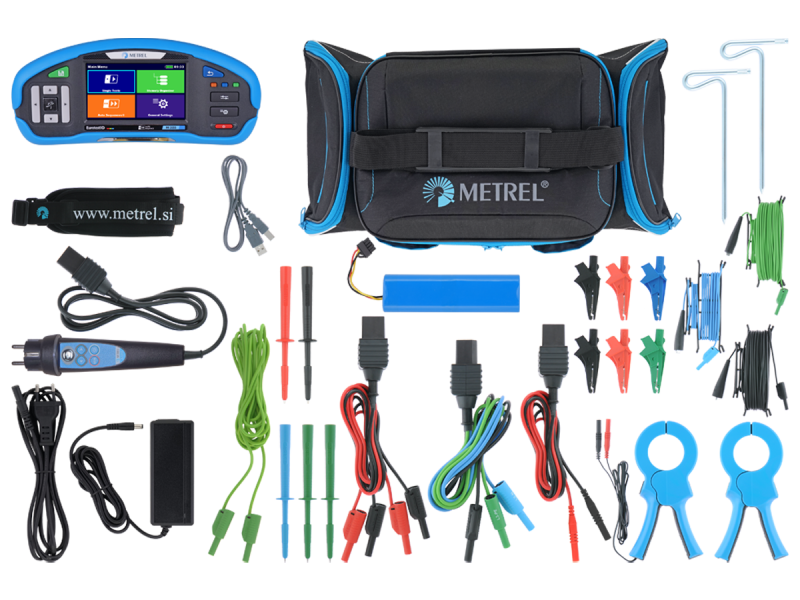

Sets

Standards applied

Building LV Installation

  • EISinsp Competences: Low Voltage Electrical Installation Safety Inspection
  • EISc Competences: Low Voltage Electrical Installation Safety for Contractors and Maintainers
  • IEC/EN 60364 Electrical Installations for Buildings series
  • IEC/EN 60364-6 Electrical Installations for Buildings - Verification
  • IEC/EN 60364-4-41 Electrical Installations for Buildings - Protection against electric shock
  • IEC/EN 60755 General safety requirements for residual current operated protective devices
  • IEC/EN 61008-1 Residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs)
  • IEC/EN 61009 Residual current operated circuit-breakers with integral overcurrent protection for household and similar uses (RCBOs)
  • IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
  • IEC/EN 61557-1 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 1: General requirements
  • IEC/EN 61557-2 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 2: Insulation resistance
  • IEC/EN 61557-3 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 3: Loop impedance
  • IEC/EN 61557-6 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 6: Effectiveness of residual current devices (RCD) in TT, TN and IT systems
  • IEC/EN 61557-7 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 7: Phase sequence
  • IEC/EN 61557-10 Electrical safety in low voltage distribution systems up to 1 000 v a.c. and 1 500 v d.c. - Equipment for testing, measuring or monitoring of protective measures - Part 10: Combined measuring equipment for testing, measuring and monitoring of protective measures
  • IEC/EN 61557-11 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 11: Effectiveness of residual current monitors (RCM) in TT, TN and IT systems
  • IEC/EN 60364-7 Electrical Installations for Buildings - Requirements for special installations or locations
  • VDE 0413 (IEC 61557) Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
  • AS / NZ 3017 Electrical installations – Verification guidelines
  • AS / NZ 3018 Electrical installations - Domestic installations
  • BS 7671 IEE Wiring Regulations (18th edition)
  • CEI 64.8 V4 rated electrical equipment not exceeding 1,000 VAC and 1,500V DC current

Earthing and lightning protection

  • LPSinsp Competences: Lightning Protection of Buildings Inspection
  • LPSc Competences: Lightning Protection of Buildings for Contractors and Maintainers
  • IEC 62305 Protection against lightning - series
  • IEC/EN 61557-5 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 5: Resistance to earth
  • IEC/EN 61557-4 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 4: Resistance of earth connection and equipotential bonding

Electrical Energetics

  • EEA Competences: Electrical Energetic Installations with Automatic Trip-Out Ability
  • IEC/EN 60909-0 Short-circuit currents in three-phase a.c. systems - Part 0: Calculation of currents
  • IEC / EN 60947-2 Low-voltage switchgear and controlgear – Part 2: Circuit-breakers

Earthing and Grounding

  • EES Competences: Electrical Energetic Systems Earthing and Grounding Safety
  • HD 637 S1 Power installations exceeding 1 kV a.c.
  • IEEE Guide for Safety in AC Substation Grounding
  • IEEE 81-2012 IEEE Guide for Measuring Earth Resistivity, Ground Impedance, and Earth Surface Potentials of a Grounding System
  • IEEE 142 Recommended Practice for Grounding of Industrial and Commercial Power Systems
  • IEEE 367-2012 - IEEE Recommended Practice for Determining the Electric Power Station Ground Potential Rise and Induced Voltage from a Power Fault
  • EN 50522 Earthing of power installations exceeding 1 000 V a.c.
  • RAT 2008 Spanish high-voltage regulation

Power quality

  • PQA Competences: Power Quality Analyzing & Reporting
  • IEC/EN 61557-12 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 12: Power metering and monitoring devices (PMD)

Electrical switchboards safety

  • ESB Competences: Electrical Switchboards Safety Testing
  • IEC/EN 62271 High-voltage switchgear and controlgear - series
  • IEC/EN 62271-1 High-voltage switchgear and controlgear - Part 1: Common specifications for alternating current switchgear and controlgear
  • IEC/EN 62271-100 High-voltage switchgear and controlgear - Part 100: Alternating current circuit-breakers

Machine safety

  • MST Competences: Machines Electrical Safety Testing
  • IEC/EN 50191 Erection and operation of electrical test equipment
  • IEC/EN 61557-14 Electrical safety in low voltage distribution systems up to 1 000 V a.c and 1 500 V d.c - Equipment for testing,measuring or monitoring of protective measures - Part 14: Equipment for testing the safety of electrical equipment for machinery

Mobile Units Electrical Safety

  • eMOB Competences: Electrical LV Installations in Mobile Units Safety
  • IEC/EN/HD 60364-7-717 Low-voltage electrical installations: Requirements for special installations or locations – Supplies for Electrical Vehicles

Electrical Vehicle Supply Equipment

  • EVSE Competences: Electrical Vehicle Supply Equipment Safety
  • IEC/EN 61851 Electric vehicle conductive charging system
  • IEC/EN 62752 In-cable control and protection device for mode 2 charging of electric road vehicles (IC-CPD)
  • IEC/EN 62955 Residual direct current detecting device (RDC-DD) to be used for mode 3 charging of electric vehicles

Medical and surgery rooms' installations

  • MEDi Competences: Medical and Surgery Rooms Electrical Installations Safety
  • IEC/EN 60364-7-710 Requirements for special installations or locations – Medical Location

Instrument safety towards user

  • IEC/EN 62133 Secondary cells and batteries containing alkaline or other non-acid electrolytes –Safety requirements for portable sealed secondary cells, and for batteries made from them, for use in portable applications
  • IEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use - series
  • IEC/EN 61010-1 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements

EMC safety

  • IEC/EN 61326 Electrical equipment for measurement, control and laboratory use - EMC requirements - series
  • IEC/EN 61326-1 Electrical equipment for measurement, control and laboratory use - EMC requirements - Part 1: General requirements

Properties

Measuring functions

  • Live Transformer’s Impedance Measurement with Four Wire Test;
  • Hi-precision Short Circuit Current evaluation with Calculated Hot factor;
  • 3-wire test of PE (RPE function) without extension lead conductor;
  • Autotest insulation function between L-N, N-PE and L-PE (R ISO ALL function);
  • 4 wire continuity test;
  • Insulation resistance with DC voltage from 50 V to 2500 V and PI, DAR calculation;
  • Varistor test;
  • Continuity of PE conductors with 200 mA DC test current with polarity change;
  • Continuity of PE conductors with 7 mA test current without RCD tripping;
  • 2-wire and 3-wire loop impedance (L-PE) measurement with Trip Lock RCD function;
  • Touch voltage / Contact voltage measurement with external P/S probe.
  • 2-wire and 3-wire high-current loop impedance (L-PE) measurement;
  • 3-wire loop impedance (L-PE) measurement with Trip Lock RCD function;
  • 1-phase / 3-phase TRMS voltage and frequency measurements;
  • Line, loop and RCD measurements at frequency range 16 ... 400 Hz;
  • Phase sequence;
  • Power and THD measurement (up to the 12th harmonic);
  • RCD testing (general and selective, type AC, A, F, B, B+, MI RCD, EV RCD, PRCD, PRCD-K, PRCD-S);
  • Earth resistance (3-wire and 2-clamps method);
  • Specific earth resistance with Ro-adapter (option);
  • TRMS leakage and load currents (option);
  • First fault leakage current (ISFL);
  • Testing of Insulation Monitoring Devices (IMDs);
  • Machine mode support with time discharge;
  • Illumination (option);
  • High resolution Loop impendance (mΩ) (option);
  • EVSE (Electrical Vehicle Supply Equipment) support (option);
  • Determining location of cables (option);
  • QR and/or barcode scanner support (option).

Key features

  • Programmable AUTO SEQUENCEs. *
  • Predefined profile dependent
  • AUTO SEQUENCEs.
  • Predefined Automatic tests:
        Auto TT (U, Zln, Zs, Uc);
        Auto TN/RCD (U, Zln, Zs, Rpe);
        Auto TN (U, Zln, Zlpe, Rpe);
        Auto IT (U, Zln, Isc, Isfl, IMD).

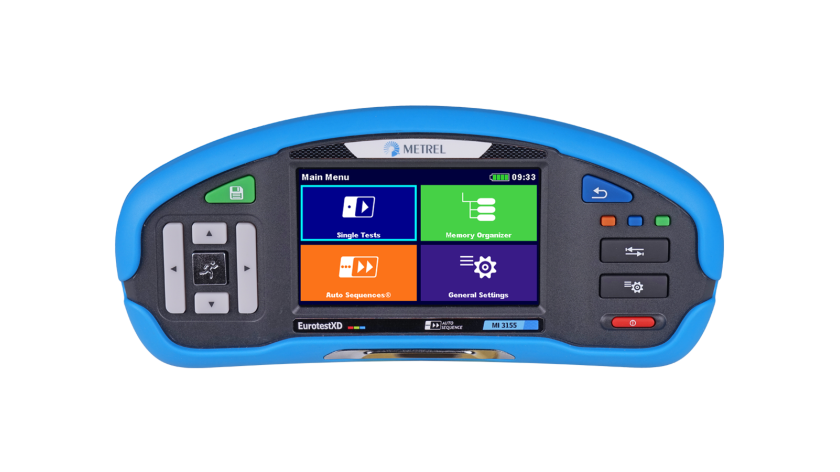

  • High resolution colour touch screen, 4.3” TFT
  • Functional inspections.
  • Visual inspections.
  • Custom inspections (visual and functional) which may be incorporated into AUTO SEQUENCEs.
  • EVSE AUTO SEQUENCEs and function inspections.
  • Machine functional and visual inspections.
  • Built-in help screens for referencing on site.
  • Built-in fuse tables for automatic evaluation of the line / loop impedance result.
  • Monitoring of all 3 voltages in real-time.
  • Automatic polarity reversal on continuity test.
  • Automated RCD testing procedure (RCD AUTO).
  • Automated Impedance testing procedure (Z AUTO).
  • Measurement filtering according  to the selected area group.
  • Built-in charger and rechargeable batteries as standard accessory.
  • BT communication with PC, Android tablets and smart phones via built-in BT.
  • PC SW Metrel ES Manager (structure and report creation, data upload/download). *
  • Optional aMESM Android APP (structure and report creation, data upload/download). **

* Available with MESM PRO licence
** Available with EU Set

Technical data

  • Dimensions (w x h x l): 252 x 111 x 165 mm.
  • Mass (without accessories): 1.78 kg.

Applications

e-Mobility

  • Renewable power and car charging

Railways

  • Remote antenna tower earthing resistance

Low voltage electrical installation safety

  • Substation electrical safety
  • Mains bonding and touch voltages during fault
  • Switchboards and automatic trip-out protection
  • Public places electrical safety

Low voltage earthing and lightning protection

  • Earthing measurement with fall of potential method
  • 2-clamps method for measuring lightning and earth protection
  • Surge protection devices

Low voltage power quality

  • Effects of power quality issues on living and working environment

Special locations

  • Wet and outdoor locations
  • IT system
  • DC installations
  • EVSE construction and testing

Hospital earthing and lightning protection

  • Two clamps method for measuring lightning and earth protection
  • Hospital earthing measurement with fall of potential method
  • Mains bonding and touch voltages during fault current
  • Surge protection devices in hospitals

Power supply and power distribution

  • Hospital switchboards and automatic trip-out protection

Surgery rooms or operating theatres

  • Medical IT system
  • Isolated areas RCDs

Patient recovery rooms and hospital wards

  • Public and workspace electrical safety in healthcare
  • Electrical safety in hospital wet areas

Secondary power sources in healthcare

  • Generator safety
  • Ambulances
  • Field hospital

Specifications
