MI 3144 Euro Z 800 V Featured
Other instruments / adapters / accessories

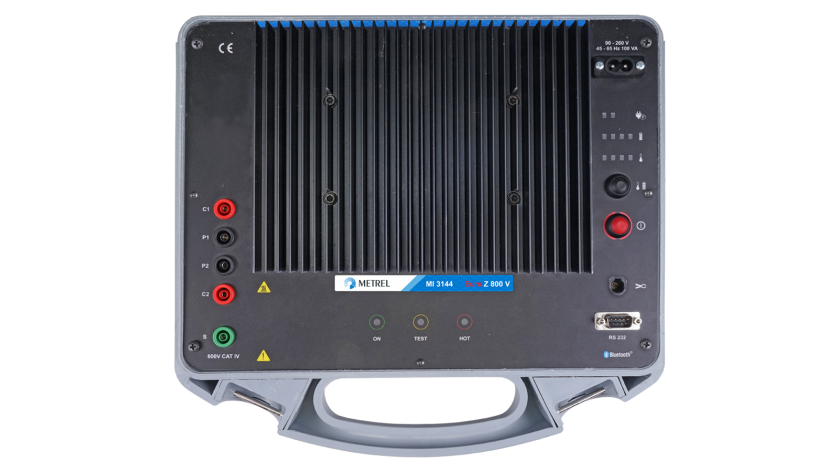

The MI 3144 Euro Z 800 V is a multifunctional, portable battery (Li-ion) or mains powered test instrument with excellent IP protection: IP65 (case closed), IP54 (case opened). It can be controlled via an Android app A 1522 aMESM, MI 3152 EurotestXC, MI 3152H EurotestXC 2.5kV, MI 3155 EurotestXD or MI 3325 MultiServicerXD. The MI 3144 Euro Z 800 V is intended for measuring the effectiveness of automatic trip out protection in case of faults in transformers and other HV equipment. With its high precision line and loop impedance measurements on AC and DC circuits, high current dR 300A loop and line measurements for testing of partial currents and partial voltage drops, it is ideal for testing in industrial settings. It also supports contact voltage measurements, ELR electrical leakage relay testing with fault current injection, trip-out time measurement and DC source, line, battery and accumulator measurements.

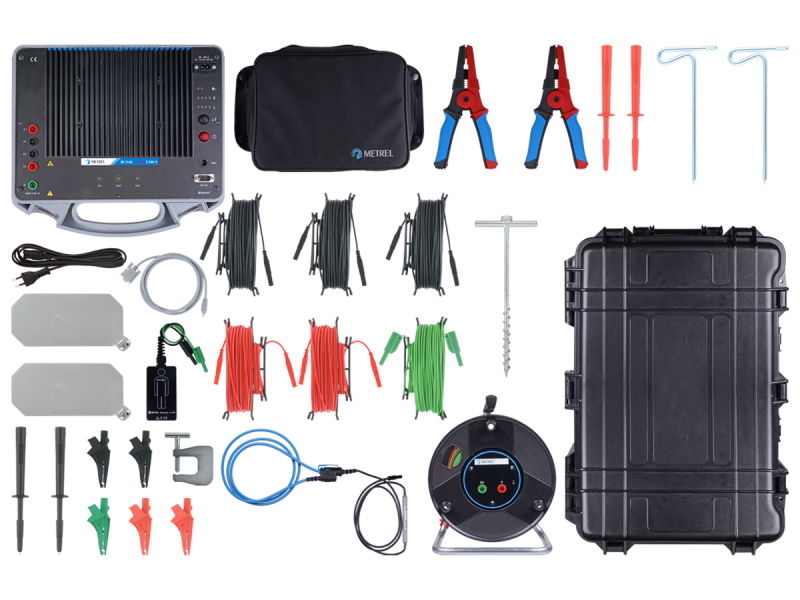

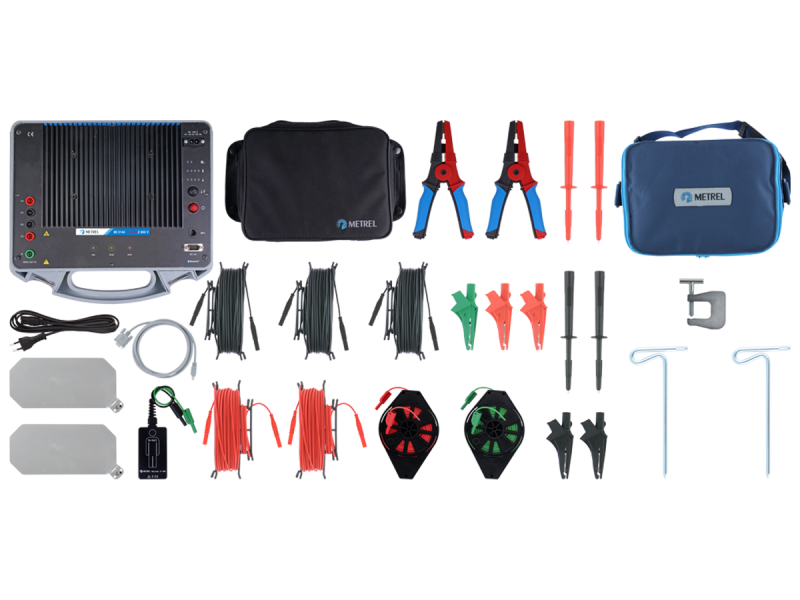

Sets
- Instrument MI 3144 Euro Z 800 V
- Mains cable
- RS232-PS/2 cable
- Test lead 5 m, black, 2 pcs
- Test lead 5 m, red, 2.5 mm2, 2 pcs
- Test lead 50 m, red, 2.5 mm2*
- Test lead 20 m, black
- Test lead 50 m, green*
- Large Kelvin test clip, 2 pcs
- Crocodile clip, black, 2 pcs
- Crocodile clip, red, 2 pcs
- Crocodile clip, green
- Test probe, black, 2 pcs
- Test probe, red , 2 pcs
- G clamp
- Human body resistance probe
- Test rod, 2 pcs
- Step voltage plates, 2 pcs
- Metrel aMESM Android PRO P 1102-AND licence key integrated in instrument
- Short instruction manual
- Calibration certificate
- Protective bag for accessories
- Soft carrying bag*
Featured
- MI 3144 ST
- Test lead 5 m, green
- Test lead on a cable reel, 75 m, red, 2.5 mm2, green
- Professional current earth spike, 42 cm
- 1-phase flexible current clamp 3000 / 300 / 30 A / 1 V (A 1609) with 5m current clamp extension cable (A 1648)
- Metrel aMESM Android PRO P 1102-AND licence key integrated in instrument
- Jumbo case with extension cable reel mount
Standards applied
Building LV Installation
- EISinsp Competences: Low Voltage Electrical Installation Safety Inspection
- EISc Competences: Low Voltage Electrical Installation Safety for Contractors and Maintainers
- IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
- IEC/EN 61557-3 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 3: Loop impedance
Earthing and lightning protection
- LPSinsp Competences: Lightning Protection of Buildings Inspection
- LPSc Competences: Lightning Protection of Buildings for Contractors and Maintainers
- IEC 62305 Protection against lightning - series
Electrical Energetics
- EEA Competences: Electrical Energetic Installations with Automatic Trip-Out Ability
- IEC/EN 60909-0 Short-circuit currents in three-phase a.c. systems - Part 0: Calculation of currents
- IEC / EN 60947-2 Low-voltage switchgear and controlgear – Part 2: Circuit-breakers
Earthing and Grounding
- EES Competences: Electrical Energetic Systems Earthing and Grounding Safety
- HD 637 S1 Power installations exceeding 1 kV a.c.
- IEEE Guide for Safety in AC Substation Grounding
- IEEE 81-2012 IEEE Guide for Measuring Earth Resistivity, Ground Impedance, and Earth Surface Potentials of a Grounding System
- IEEE 142 Recommended Practice for Grounding of Industrial and Commercial Power Systems
- IEEE 367-2012 - IEEE Recommended Practice for Determining the Electric Power Station Ground Potential Rise and Induced Voltage from a Power Fault
- EN 50522 Earthing of power installations exceeding 1 000 V a.c.
- RAT 2008 Spanish high-voltage regulation
Electrical switchboards safety
- ESB Competences: Electrical Switchboards Safety Testing
- IEC/EN 62271 High-voltage switchgear and controlgear - series
- IEC/EN 62271-1 High-voltage switchgear and controlgear - Part 1: Common specifications for alternating current switchgear and controlgear
- IEC/EN 62271-100 High-voltage switchgear and controlgear - Part 100: Alternating current circuit-breakers
Portable appliances safety
- IEC/EN 60974 Arc welding equipment series
- IEC/EN 60974-2 Arc welding equipment - Part 2: Liquid cooling systems
Properties
Key features
- High orecision 4-wire 300 A Z Line and Z Loop Impedance Tester;
- High range impedance measurements in 800 V / 16 ... 420 Hz AC networks;
- DC Source & Line Resistance measurements in 3 ... 260 V DC networks;
- Hi Current dR 300 A 4-wire Partial Voltage drops and Current's Path Resistances;
- Earth Leakage Relay (ELR) Trip-out Testing Time and Current;
- ELR supported types AC, A, B;
- Ground fault analysis with contact, touch and step voltage;
- Floating voltmeter for partial contact results;
- One-Clamp Hi current grounding method with clamps (Flex & Iron);
- Selectable test load (16.6 % to 100 %);
- Improved thermal performance;
- Portable battery (Li-ion) or mains powered test instrument;
- IP protection: IP65 (case closed), IP54 (case opened);
- CAT IV 600 V (3000 m) safety category;
- Bluetooth communication;
- Black box design (remote-controlled via an Android device).
Technical data
- Dimensions (w x h x d): 360 mm x 160 mm x 330 mm
- Weight (without accessories): 6,5 kg
Applications
Low voltage electrical installation safety
- Substation electrical safety
- Mains bonding and touch voltages during fault
- Switchboards and automatic trip-out protection
Hospital earthing and lightning protection
- Mains bonding and touch voltages during fault current
Specifications
Software
Downloads
| Type | File | Language | Version | Release | Notes | Type | Size | View | Download |
|---|---|---|---|---|---|---|---|---|---|
| Datasheet | MI 3144 Euro Z 800V | en | 2019 | 28.02.2019 | Single leaflets | 953.96 KB | |||
| Datasheet | MI 3144 Euro Z 800V ąnd MI 3143 Euro Z 440V | en | 2019 | 18.03.2019 | Brochure | 15.32 MB | |||
| Manual | MI 3144 Euro Z 800V | en | 1.3.4 | 28.04.2020 | 20 752 881 | 2.22 MB | Login | ||
| PC Software | SW 1201 Metrel Electrical Safety Manager (MESM) | Multi-Language | 1.17.0.6962 | 02.07.2021 | Readme | zip | 307.51 MB | Login | |
| Android | SW 1304 aMESM Android | en | 04.01.2021 | QR code | External link | Unknown | |||
