MI 3102 BT EurotestXE

Multifunctional testers

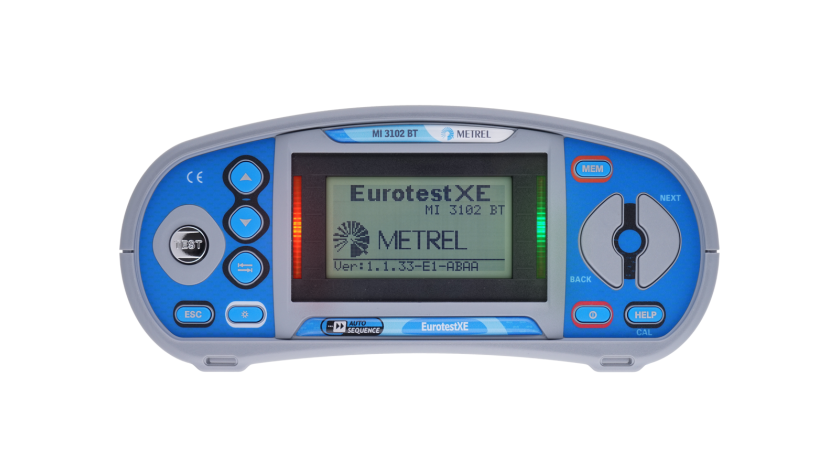

MI 3102 BT EurotestXE is a multifunctional measuring instrument which performs a complete set of installation safety tests according to IEC/EN 61557. It supports AUTO SEQUENCE® testing of the TN, TT and IT earthing systems. ISFL measurements and the IMD tests can be performed. Besides, the MI 3102 BT EurotestXE enables on-line voltage monitoring, phase sequence testing, earth resistance measurement, illuminance measurement and TRMS current measurement. EurotestXE is equipped with integrated characteristics of fuses and RCDs for PASS / FAIL evaluation of test results. All the results can be quickly saved and referenced on the instrument and then downloaded via the EuroLink PRO software (included in the standard set) to the computer for evaluation and report generation after testing.

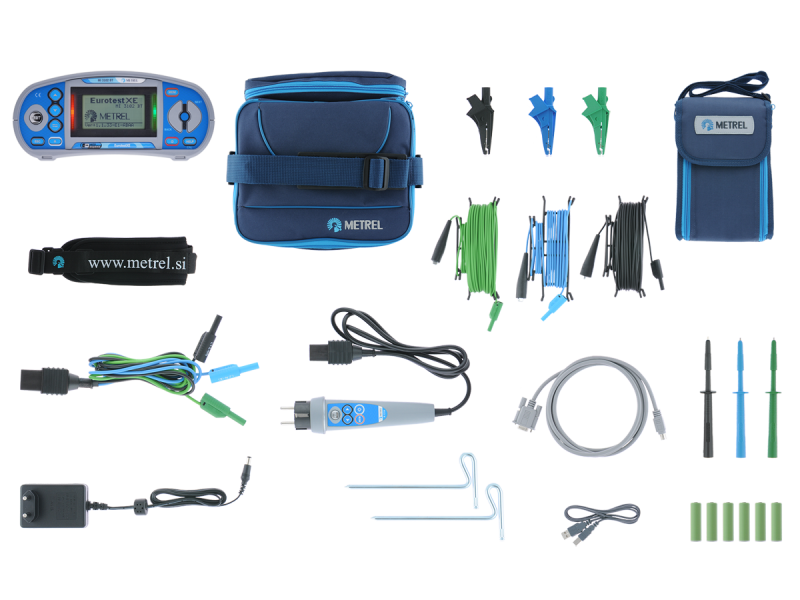

Sets

Standards applied

Building LV Installation

  • EISinsp Competences: Low Voltage Electrical Installation Safety Inspection
  • EISc Competences: Low Voltage Electrical Installation Safety for Contractors and Maintainers
  • IEC/EN 60364 Electrical Installations for Buildings series
  • IEC/EN 60364-6 Electrical Installations for Buildings - Verification
  • IEC/EN 60364-4-41 Electrical Installations for Buildings - Protection against electric shock
  • IEC/EN 60755 General safety requirements for residual current operated protective devices
  • IEC/EN 61008-1 Residual current operated circuit-breakers without integral overcurrent protection for household and similar uses (RCCBs)
  • IEC/EN 61009 Residual current operated circuit-breakers with integral overcurrent protection for household and similar uses (RCBOs)
  • IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
  • IEC/EN 61557-1 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 1: General requirements
  • IEC/EN 61557-2 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 2: Insulation resistance
  • IEC/EN 61557-3 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 3: Loop impedance
  • IEC/EN 61557-6 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 6: Effectiveness of residual current devices (RCD) in TT, TN and IT systems
  • IEC/EN 61557-7 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 7: Phase sequence
  • IEC/EN 61557-10 Electrical safety in low voltage distribution systems up to 1 000 v a.c. and 1 500 v d.c. - Equipment for testing, measuring or monitoring of protective measures - Part 10: Combined measuring equipment for testing, measuring and monitoring of protective measures
  • IEC/EN 60364-7 Electrical Installations for Buildings - Requirements for special installations or locations
  • VDE 0413 (IEC 61557) Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
  • AS / NZ 3017 Electrical installations – Verification guidelines
  • BS 7671 IEE Wiring Regulations (18th edition)
  • CEI 64.8 V4 rated electrical equipment not exceeding 1,000 VAC and 1,500V DC current

Earthing and lightning protection

  • LPSinsp Competences: Lightning Protection of Buildings Inspection
  • LPSc Competences: Lightning Protection of Buildings for Contractors and Maintainers
  • IEC 62305 Protection against lightning - series
  • IEC/EN 61557-5 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 5: Resistance to earth
  • IEC/EN 61557-4 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 4: Resistance of earth connection and equipotential bonding

Power quality

  • PQA Competences: Power Quality Analyzing & Reporting
  • IEC/EN 61557-12 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 12: Power metering and monitoring devices (PMD)

Mobile Units Electrical Safety

  • eMOB Competences: Electrical LV Installations in Mobile Units Safety
  • IEC/EN/HD 60364-7-717 Low-voltage electrical installations: Requirements for special installations or locations – Supplies for Electrical Vehicles

Instrument safety towards user

  • IEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use - series
  • IEC/EN 61010-1 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements

EMC safety

  • IEC/EN 61326 Electrical equipment for measurement, control and laboratory use - EMC requirements - series
  • IEC/EN 61326-1 Electrical equipment for measurement, control and laboratory use - EMC requirements - Part 1: General requirements

Properties

Measuring functions

  • Insulation resistance with DC voltage from 50 V to 1000 V;
  • Continuity of PE conductors with 200 mA DC test current with polarity change;
  • Continuity of PE conductors with 7 mA test current without RCD tripping;
  • Line/Loop impedance;
  • Loop impedance with Trip Lock RCD function;
  • TRMS voltage and frequency;
  • Phase sequence;
  • Power and harmonics;
  • RCD testing (general and selective, type AC, A, F, B, B+);
  • Earth resistance (3-wire and 2-clamps method);
  • Specific earth resistance with Ro-adapter (option);
  • TRMS leakage and load currents (option);
  • First fault leakage current (ISFL);
  • Testing of Insulation Monitoring Devices (IMDs);
  • Illumination (option).

Key features

  • Predefined mini AUTOSEQUENCEs:
  • Auto TT (U, Zln, Zs, Uc);
  • Auto TN/RCD (U, Zln, Zs, Rpe);
  • Auto TN (U, Zln, Zlpe, Rpe);
  • Auto IT (U, Zln, Isc, Isfl, IMD).
  • Power measurements and harmonics analysis.
  • Built-in help screens for referencing on site.
  • Built-in fuse tables for automatic evaluation of the line / loop impedance result.
  • On-line voltage monitoring: monitors all 3 voltages in real-time.
  • Polarity swap: automatic polarity reversal on continuity test.
  • Trip Lock function: loop impedance test without tripping the RCD.
  • Built-in charger unit has a built-in charging circuit and comes complete with a set of rechargeable NiMH batteries.
  • RCD auto: automated RCD testing procedure.
  • Bluetooth communication with PC, Android tablets and smart phones via built-in BT.
  • PC SW EuroLink PRO for downloading of test results and report creation.
  • EuroLink Android APP, data management tool (option).

Technical data

  • Dimensions (w x h x l): 230 x 103 x 115 mm
  • Mass (without accessories): 1.3 kg

Applications

Low voltage electrical installation safety

  • Substation electrical safety
  • Mains bonding and touch voltages during fault
  • Switchboards and automatic trip-out protection
  • Public places electrical safety

Low voltage earthing and lightning protection

  • Earthing measurement with fall of potential method
  • 2-clamps method for measuring lightning and earth protection

Special locations

  • Wet and outdoor locations
  • IT system
  • DC installations
  • EVSE construction and testing

Hospital earthing and lightning protection

  • Two clamps method for measuring lightning and earth protection
  • Hospital earthing measurement with fall of potential method
  • Mains bonding and touch voltages during fault current

Power supply and power distribution

  • Hospital switchboards and automatic trip-out protection

Patient recovery rooms and hospital wards

  • Public and workspace electrical safety in healthcare
  • Electrical safety in hospital wet areas

Secondary power sources in healthcare

  • Generator safety
  • Ambulances
  • Field hospital

Specifications
