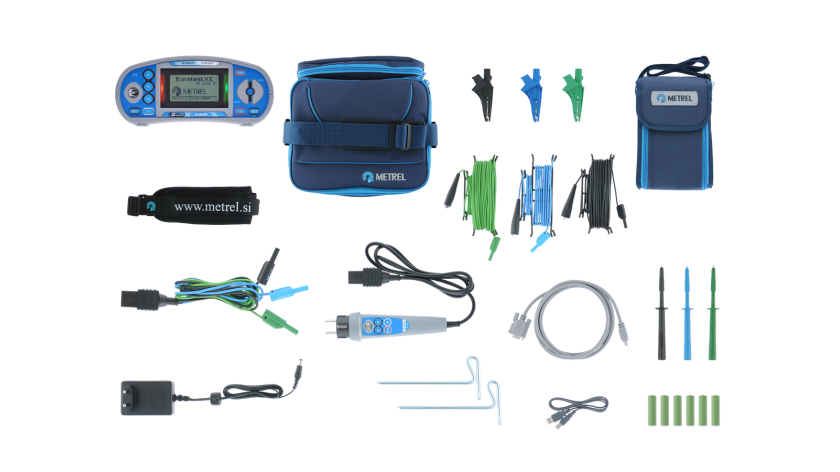

MI 3102 BT Standard set
Sets
- Instrument MI 3102 BT EurotestXE
- Plug commander, 1.5 m
- Test lead, 3 x 1.5 m
- Earth test set, 3-wire, 20 m (test lead, 4 m; 2 x test lead, 20 m; 2 x test rod)
- Power supply adapter + 6 NiMH rechargeable batteries, size AA
- Test probe, 3 pcs (blue, black, green)
- Crocodile clip, 3 pcs (blue, black, green)
- RS232 - PS/2 cable
- USB cable
- Soft carrying neck belt
- Soft carrying bag
- Calibration certificate
- Short instruction manual*
- Instruction manual*
- PC Software EuroLink PRO*
Do you own this product?
Optional accessories
A 1018 Current clamp (low range, leakage)
High accuracy current clamp 1000 A / 1 A with jaw opening 52 mm and fixed 1.5 m cable for both load and low range / leakage current measurement and for earth resistance measurement as well.
A 1110 Three phase adapter
3-phase test adapter for installation safety testing on 3-phase sockets type 16 A 3CEE.
A 1111 Three phase adapter with switch
3-phase adapter with selection switch for installation safety testing on 3-phase sockets type 16 A 3CEE. The adapter allows seamless switching between measurements.
S 2026 Earth test set, 3-wire, 20 m
Earth test set for earth resistance measurement on distance up to 20 m; set includes: test lead, 20 m, 2 pcs; test lead, 4.5 m; earth spikes, 2 pcs; soft carrying bag.
S 2027 Earth test set, 3-wire, 50 m
Earth test set for earth resistance measurement on distance up to 50 m; set includes: test lead, 50 m, 2 pcs; test lead, 4.5 m; test lead, 1 m, 2 pcs; earth spikes, 2 pcs; soft carrying bag.
A 1292 Eurolink PRO to EuroLink PRO Plus (Licence)
Password for upgrading standard PC software EuroLink PRO to advanced PC SW EuroLink PRO Plus with professional report creation facility.
A 1314 Plug commander
Single phase, 3-pin plug commander with TEST, MEM and function selection buttons and RGB LED status indicator.

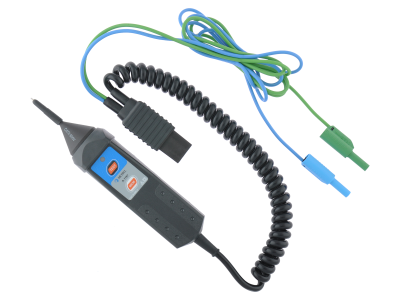

A 1401 Tip commander
Single phase, 3-wire tip commander with TEST, MEM and function selection buttons, RGB LED status indicator and front LED lamp.
S 2080 1.2 V, 2100 mAh AA rechargeable batteries type AA, 6 pcs
A set of 6 pieces of rechargeable batteries type AA.
A 1019 Current clamp
Current clamp 1000 A / 1 A with jaw opening 52 mm for general current measurements and in combination with A 1018 for earth resistance measurement without breaking the loop.
A 1172 Luxmeter sensor, type B (PS/2)
Luxmeter sensor, type B, for high-accuracy illuminance measurement e.g. for emergency lightning inspection.
A 1173 Luxmeter sensor, type C (PS/2)
Illuminance probe for light conditions measurements with 0,1Lux resolution.
A 1160 Fast charger for 8 AA batteries with a set of 6 NiMH bat., type AA
Fast battery charger for up to 8 pieces of AA rechargeable batteries, and a set of 6 pcs NiMH rechargeable batteries, type AA.
P 1101 Metrel MESM BASIC to PRO (Licence)
Licence key for upgrading the Metrel ES Manager to advanced version with professional report creation and Excel PRO export functionality.
Please contact your local dealer for more information on how to order the licence key.
A 1199 Ro-adapter
Ro-adapter is intended for performing earth resistance measurement in combination with installation safety tester.
A 1202 Additional extension part for A 1201
Additional extension part for Insulated rod for CONTINUITY measurement A 1201.
A 1201 Insulated rod for CONTINUITY measurement
Insulated rod enables insulation resistance and continuity measurement on hard-to-reach objects, e.g. luminaries.
A 1074 Mini current clamp 200 A / 0.2 A
Mini current clamp 200 A / 0.2 A with jaw opening 15 mm for current measurement in confined spaces.
CS 2099 Eurocheck
Eurocheck is a professional multifunctional field calibrator intended for use with installation safety testers.
A 1169 Fast charger for AA, C, D and 9 V block batteries
Fast battery charger for up to 12 pcs AA, 6 pcs C or D rechargeable batteries, 4 pcs 9 V block batteries.
S 2058 Insulation test plates
Two in one: Test plates for measurement of floor and wall insulation, ∆625 cm2 (acc. to EN 60364-6) and measurement of semi conductivity, 2,5 kg, Ø65 mm (acc. to EN 61340-4-1).
A 1289 Soft padded carrying bag, Size: M
Large soft carrying bag for transport and storage of test instrument and belonging accessories.
Technical data
- Dimensions: 170 x 250 x 240 mm
A 1193 Universal test cable 3 x 1,5m
3-wire test lead for measurements on single or three phase electrical installations.
A 1015 Test probe, blue
Test probe with fi 4 mm connection is suitable for performing measurements both in mains outlets and in situations when no schuko outlet is present.
A 1062 Test probe, green
Test probe with fi 4 mm connection is suitable for performing measurements both in mains outlets and in situations when no schuko outlet is present.
A 1014 Test probe, black
Test probe with fi 4 mm connection is suitable for performing measurements both in mains outlets and in situations when no schuko outlet is present.
A 1310 Crocodile clip, blue
Crocodile clip assures secure and permanent contact during the measurement on bus bars, fixing screws, etc.
A 1309 Crocodile clip, green
Crocodile clip assures secure and permanent contact during the measurement on bus bars, fixing screws, etc.
A 1013 Crocodile clip, black
Crocodile clip assures secure and permanent contact during the measurement on bus bars, fixing screws, etc.
A 1083 Power supply adapter with 6 pcs NiMH batteries, type AA
Battery charger and a set of 6 pieces of rechargeable batteries, type AA.
S 2012 Continuity test lead, 10 m, 2 pcs (red, black)
2 pieces of extension test lead for continuity measurements.
P 1102-AND Metrel aMESM PRO (Licence)
The aMESM is an advanced portable appliance safety Testing tool for Android devices. The Application is free for download from the Android Market via Google Play. For a full-featured application, a special licence is needed. Please contact your local distributer for further information.
A 1707 Shoulder strap set
Set of carrying straps for carrying the measuring instrument around the neck allowing free hand use of the tester.
A 1740 Calibration box 5 kV
Calibration Box for checking insulation measurements in the field (max. test voltage = 5kV).
A 1737 Carrying case
Case with foam inserts with slots for a Eurotest multifunctional electrical installation safety tester and MI 3309 BT DeltaGT. Multiple possible instrument & accessory combinations. We recommend the MI 3110 EurotestIT, MI 3309 DeltaPAT, MD 9231 AC/DC current clamp and A 1207 three phase adapter combination.
Technical data
- Dimensions: 590 x 470 x 270 mm
- Mass: 6.0 kg
A 1738 Carrying case
It can fit for a Eurotest multifunctional electrical installation safety tester and either an A 1532 EVSE adapter or A 1532 XA EVSE adapter. It has an additional large slot for the tester’s accessories or other equipment.
Technical data
- Dimensions: 590 x 470 x 270 mm
- Mass: 6.0 kg
A 1778 Test probe, Black - Magnet tip
The A 1778 magnetic probe (with a Ø6.6 mm right-angle magnetic adapter and a Ø4 mm socket) is designed for semi-temporary measurement of voltage on steel screw terminal blocks.
S 2138 Set of wheels for carrying cases A 1736, A 1737, A 1738
Wheels and trolley that can be added to carrying cases for easier transport.
S 2143 Set of test probes CAT II FI 2 black, blue, green METREL
Test probes with 2 mm diameter test tip to fit testing holes incorporated in the various connectors and to reach measurement locations unreachable by test probes with 4 mm diameter test tip.
A 1942 Current Clamp-iron 4/200 A Dia=25 mm - AC/DC
AC/DC Current Clamp probe, 4/40/200A range, jaw opening 26 mm, 4 mm banana plug.
