Demonstration boards LV

Equipment for Laboratories and Schools

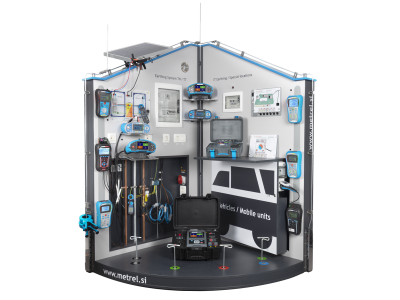

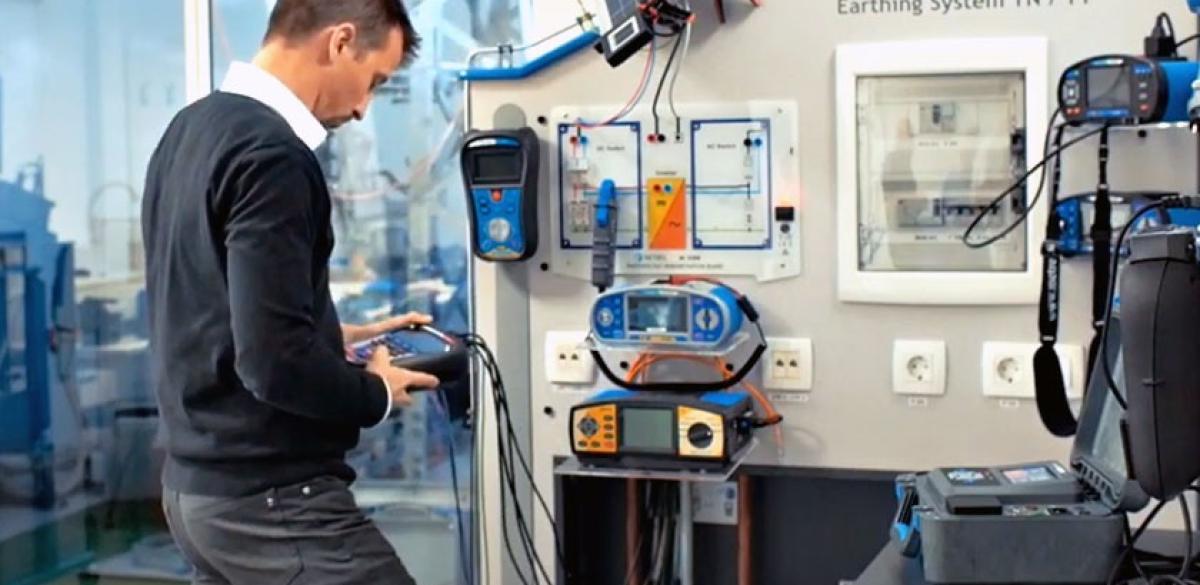

Teaching and training new generations of electricians, electrical engineers and electrical safety inspectors can be a tall order without the proper teaching materials and didactic tools. Design and production of the latter also falls within Metrel’s mission of providing technical solutions for electrical safety testing. We offer a number of dedicated demonstration boards, for training in safety testing of PV and domestic installations, portable appliances (PAT) and much more, including a large aptly named “training corner” that offers a complete training suite.

Features*

  • Safety first: training with electronic protection circuits monitoring possible dangerous situations.
  • Simulation of trip-lock or unexpected tripping-out of building’s installation circuit protection.
  • Simulation of good or bad conditions: pass and fail barriers settings on all decision making parameters.
  • Ideal tools for training inspectors, maintainers, installers or any other decision makers.
  • Modules are supported with handbooks, posters, charts, presentations, exercises, catalogues of knowledge and catalogues of exams plus approved certificates (optionally when separate training module is localized).
  • Demonstration equipment for LV electrical Safety & quality.

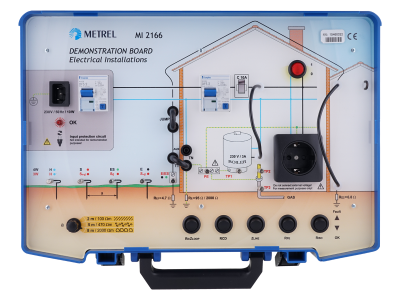

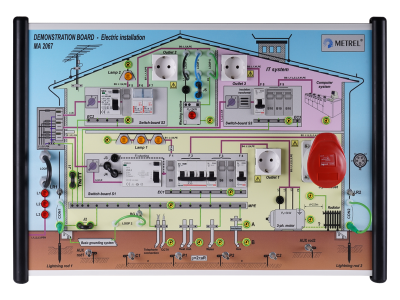

  • LV electrical installation safety trainer module.
  • TN / TT / IT earthing systems trainer module.
  • Lightning protection trainer module.
  • Surge protection trainer module.
  • Special installations and locations safety trainer module.
  • Vehicles and mobile units safety trainer module.
  • Power and voltage quality trainer module.
  • Appliances and machines safety trainer module.

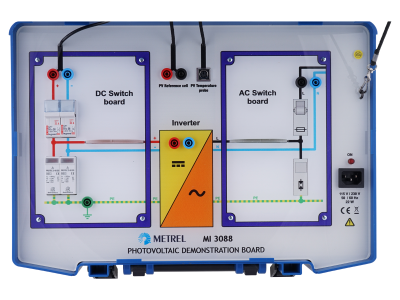

  • Photovoltaic systems trainer module.
  • LAN & telecommunication installations quality trainer module.
  • Training of measuring methods on earthing, lightning and grounding systems with 2-, 3- and 4-wire method, 2-clamp method on lightning loops and PE-N conductors.
  • Zloop (L-PE) and Zline (L-N and L-L) impedance measurements training at switchboard entry and exit points of circuits, comparison of both results and ΔU calculation in %, Ipsc and Ipfc calculation, fuse protection evaluation, pass / fail barriers just close to the limits.
  • Training of RCD testing procedure RCD AUTO.
  • Evaluation of PE continuity / PE resistance.
  • Insulation testing (switchboards, circuits etc.).
  • Measurement of TRMS clamp-on leakage current.
  • Varistor testing on gas pipe systems.
  • Over voltage protection with a ramp.
  • IMD and ISFL testing on IT systems, medical site testing, surgery room testing.
  • Safety testing of mobile installations and mobile units, testing IMD and ISFL of ungrounded equipment.

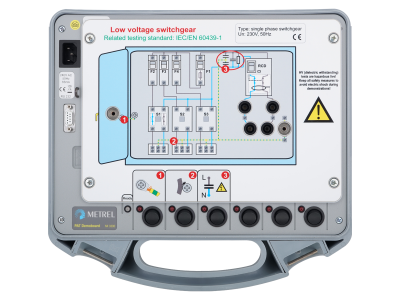

  • Safety testing of electrical switchboards.
  • Safety testing of machines.
  • Portable appliance safety testing.
  • Simulation of power quality parameters.
  • Simulation of a three phase system (even if connected to a single phase system).
  • Ideal for training of troubleshooting of events, transients, dips, sags, harmonics, bursts and other power quality issues.



*Note: Presented features, functionalities and other information on this page represent a compound list of all products’ capabilities and not capabilities of each separate product. Consult datasheets and user manuals of each specific product for detailed information about supported features and functionalities.
