MI 2093 Line Tracer

Other instruments / adapters / accessories

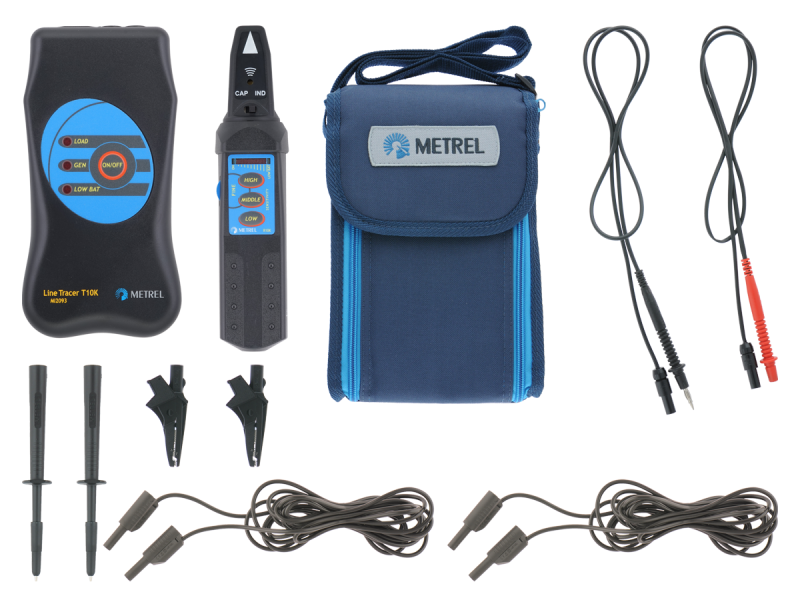

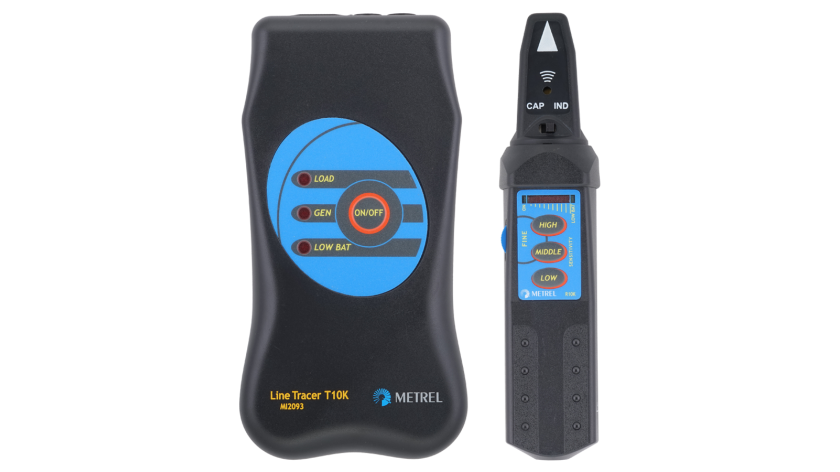

The MI 2093 Line Tracer is a universal instrument intended for tracing hidden conductive paths under plasters in walls, floors and ground or for determining one wire in a tuft of wires. Fuses or outlets belonging to a certain loop can be located as well. Line Tracer helps the operator to resolve hidden line problems easily (short circuits, interruptions, breakages).

Sets

Properties

Measuring functions

  • Tracing cables in walls, ceilings, floor and ground;
  • Tracing live or voltage free cables;
  • Locating cable interruptions and short-circuits in cables;
  • Locating concealed sockets and distribution boxes;
  • Locating fuses and assignment to circuits;
  • Determining an individual wire in a bundle of wires;
  • Tracing pipe installations and other conductive loops.

Key features

  • Detection depth up to 2 m can be achieved.
  • Works on both, energized and non-energized systems.
  • The highly sensitive Receiver R10K detects injected signal around the measured line or object.
  • Three levels of sensitivity adjustment: low, middle and high. Each level can be additionally precisely adjusted.
  • Dual, bar-graph and buzzer indicator ensures indication in dark and noisy environment.

Technical data

Dimensions (w x h x l):

  • Transmitter: 100 x 50 x 200 mm
  • Receiver: 45 x 45 x 210 mm

Mass (without accessories):

  • Transmitter: 0.3 kg
  • Receiver: 0.15 kg
