CS 2890 Power Calibrator / Simulator
Power calibrator/simulator
The CS 2890 Power Calibrator/Simulator is a handheld multifunctional four-phase instrument designed for calibrating and adjusting Metrel power quality Class A and Class S analysers as well as simulation of typical voltage and current power quality phenomena and situations on electrical networks.
Sets
Featured

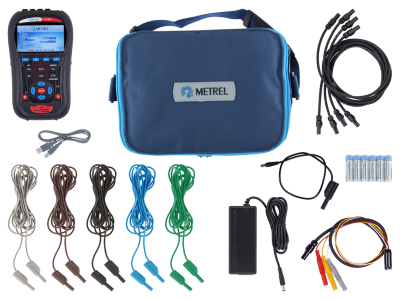

- Instrument Power Calibrator/Simulator
- Voltage measurement lead, (brown, black, grey, green, blue), 5 pcs
- Special power supply cable for voltage offset measurement
- Current measurement leads, 4pcs
- Labels for colour coding
- Power supply adapter
- 1.2 V NiMH rechargeable battery, 6 pcs
- Soft carrying bag
- USB cable
- Instruction manual
- Calibration certificate
Properties
Measuring functions
- Simple and powerful waveform generator with various settings.
- 4 voltage channels with wide simulation range: up to 350 Vrms.
- 4 current channels with current clamps simulation up to 2000 A.
- Simultaneous voltage and current (8 channels) simulation, 16-bit digital to analogue conversion for accurate signal generation.
- Saving current system settings on power off.
- 4.3’’ TFT colour display.
- Calibration of Metrel Class A and Class S power quality devices.
- Adjustment of Metrel Class A and Class S power quality devices.
- Training purposes.
- Demonstration of PQA testing equipment by sales personnel.
- Education about power quality phenomena.
Key features
- Voltage/current stability between the predefined calibration/adjustment points better than ±0.06 % under prescribed environmental conditions.
- Fine adjustment of calibration points with substandard volt-meter control measurements.
Technical data
- Dimensions: 230 x 140 x 80 mm
- Mass: 1.36 kg
Specifications
Downloads
| Type | File | Language | Version | Release | Notes | Type | Size | View | Download |
|---|---|---|---|---|---|---|---|---|---|
| Datasheet | CS 2890 Power Calibrator Simulator | en | 2019 | 28.03.2019 | 435.79 KB | ||||
| Manual | CS 2890 Power Calibrator Simulator | en | 1.4.2 | 21.11.2019 | 20 752 950 | 5.04 MB | Login | ||
