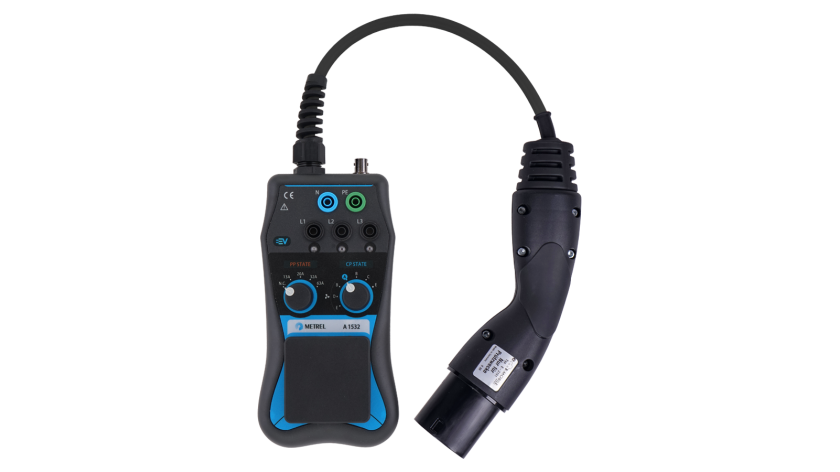

The A 1532 EVSE adapter is a special accessory intended for testing Electric Vehicle Supply Equipment (EVSE) together with supported METREL installation testers. It is used for verification of electrical safety and functional testing of EVSE. It is intended for testing Mode 3 EV supply equipment with a type 2 connector.
If used together with Metrel AutoSequences®, prebuilt in the newer multifunctional testers, the complete EVSE charging station can be tested (state-by-state) electrically and functionally with a push of a button. It is possible to create a professional station-based report with MESM.
If used together with Metrel AutoSequences®, prebuilt in the newer multifunctional testers, the complete EVSE charging station can be tested (state-by-state) electrically and functionally with a push of a button. It is possible to create a professional station-based report with MESM.
Do you own this product?
Select a set
Videos
How To
How To
Standards applied
Building LV Installation
- EISinsp Competences: Low Voltage Electrical Installation Safety Inspection
- EISc Competences: Low Voltage Electrical Installation Safety for Contractors and Maintainers
- IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
Mobile Units Electrical Safety
- ISO 6469-3 - Electrically propelled road vehicles Safety specification Part 3: Electrical safety
Electrical Vehicle Supply Equipment
- EVSE Competences: Electrical Vehicle Supply Equipment Safety
Properties
Measuring functions
- Banana socket outputs for connection to a 3-phase installation tester.
- Voltage indicators on EVSE output.
- Proximity Pilot resistance selector for simulation of EV cable presence and current rating detection.
- Control Pilot resistance selector for simulation of electric vehicle status.
- Socket output for connection to a 1-phase installation tester (Phase 1, Neutral, PE).
- Type 2 Male Plug connector for connection to EVSE.
- 6 mA EV RCD support.
- Functional tests support*.
- EVSE AUTO SEQUENCE® support*.
- MESM report creation**.
Basic support:
- A 1532
Partial support:
- 6 mA EV RCD
- EVSE report**
Full support:
- Functional test support
- EVSE AUTO SEQUENCE® support
* Functional tests and AUTO SEQUENCE® are supported only on the MI 3155 Eurotest XD, MI 3152 EurotestXC and MI 3152 H EurotestXC 2.5 kV testers.
** Report printing is only available via the MESM PC SW. The MESM license (P 1101) is to be purchased separately.
Technical data
- Dimensions (w x h x l): 200 x 100 x 70 mm
- Mass (without accessories): 0.82 kg
Applications
e-Mobility
- EVSE domestic installation testing
- EVSE periodic inspection
- Renewable power and car charging
Mobile installations
- Vehicles with an on-board generator
Specifications
Downloads
Datasheet | Language | Version | Release | Notes | Type | Size | Download |
---|---|---|---|---|---|---|---|
A 1532 EVSE adapter | en | 2019 | 09.01.2019 | 448.05 KB |
Manual | Language | Version | Release | Notes | Type | Size | Download |
---|---|---|---|---|---|---|---|
A 1532 EVSE adapter | en | 1.3.5 | 12.10.2021 | 20 752 684 | 427.86 KB | Login | |
A 1532 EVSE adapter | Multi-Language | 2023 | 20.01.2023 | zip | 276.85 KB | Login |
