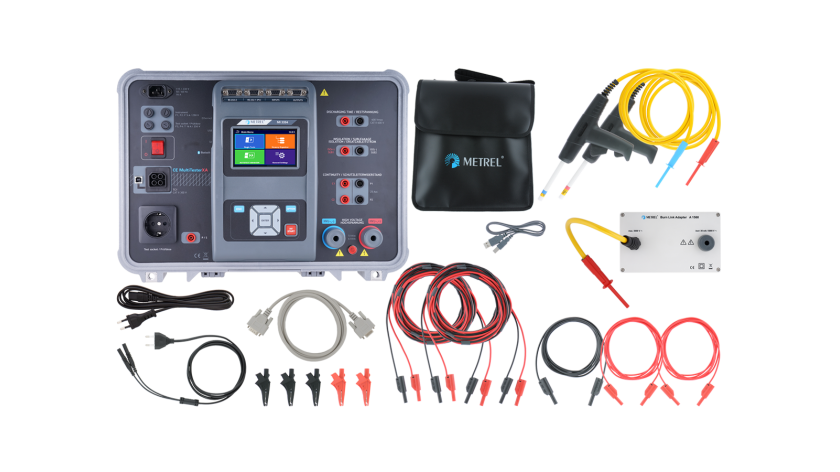

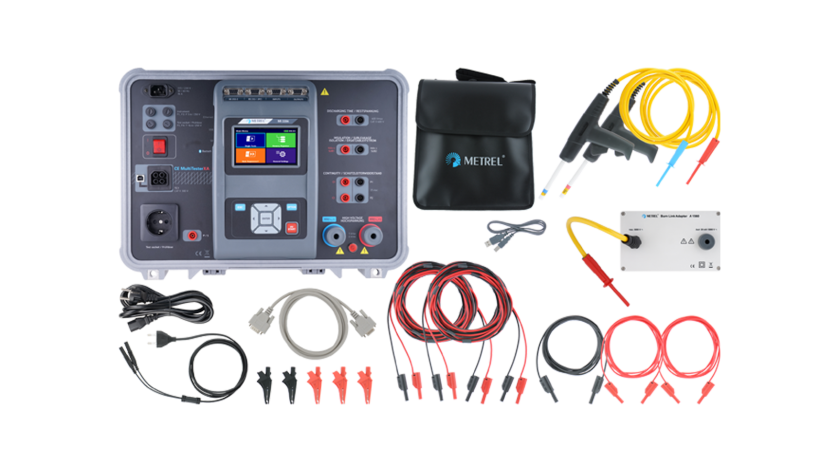

MI 3394 Lab set
Sets
- MI 3394 Instrument CE MultiTesterXA
- 1x A 1560 Burn link adapter
- 1x A 1494 HV test lead, Blue, 2m
- 1x A 1486 HV test lead, Red, 2m
- 2x A 1076 Test cable, BLK/RED, 2.5m, 2.5mm2/0.75mm2
- 1x A 1710 Test lead, Red, 1.5m, 2.5mm2
- 1x A 1370 Test lead, Red, 2.5m, 0.75mm2
- 1x A 1369 Test lead, Black, 2.5m, 0.75mm2
- 2x A 1013 Crocodile clip, Black
- 3x A 1064 Crocodile clip, Red
- 1x A 1079 Test cable, Black, 2m, 0.75mm2
- 1x A 1493 Power cable, 2m, 3x1.5mm2
- 1x A 1772 Soft carrying bag Size: XXL
- 1x A 1017 RS232 communication cable
- 1x A 1727 USB cable L=1m
- Calibration certificate
- Short instruction manual
- Instruction manual*
- Metrel ES Manager BASIC Licence*
- SW 1201 Metrel ES Manager (program installation)*
Do you own this product?
Optional accessories
P 1101 Metrel MESM BASIC to PRO (Licence)
Licence key for upgrading the Metrel ES Manager to advanced version with professional report creation and Excel PRO export functionality.
Please contact your local dealer for more information on how to order the licence key.
A 1013 Crocodile clip, black
Crocodile clip assures secure and permanent contact during the measurement on bus bars, fixing screws, etc.
S 2012 Continuity test lead, 10 m, 2 pcs (red, black)
2 pieces of extension test lead for continuity measurements.
A 1064 Crocodile clip, red
Crocodile clip assures secure and permanent contact during the measurement on bus bars, fixing screws, etc.
S 1072 Continuity test lead with crocodile clip, 2 x 2.5 m, 2 pcs
Extension test leads with protection shield and with crocodile clips for continuity testing with high test currents (10 A, 25 A).
A 1060 Power splitter for discharge time measurement
T-type power splitter for measurements of discharge time on machinery and switchgear.

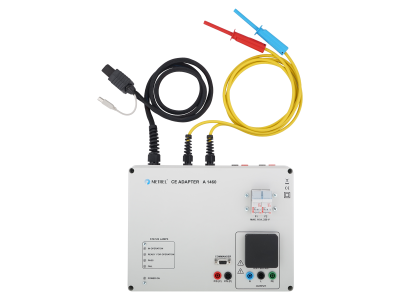

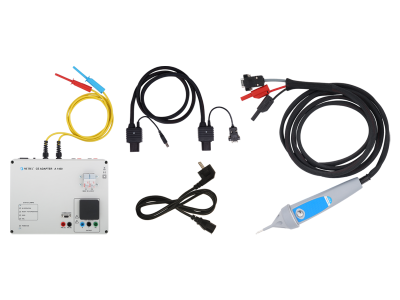

A 1460 XA CE Adapter
Provides a thorough and expeditious solution in the execution of auto tests via a single test terminal, A 1511 2M5 included in set.
A 1460 XA Standard set
- A 1460 CE adapter, XA
- 1x A 1645 XA Multifunctional test cable, 1.5m, MI 3394
- 1x A 1728 Power cable, 2m, 3x0.75mm2
- 1x A 1511 Tip commander, 2.5m
- Instruction manual

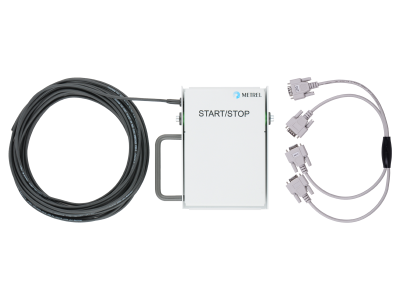

A 1495 Remote control pedal
Remote control pedal is used for safe remote start of high voltage insulation test and additionally allows free hand operation of the worker.
A 1495 Standard set
- A 1495 Start/Stop pedal
- 1x A 1495 PL Adapter for Start/Stop pedal and signal lights
- Notes for pedal
A 1496 Warning lamp / 2-LED signal tower HV
Warning lamps visually signalize ongoing HV insulation test and warn the user about dangerous voltage conditions for use with A 1460. If A 1496 is used in combination with MI 3325 or MI 3394, an external power supply adaptor A 1499 shall be used.
A 1497 Warning lamp / 4 LED’s signal tower with buzzer
Colour - LED signal tower with build-in buzzer visually and acoustically signalizes ongoing tests and test conditions for use with A 1460. If A 1497 is used in combination with MI 3325 or MI 3394, an external power supply adaptor A 1499 shall be used.
A 1499 External power supply 24V
If the LED tower lamp is used in combination with MI 3325 or MI 3394, the external power supply should be used.
A 1511 5M Tip Commander 5 m
Tip commander serves as a remote control for execution of passive tests, when used in combination with A 1460. Or for execution of 4-wire continuity test when used directly from MI 3325. The commander has a built in LED torch lamp including PASS/FAIL status LED's and start key for execution of the tests. When used directly from MI 3325 the connection cable A 1583 must be used.

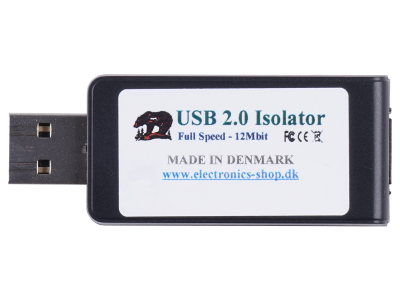

A 1521 USB isolator
It is intended as galvanic insulation of USB interface between our products and PC to prevent damage of USB connected equipment in case of accidentally applied voltage difference between two types of equipment.

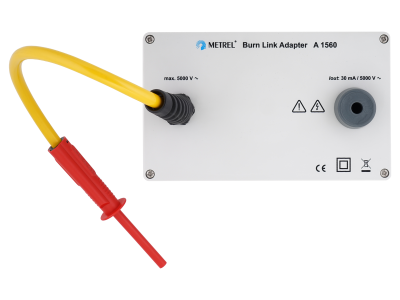

A 1560 Burn Link adapter
For performing insulation breakdown test with limited breakdown current "30˝mA".
A 1560 Standard set
- A 1560 Burn link adapter
- Instruction manual
S 2073 HV test lead 5m, without pistols
High voltage extension test leads for measurements on larger electrical equipment.
S 2078 2M HV test lead 2m, with pistols, 2pcs
High voltage test leads with pistols for measurements on larger electrical equipment.
S 2062 BT label printer set, (mains operated)
Printer supports printing of bar-codes which contain a complete appliance information and PASS or FAIL status of result, or QR codes which contain information of the previous results, the test status, and the previously used test sequence. Printer supports printing of simple labels including PASS or FAIL status of result, Appliance name, ID number, User information and test date.
A 1573 NFC labels, fi 29 mm self-stick 50 pcs
NFC labels have sufficient memory space to store test results, test code and tested appliance information
A 1511 2M5 Tip Commander 2,5 m
Tip commander serves as a remote control for execution of passive tests, when used in combination with A 1460. Or for execution of 4-wire continuity test when used directly from MI 3325. The commander has a built in LED torch lamp including PASS/FAIL status LED's and start key for execution of the tests. When used directly from MI 3325 the connection cable A 1583 must be used.
A 1571 NFC reader / writer
NFC reader / writer allows to read and upload test results and information about tested electrical equipment to the NFC tags (NTAG 216).
A 1572 NFC tags, fi 34mm self-stick 50 pcs
NFC tags have sufficient memory space to store test results, test code and tested appliance information
A 1574 NFC cable-tie, L 130 mm 50 pcs
NFC cable-ties have sufficient memory space to store test results, test code and tested appliance information

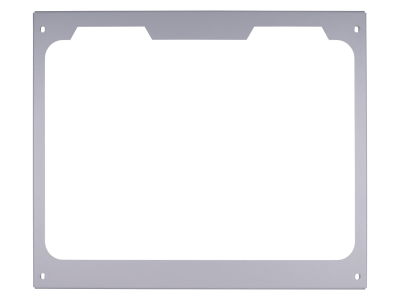

A 1584 Rack mount adapter for MI 3394 CE MultiTesterXA
A 1584 is a rack mount adapter for 19” rack, which is designed to hold the MI 3394 CE MultiTesterXA. This product kit includes the parts needed for complete and easy installation of the adaptor kit in RITAL square hole racks, and some third-party racks.
A 1511 10M Tip Commander 10 m
Tip commander serves as a remote control for execution of passive tests, when used in combination with A 1460. Or for execution of 4-wire continuity test when used directly from MI 3325. The commander has a built in LED torch lamp including PASS/FAIL status LED's and start key for execution of the tests. When used directly from MI 3325 the connection cable A 1583 must be used.
A 1586 Rack mount adapter for A 1460 CE Adapter
A 1586 is a rack mount adapter for 19” rack, which is designed to hold the A 1460 CE Adapter. This product kit includes the parts needed for complete and easy installation of the adaptor kit in RITAL square hole racks, and some third-party racks.
A 1593 Large Kelvin test crocodile with jaw opening 35 mm
Large robust Kelvin crocodile clip for accurate resistance measurements on larger objects.
A 1595 Large test crocodile, black
Large robust crocodile clip for resistance measurements on larger objects.
A 1596 Large test crocodile, red
Large robust crocodile clip for resistance measurements on larger objects.

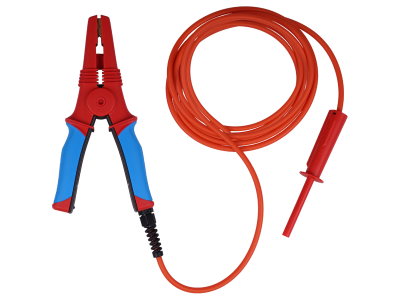

A 1639 RED-2M5 Large red HV test clip with HV cable and plug, 2.5m
HV test clip with cable for best contacting of different contact surfaces with 35 mm jaw opening.
A 1639 RED-5M Large red HV test clip with HV cable and plug, 5m
HV test clip with cable for best contacting of different contact surfaces with 35 mm jaw opening.
A 1639 RED-15M Large red HV test clip with HV cable and plug, 15m
HV test clip with cable for best contacting of different contact surfaces with 35 mm jaw opening.
A 1639 RED-10M Large red HV test clip with HV cable and plug, 10m
HV test clip with cable for best contacting of different contact surfaces with 35 mm jaw opening.
A 1639 BLU-2M5 Large blue HV test clip with HV cable and plug, 2.5m
HV test clip with cable for best contacting of different contact surfaces with 35 mm jaw opening.
A 1639 BLU-5M Large blue HV test clip with HV cable and plug, 5m
HV test clip with cable for best contacting of different contact surfaces with 35 mm jaw opening.
A 1105 2D Barcode scanner 2D RS232 connection
2D Barcode scanner for identification of barcode labelled appliances
A 1653 QR / Barcode scanner (Bluetooth)
QR / Barcode scanner for identification of barcode labelled appliances.
A 1494 2M HV test pistol with 2 m cable, blue
High voltage safety test probe for manual high voltage testing. The test tip is protected by an arc-resistant teflon tube, and it has built in almost wear-free lungsten which assures a long lifetime.
A 1486 2M HV test pistol with 2 m cable, red
High voltage safety test probe for manual high voltage testing. The test tip is protected by an arc-resistant teflon tube, and it has built in almost wear-free lungsten which assures a long lifetime.
S 2078 15M HV test lead 15m, with pistols, 2pcs
High voltage test leads with pistols for measurements on larger electrical equipment.
A 1494 15M HV test pistol with 15 m cable, blue
High voltage safety test probe for manual high voltage testing. The test tip is protected by an arc-resistant teflon tube, and it has built in almost wear-free lungsten which assures a long lifetime.
A 1486 15M HV test pistol with 15 m cable, red
High voltage safety test probe for manual high voltage testing. The test tip is protected by an arc-resistant teflon tube, and it has built in almost wear-free lungsten which assures a long lifetime.
A 1496 MAG Warning lamp / 2-LED signal tower HV ready for magnetic mounting
Warning lamps visually signalize ongoing HV insulation test and warn the user about dangerous voltage conditions.
P 1100 Metrel FW Profile Licence Key With BASIC SW Set
Licence key for an additional FW profile and BASIC MESM functionality.
P 1104 Metrel SDK (Licence)
SDK licence key for instrument integration with 3rd party SW. Please contact your local dealr for more information on how to order the licence key.
P 1102-AND Metrel aMESM PRO (Licence)
The aMESM is an advanced portable appliance safety Testing tool for Android devices. The Application is free for download from the Android Market via Google Play. For a full-featured application, a special licence is needed. Please contact your local distributer for further information.
