A 1632 eMobility Analyser Featured

Other instruments / adapters / accessories

The A 1632 eMobility Analyser is a special accessory designed for diagnostic testing of Electric Vehicle Supply Equipment (EVSE) together with supported METREL installation testers. It supports verification of electrical safety and functional testing of Type 1 and/or Type 2 EVSE as well as testing of Mode 2 and Mode 3 electrical vehicle (EV) charging cables and communication monitoring between the charging station and the EV during charging. Fully supported professional station-based and cable-based report creation with MESM software.

Sets

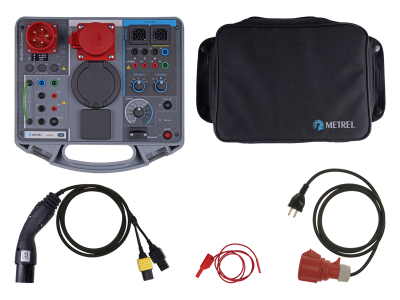

A 1632 Standard set Featured

  • A 1632 eMobility Analyser
  • Type 2 Male plug adapter with long CP pin (2 x Metrel connector), 2 m
  • 1-phase EU - 3 phase CEE (16 A) mains cable, 2 m
  • 2 mm banana to 4 mm cascade banana adapter, 1 m
  • Protective bag for accessories (mounted on the case)
  • Metrel eMobility App for Android*
  • Instruction manual
  • Calibration certificate
*The eMobitliy App can be downloaded free of charge from Android Market.
Add to enquiry

Standards applied

Building LV Installation

  • EISinsp Competences: Low Voltage Electrical Installation Safety Inspection
  • EISc Competences: Low Voltage Electrical Installation Safety for Contractors and Maintainers
  • IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series

Electrical Vehicle Supply Equipment

  • EVSE Competences: Electrical Vehicle Supply Equipment Safety
  • IEC/EN 61851 Electric vehicle conductive charging system

Properties

Key features

  • Functional testing of EVSE via simulation of electrical vehicle’s CP and PP circuits.
  • Diagnostic testing of EVSE via simulation of errors on CP circuit (output side).
  • Electrical safety testing of EVSE.
  • Functional testing of Mode 2 EV cables via simulation of electrical vehicle’s CP and PP circuits.
  • Diagnostic testing of Mode 2 EV cables via simulation of errors on CP circuit (output side) and mains (input side).
  • Electrical safety testing of Mode 2 EV cables with installed IC-CPD protection.
  • Electrical safety testing of Mode 3 EV cables.
  • Accessible inputs/outputs for connection of safety testers.
  • Bluetooth communication with Metrel safety testers and Android devices with eMobility app.

Technical data

  • Dimensions (w x h x l): 360 mm x 160 mm x 330 mm
  • Mass (without accessories): 5.2 kg

Applications

Special locations

e-Mobility

  • EVSE domestic installation testing
  • EVSE periodic inspection
  • Renewable power and car charging

Mobile installations

  • Vehicles with an on-board generator

Specifications


Print

Downloads

Type File Language Version Release Notes Type Size View Download
Datasheet A 1632 eMobility Analyser en 2019 12.02.2019 pdf 721.49 KB
Manual A 1632 eMobility Analyser en 1.3.7 11.09.2020 20 752 886 pdf 1.14 MB Login
Manual A 1632 eMobility Analyser Multi-Language 2023 20.01.2023 zip 2.19 MB Login
Android SW 1401 eMobility Android en 04.01.2021 QR code External link Unknown

Videos

Promotional
