MI 3110 EurotestIM Featured

Single-functional testers

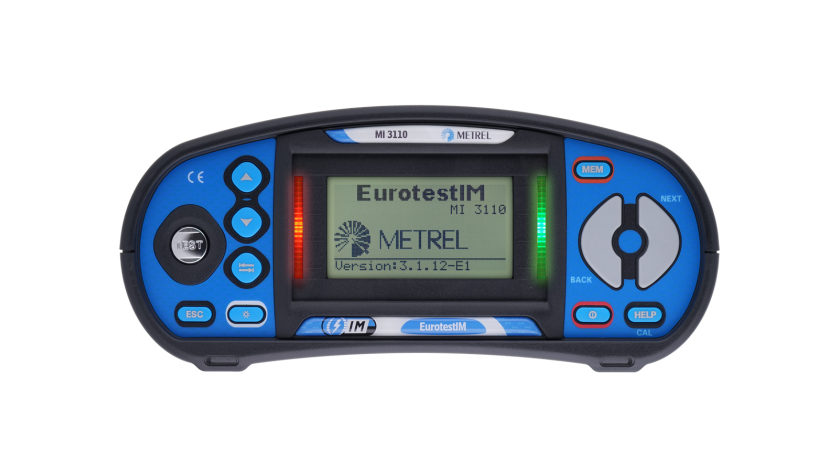

The MI 3110 EurotestIM is a perfect tool for testing of permanent integrated or portable Low Voltage Electrical Installa-tions supplied by Generator or Transformer and protected by an IT earthing system. Designed for simple but efficient safety testing of Integrated IT Earthing System powered with LV Generator or Transformer! With a single, pre-programmed AUTO SEQUENCE® with sub-tests and adjustable limits it is possible to perform all the necessary verifications of safety limits of a specific LV IT installation.

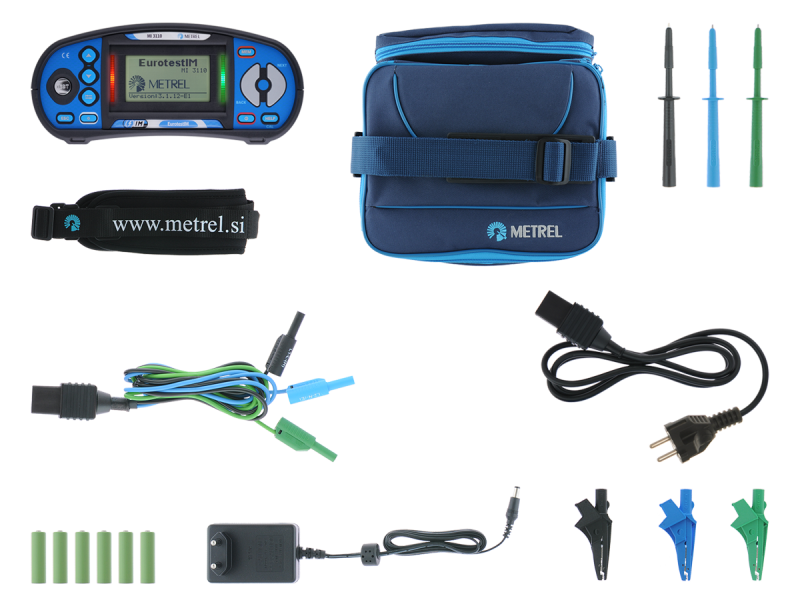

Select a set

Videos

Instructional

Instructional

Standards applied

Building LV Installation

  • EISinsp Competences: Low Voltage Electrical Installation Safety Inspection
  • EISc Competences: Low Voltage Electrical Installation Safety for Contractors and Maintainers
  • IEC/EN 60364 Electrical Installations for Buildings series
  • IEC/EN 60364-6 Electrical Installations for Buildings - Verification
  • IEC/EN 60364-4-41 Electrical Installations for Buildings - Protection against electric shock
  • IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
  • IEC/EN 61557-1 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 1: General requirements
  • IEC/EN 61557-3 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 3: Loop impedance
  • IEC/EN 61557-10 Electrical safety in low voltage distribution systems up to 1 000 v a.c. and 1 500 v d.c. - Equipment for testing, measuring or monitoring of protective measures - Part 10: Combined measuring equipment for testing, measuring and monitoring of protective measures
  • IEC/EN 60364-7 Electrical Installations for Buildings - Requirements for special installations or locations
  • AS / NZ 3017 Electrical installations – Verification guidelines
  • BS 7671 IEE Wiring Regulations (18th edition)

Mobile Units Electrical Safety

  • eMOB Competences: Electrical LV Installations in Mobile Units Safety
  • IEC/EN/HD 60364-7-717 Low-voltage electrical installations: Requirements for special installations or locations – Supplies for Electrical Vehicles

Medical electrical equipment

  • AS/NZS 3551 Management programs for medical devices

Medical and surgery rooms' installations

  • MEDi Competences: Medical and Surgery Rooms Electrical Installations Safety

Instrument safety towards user

  • IEC/EN 61010-2-033 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-033: Particular requirements for hand-held multimeters and other meters for domestic and professional use, capable of measuring mains voltage

EMC safety

  • IEC/EN 61326 Electrical equipment for measurement, control and laboratory use - EMC requirements - series

Properties

Measuring functions

  • Voltage, frequency and phase sequence.
  • Line impedance and prospective short circuit current.
  • Voltage drop.
  • First fault leakage current (ISFL).
  • Testing of insulation monitoring devices (IMD).

Key features

  • AUTO SEQUENCE ®: One single AUTO SEQUENCE ® with programmable limits and sub-tests ensuring Safety on all PASS bar-rier parameters.
  • Voltage monitor: IT System recognizing, Voltage Range and Voltage Balance.
  • ISFL test: ISFL Single Fault Leakage current from Phase 1 and Phase 2 to PE. Fuse Trip-out Ability Evaluation, Line Impedance and Ipsc Prospective Short Circuit Current.
  • IMD control: IMD Insulation / ELM Earth Leakage / RCM Residual Current Monitor Devices Control.
  • IMD adjust: Alarm Trigger or Trip-Out Check and Adjust.

Technical data

  • Dimensions (w x h x l): 230 x 103 x 115 mm
  • Mass (without accessories): 1.1 kg

Applications

Mobile installations

  • Emergency response vehicles
  • Telecommunication equipment in mobile installations

Preventative maintenance

  • Voltage measurements

Troubleshooting

  • Installation troubleshooting

Specifications

Downloads

Datasheet Language Version Release Notes Type Size Download
MI 3110 EurotestIM en 1.0 19.12.2012 pdf 410.18 KB
Manual Language Version Release Notes Type Size Download
MI 3110 EurotestIM en 1.2.3 07.09.2022 20 752 063 pdf 2.09 MB Login
PC Software Language Version Release Notes Type Size Download
SW 0101 EuroLink PRO (EU) en 4.38 18.01.2022 Readme zip 60.59 MB Login
