MI 3205 TeraOhmXA 5kV

High voltage insulation testers

MI 3205 TeraOhmXA 5kV
MI 3205 TeraOhmXA 5kV

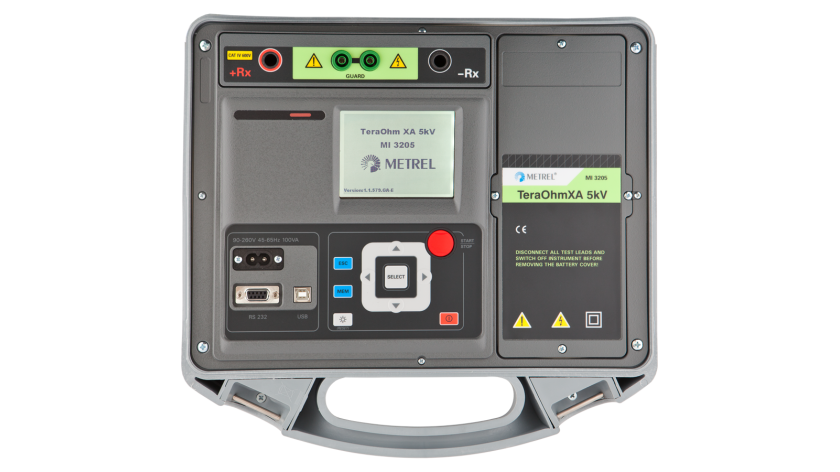

MI 3205 TeraOhm XA 5kV is a portable battery (Li-ion) or mains powered test instrument with excellent IP protection (IP65 case closed and IP54 case open), intended for diagnosing of Insulation Resistance by using high test voltages of up to 5 kV. It is designed and produced with the extensive knowledge and experience acquired through many years of working in this field.
Select a set

Do you own this product?

Repair & Calibration
Technical support
Frequently asked questions
Documentation center
Metrel Academy

Select a set

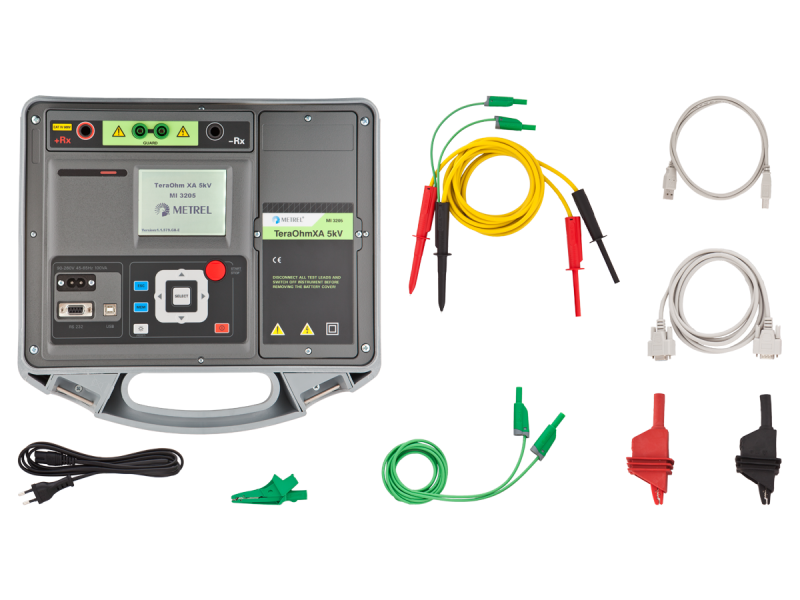

MI 3205 Standard set

  • Instrument MI 3205 TeraOhmXA 5 kV
  • A 1807 10 kV shielded test lead, 2 m, red
  • A 1808 10 kV shielded test lead, 2 m, black
  • S 2036 10 kV crocodile clip, 2 pcs (black, red)
  • A 1806 Guard test lead, green, 2 m
  • A 1309 Crocodile clip, green
  • A 1036 Mains cable
  • PC SW HVLink PRO with USB and RS 232 cable
  • Handbook “Guide to modern insulation testing” on CD
  • Instruction manual on CD
  • Calibration certificate
*PC SW HVLinkPRO and all documentation can be downloaded free of charge from Metrel Web server or Metrel Documentation center.
Add to enquiry
Optional accessories

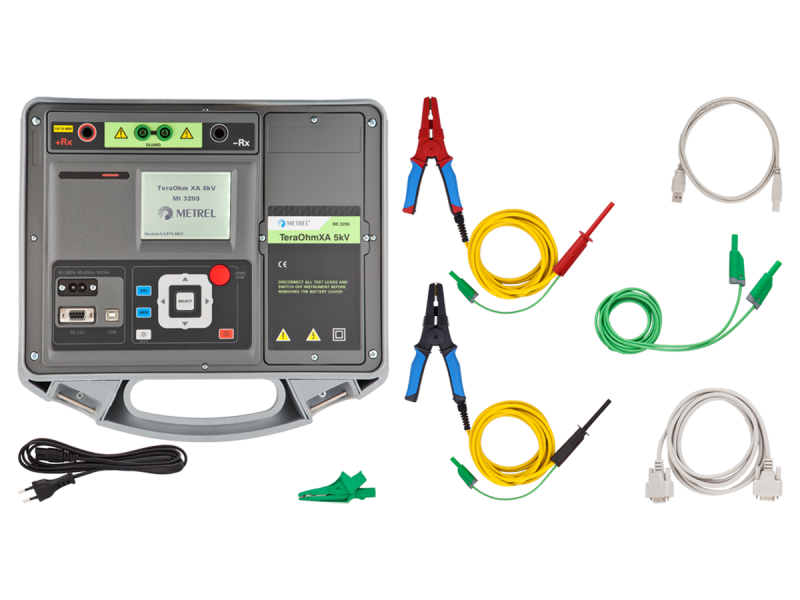

MI 3205 Euro set

  • Instrument MI 3205 TeraOhmXA 5 kV
  • A 1822 Large HV Crocodile with shielded cable,2.5 m, black
  • A 1823 Large HV Crocodile with shielded cable,2.5 m, red
  • A 1806 Guard test lead, green, 2.5 m
  • A 1309 Crocodile clip, green
  • A 1036 Mains cable
  • PC SW HVLink PRO with USB and RS 232 cable
  • Handbook “Guide to modern insulation testing” on CD
  • Instruction manual on CD
  • Calibration certificate
*PC SW HVLinkPRO and all documentation can be downloaded free of charge from Metrel Web server or Metrel Documentation center.
Add to enquiry
Optional accessories

Videos

Promotional

Promotional

Standards applied

Instrument safety towards user

  • IEC/EN 61010-1 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements
  • IEC/EN 61010-031 Amendment 1 - Safety requirements for electrical equipment for measurement, control and laboratory use - Part 031: Safety requirements for hand-held and hand-manipulated probe assemblies for electrical test and measurement
  • IEC/EN 61010-2-030 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-030: Particular requirements for equipment having testing or measuring circuits
  • IEC/EN 61010-2-034 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-034: Particular requirements for measurement equipment for insulation resistance and test equipment for electric strength

EMC safety

  • IEC/EN 61326-1 Electrical equipment for measurement, control and laboratory use - EMC requirements - Part 1: General requirements

Properties

Measuring functions

  • Insulation Measurement;
  • Diagnostic Test (PI, DAR, DD);
  • Step Voltage Test;
  • Withstanding Voltage Test (DC) up to 5 kV;
  • Voltage and frequency measurement up to 550 V TRMS.

Key features

  • Insulation resistance up to 15 TΩ.
  • Adjustable test voltage (50 V...5 kV) 50 V and 100 V step.
  • Programmable timer.
  • Capacitance measurement.
  • Charging rate for capacitive load < 1.5 s / µF at 5 kV.
  • Short circuit / charge current > 6 mA.
  • Automatic discharge of test object after completion of measurement.
  • Guard terminal.
  • High voltage breakdown detection.
  • Custom defined tests.
  • Auto adjustment function.
  • Measurement results in numerical and graphical form.
  • PC software HVLink PRO for downloading and analysing of the test results and test report printing.
  • Isolated RS232 and USB communication ports, BT interface.
  • High quality accessories including shielded test leads in standard set.
  • High EM interferences protection: Input AC current noise rejection (1 mA@300 V) and additional averaging of the result (5, 10, 30, 60).
  • CAT IV / 600 V.
  • Increased working nominal altitude to 3000 m.
  • High power Li-ion battery pack (14.8V, 4.4Ah).
  • Mains and rechargeable battery power supply.

Technical data

  • Dimensions (w x h x d): 360 x 160 x 330 mm
  • Weight (with batteries, without accessories): 6.5 kg

Specifications


Print

Downloads

Datasheet Language Version Release Notes Type Size Download
MI 3205 TeraOhmXA 5kV en 2024 10.10.2024 pdf 699.1 KB
Manual Language Version Release Notes Type Size Download
MI 3205 TeraOhmXA 5kV en 1.4.7 08.05.2024 20 752 446 pdf 1.6 MB Login
MI 3205 TeraOhmXA 5kV Multi-Language 2023 20.01.2023 zip 2.52 MB Login
DoC Language Version Release Notes Type Size Download
EU Declaration of Conformity Multi-Language 06.07.2023 QR code External link Unknown
PC Software Language Version Release Notes Type Size Download
SW 0113 HVLink PRO en 11.10 02.09.2021 Readme zip 21.81 MB Login
