MI 3210 TeraOhm XA 10kV Featured

High voltage insulation testers

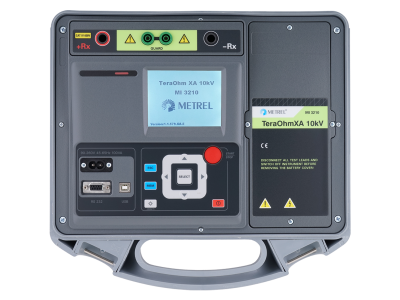

MI 3210 TeraOhm XA 10 kV is a portable, battery or mains powered test instrument with excellent IP protection (IP65), intended for diagnosing of Insulation Resistance by using high DC test voltages of up to 10 kV. Because of its robustness (CAT IV protection) and high immunity to radiated RF fields it is best suited for industrial environment.

Sets

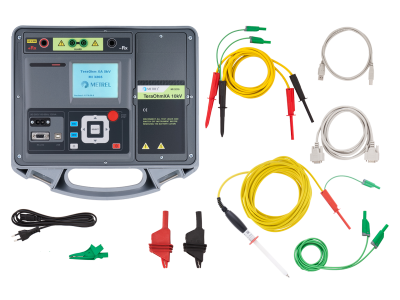

MI 3210 Standard set

  • Instrument MI 3210 TeraOhmXA 10 kV
  • 10 kV shielded test lead with probe, 2 m
  • 10 kV shielded test lead, 2 m, 2 pcs (black, red)
  • 10 kV crocodile clip, 2 pcs (black, red)
  • Guard test lead, green, 2 m
  • Crocodile clip, green
  • Mains cable
  • PC SW HVLink PRO with USB and RS 232 cable
  • Handbook “Guide to modern insulation testing” on storage media
  • Instruction manual
  • Calibration certificate
Add to enquiry
Optional accessories

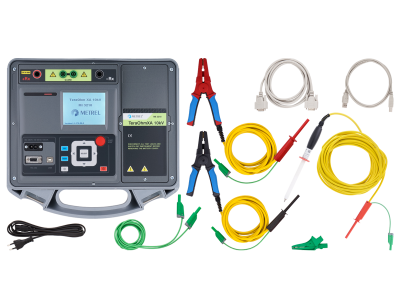

MI 3210 Euro set Featured

  • Instrument MI 3210 TeraOhmXA 10 kV
  • 10 kV shielded test lead with probe, 2 m
  • Large HV Crocodile with shielded cable, 2.5 m, 2 pcs (black, red)
  • Guard test lead, green, 2.5 m
  • Crocodile clip, green
  • Mains cable
  • PC SW HVLink PRO with USB and RS 232 cable
  • Handbook “Guide to modern insulation testing” on storage media
  • Instruction manual
  • Calibration certificate
Add to enquiry
Optional accessories

Standards applied

Building LV Installation

  • IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
  • IEC/EN 61557-2 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - Part 2: Insulation resistance

Properties

Measuring functions

  • Insulation Measurement;
  • Diagnostic Test (PI, DAR, DD);
  • Step Voltage Test;
  • Withstanding Voltage Test (DC) up to 10 kV;
  • Voltage and frequency measurement up to 550 V TRMS.

Key features

  • Insulation resistance up to 20 TΩ.
  • Adjustable test voltage (50 V...10 kV) 50 V and 100 V step.
  • Programmable timer.
  • Capacitance measurement.
  • Charging rate for capacitive load < 3 s / µF at 10 kV.
  • Automatic discharge of test object after completion of measurement.
  • Guard terminal.
  • High voltage breakdown detection.
  • Custom defined tests.
  • Auto adjustment function.
  • Measurement results in numerical and graphical form.
  • PC software HVLink PRO for downloading and analysing of the test results and test report printing.
  • Isolated RS232 and USB communication ports, BT interface.
  • High quality accessories including shielded test leads in standard set.
  • High EM interferences protection: Input AC current noise rejection (1 mA∞600 V) and additional averaging of the result (5, 10, 30, 60).
  • CAT IV / 600 V.
  • Mains and rechargeable battery power supply.

Technical data

  • Dimensions (w x h x d): 360 x 160 x 330 mm
  • Weight (with batteries, without accessories): 6.5 kg

Specifications


Print

Software

Downloads

Type File Language Version Release Notes Type Size View Download
Datasheet MI 3210 TeraOhmXA 10kV en 2023 04.01.2023 pdf 758.25 KB
Manual MI 3210 TeraOhmXA 10kV en 1.4.6 07.09.2022 20 752 185 pdf 1.43 MB Login
Manual MI 3210 TeraOhmXA 10 kV Multi-Language 2023 20.01.2023 zip 1001.78 KB Login
DoC EU Declaration of Conformity Multi-Language 10.08.2021 QR code External link Unknown
PC Software SW 0113 HVLink PRO en 11.10 02.09.2021 Readme zip 21.81 MB Login
