MD 9272 Leakage Clamp TRMS Meter with Power Functions Featured

Clamp meters

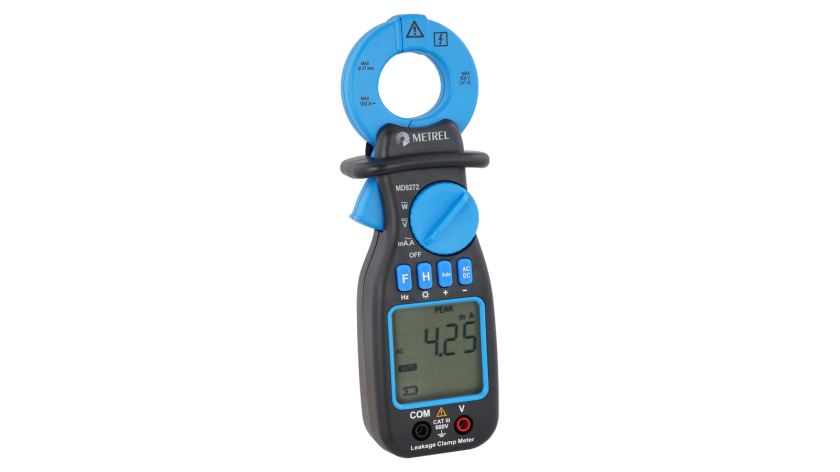

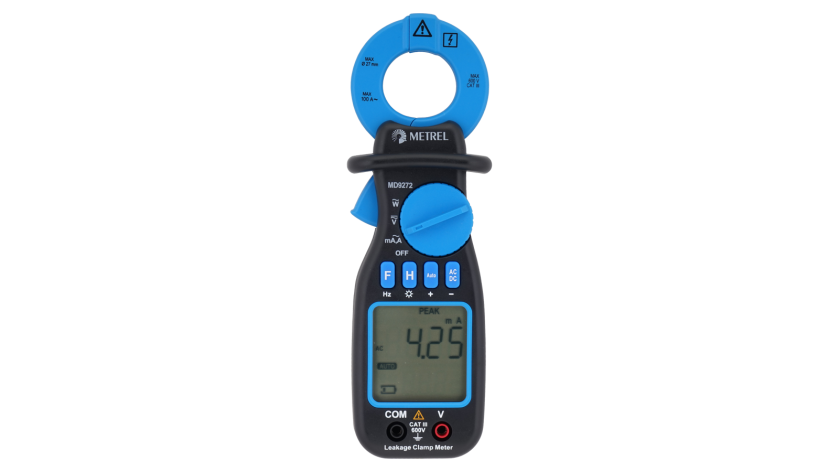

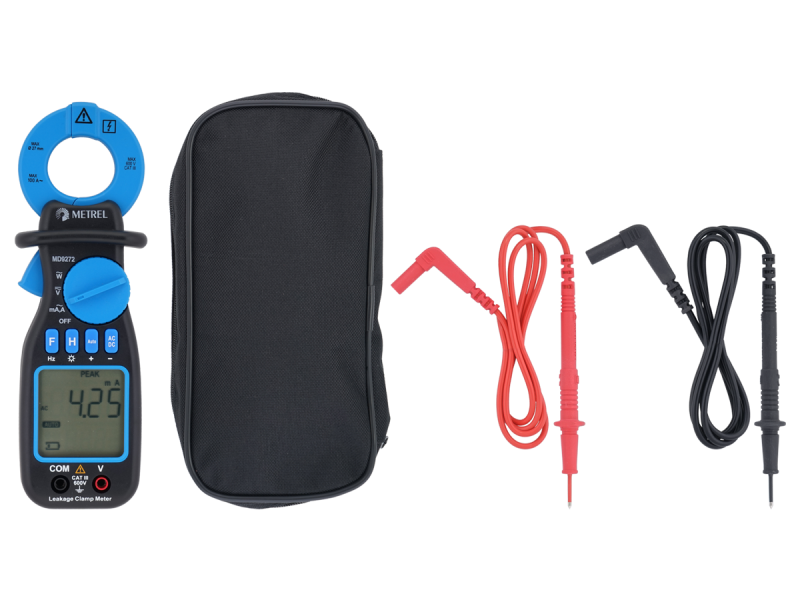

The MD 9272 is a unique earth leakage clamp meter. It not just has the ability to accurately read the TRMS AC leakage current of a system, it can also detect losses in the system and suggest possible reasons for the loss. The voltage, power, harmonic, power factor (PF), total harmonic distortion (THD) and crest factor measurements make this instrument suitable for any electrician and engineer.

Sets

Standards applied

Building LV Installation

  • EISinsp Competences: Low Voltage Electrical Installation Safety Inspection

Power quality

  • EN 50160 Voltage characteristics of electricity supplied by public distribution networks

Electrical switchboards safety

  • IEC/EN 62271-100 High-voltage switchgear and controlgear - Part 100: Alternating current circuit-breakers

Machine safety

  • IEC/EN 61557-14 Electrical safety in low voltage distribution systems up to 1 000 V a.c and 1 500 V d.c - Equipment for testing,measuring or monitoring of protective measures - Part 14: Equipment for testing the safety of electrical equipment for machinery

Portable appliances safety

  • PAT Competences: Portable Appliances Safety Testing
  • IET COP 5th Ed., In-service Inspection and Testing of Electrical Equipment

Electrical Vehicle Supply Equipment

  • IEC/EN 62955 Residual direct current detecting device (RDC-DD) to be used for mode 3 charging of electric vehicles

Medical electrical equipment

  • VDE 0751-1 (IEC/EN 62353) Medical electrical equipment - Recurrent test and test after repair of medical electrical equipment

Instrument safety towards user

  • Directive EMC 89/336/EE on electromagnetic compatibility
  • IEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use - series
  • IEC/EN 61010-1 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements
  • IEC/EN 61010-2-030 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-030: Particular requirements for equipment having testing or measuring circuits
  • IEC/EN 61010-2-032 Safety requirements for electrical equipment for measurement, control and laboratory use - Part 2-032: Particular requirements for hand-held and hand-manipulated current sensors for electrical test and measurement
  • IEC/EN 61010-2-033 Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-033: Particular requirements for hand-held multimeters and other meters for domestic and professional use, capable of measuring mains voltage

EMC safety

  • IEC/EN 61326 Electrical equipment for measurement, control and laboratory use - EMC requirements - series
  • IEC/EN 61326-1 Electrical equipment for measurement, control and laboratory use - EMC requirements - Part 1: General requirements

Properties

Measuring functions

  • TRMS AC voltage measurement;
  • TRMS AC current measurement;
  • Frequency measurement;
  • Power parameters measurement.

Key features

  • TRMS: accurate measurements on sinusoidal and non-sinusoidal signals.
  • Jaw size: 28 mm.
  • Shielded Jaw: shielded jaw allows the clamp meter to be used in the noisiest environments.
  • Accurate: readings of AC current with an accuracy of 0.8 % and a base resolution of 0.01 mA and voltage with an accuracy of 0.5 % and a base resolution of 0.1 V.
  • Power: measures various power parameters (active, reactive, apparent power, THD, PF, phase displacement).
  • Intelligent loss analysis: complex algorithms detect loss and allow determining possible reasons for current loss.
  • Harmonics: measures current or voltage harmonic components and a percentage value of a harmonic up to the 19th.
  • THD and PF: dual display allows readings to be displayed along with Total Harmonic Distortion (THD) or Power Factor (PF).
  • Peak value: the peak value of the waveform or crest factor can be displayed.
  • MAX/MIN/HOLD mode: displays maximum, minimum or average measured value.

Technical data

  • Dimensions (w x h x l): 60 x 43 x 190 mm
  • Mass (without accessories): 255 g

Specifications

Downloads

Type File Language Version Release Notes Type Size View Download
Datasheet MD 9272 Leakage Clamp TRMS Meter with Power Functions en 1.0 29.09.2016 pdf 644.07 KB
Manual MD 9272 Leakage Clamp TRMS Meter with Power Functions Multi-Language 2.1.3 29.09.2021 20 752 381 pdf 1.15 MB Login
DoC EU Declaration of Conformity Multi-Language 10.08.2021 QR code External link Unknown
