MI 3394 ST CE MultiTesterXA

Machine and switchboard testers

MI 3394 ST CE MultiTesterXA
MI 3394 ST CE MultiTesterXA

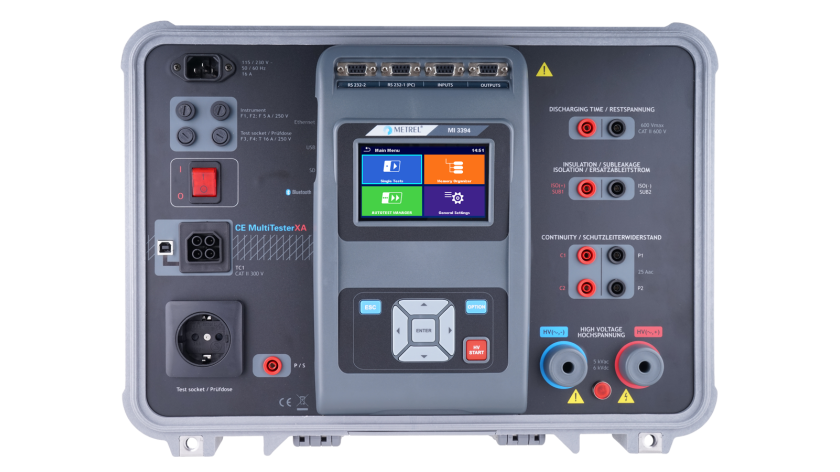

The STANDARD set is defined based on typical requirements for smaller production. The instrument’s intuitive touch screen display enables easy selection of required tests and test limits for fast test execution. Test limits are used for PASS/FAILL evaluation, results of the test can be stored under different memory structure levels. The set enables execution of all available single tests. Optionally, the user can also use barcode scanner for entering the equipment’s ID.
Select a set

Do you own this product?

Repair & Calibration
Technical support
Frequently asked questions
Documentation center
Metrel Academy

Select a set

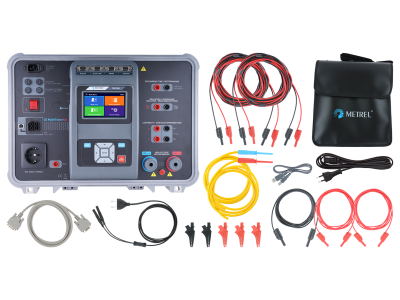

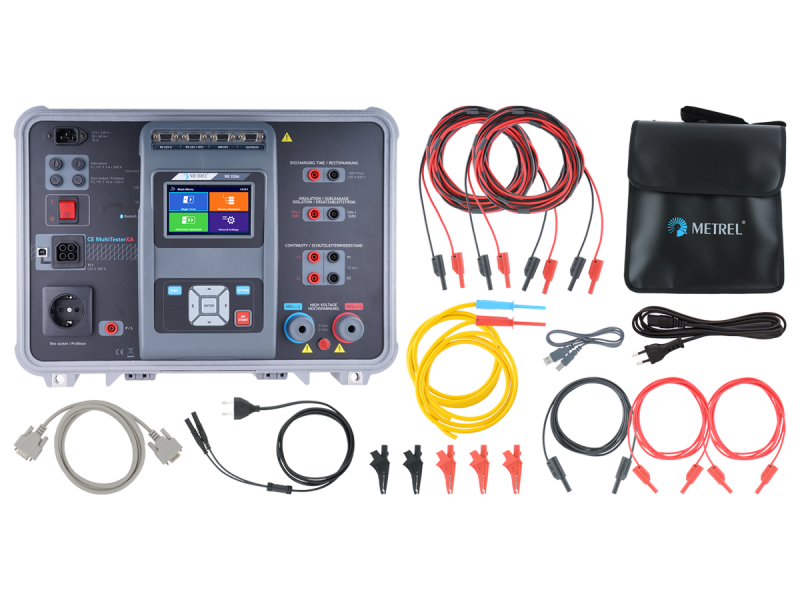

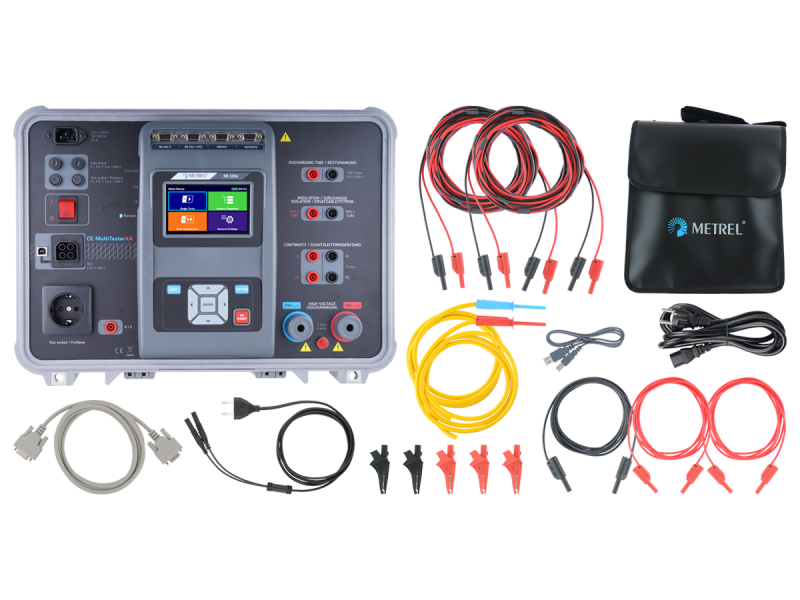

MI 3394 Standard set

  • Instrument MI 3394 CE MultiTesterXA
  • HV test lead 5m, without pistols, 2 pcs, S 2073
  • Continuity test lead, 2.5 m, 2 pcs
  • Continuity test lead, red, 1.5 m
  • Insulation test lead, red, 2.5 m
  • Insulation test lead, black, 2.5 m
  • Crocodile clip, black, 3 pcs
  • Crocodile clip, red, 2 pcs
  • Discharge time cable
  • Mains cable
  • Bag for accessories
  • Calibration certificate
  • RS 232 cable
  • USB cable
  • CD with instruction manual (full version)
  • Metrel ES Manager BASIC licence*
*Metrel ES Manager can be downloaded free of charge from Metrel Web server.
Add to enquiry
Optional accessories

Videos

Promotional

Demonstration

Standards applied

Building LV Installation

  • IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - series
  • IEC/EN 61557 Electrical safety in low voltage distribution systems up to 1 000 V AC and 1 500 V DC - Equipment for testing, measuring or monitoring of protective measures - relevant parts

Electrical switchboards safety

  • ESB Competences: Electrical Switchboards Safety Testing
  • IEC/EN 61439-1 Low-voltage switchgear and controlgear assemblies - Part 1: General rules

Machine safety

  • MST Competences: Machines Electrical Safety Testing
  • IEC/EN 50191 Erection and operation of electrical test equipment
  • IEC/EN 60950 Information technology equipment – Safety

Portable appliances safety

  • PAT Competences: Portable Appliances Safety Testing
  • EN 50699 Recurrent Test of Electrical Equipment
  • EN 50678 General procedure for verifying the effectiveness of the protective measures of electrical equipment after repair
  • IEC/EN 60335-1 Household and similar electrical appliances - Safety
  • IEC/EN 60598-1 Luminaires - Part 1: General requirements and tests
  • VDE 0701 Inspection after repair, modification of electrical appliances - periodic
  • VDE 0702 Inspection on electrical appliances - general requirements for electrical safety
  • IET COP 5th Ed., In-service Inspection and Testing of Electrical Equipment

Instrument safety towards user

  • Directive EMC 89/336/EE on electromagnetic compatibility
  • IEC/EN 61010-031 Amendment 1 - Safety requirements for electrical equipment for measurement, control and laboratory use - Part 031: Safety requirements for hand-held and hand-manipulated probe assemblies for electrical test and measurement

Properties

Measuring functions

  • High Voltage, programmed (AC/DC);
  • High Voltage, burn test (optional A 1560);
  • Continuity tests;
  • Insulation resistance measurement;
  • Substitute leakage current;
  • Differential leakage current;
  • Touch leakage current;
  • PE-leakage current;
  • Discharge time;
  • Functional test (power P/S/Q, voltage, current, cos fi, frequency, ThdU, ThdI,PF).

Key features

  • Creation of structure with dedicated tests.
  • PASS/FAIL evaluation of test results.
  • Execution of all single tests.
  • Programmable High Voltage (AC + DC) test.
  • 4-wire continuity test.

Technical data

  • Dimensions (w x h x l): 43,5 x 29,2 x 15,5 cm
  • Mass (without accessories): 17 kg

Applications

Preventative maintenance

  • Safety of portable appliances

Specifications


Print

Downloads

Datasheet Language Version Release Notes Type Size Download
MI 3394 CE MultiTesterXA en 2021 30.08.2021 Single leaflets pdf 1.11 MB
MI 3394 CE MultiTesterXA en 2017 30.08.2021 Brochure pdf 8.54 MB
SW 1203 Metrel SDK en 2022 10.11.2022 pdf 816.54 KB
Manual Language Version Release Notes Type Size Download
MI 3394 CE MultiTesterXA en 3.11.23 06.10.2023 20 752 432 pdf 4.89 MB Login
MI 3394 CE MultiTesterXS Multi-Language 2023 20.01.2023 zip 3.86 MB Login
DoC Language Version Release Notes Type Size Download
EU Declaration of Conformity Multi-Language 06.07.2023 QR code External link Unknown
PC Software Language Version Release Notes Type Size Download
SW 1201 Metrel Electrical Safety Manager (MESM) Multi-Language 1.23.0.1115 29.02.2024 Readme zip 369.58 MB Login
Android Language Version Release Notes Type Size Download
SW 1304 aMESM Android en 04.01.2021 QR code External link Unknown
Firmware Language Version Release Notes Type Size Download
MI 3394 EU CE MultiTesterXA Multi-Language 1.63.41.81220e9f 23.11.2023 Readme zip 16.62 MB Login
Auto Sequences Language Version Release Notes Type Size Download
Metrel AUTO SEQUENCEs en 2021 11.03.2021 MI 3394 MACHINE zip 62.38 KB Login
